SGM - Q8

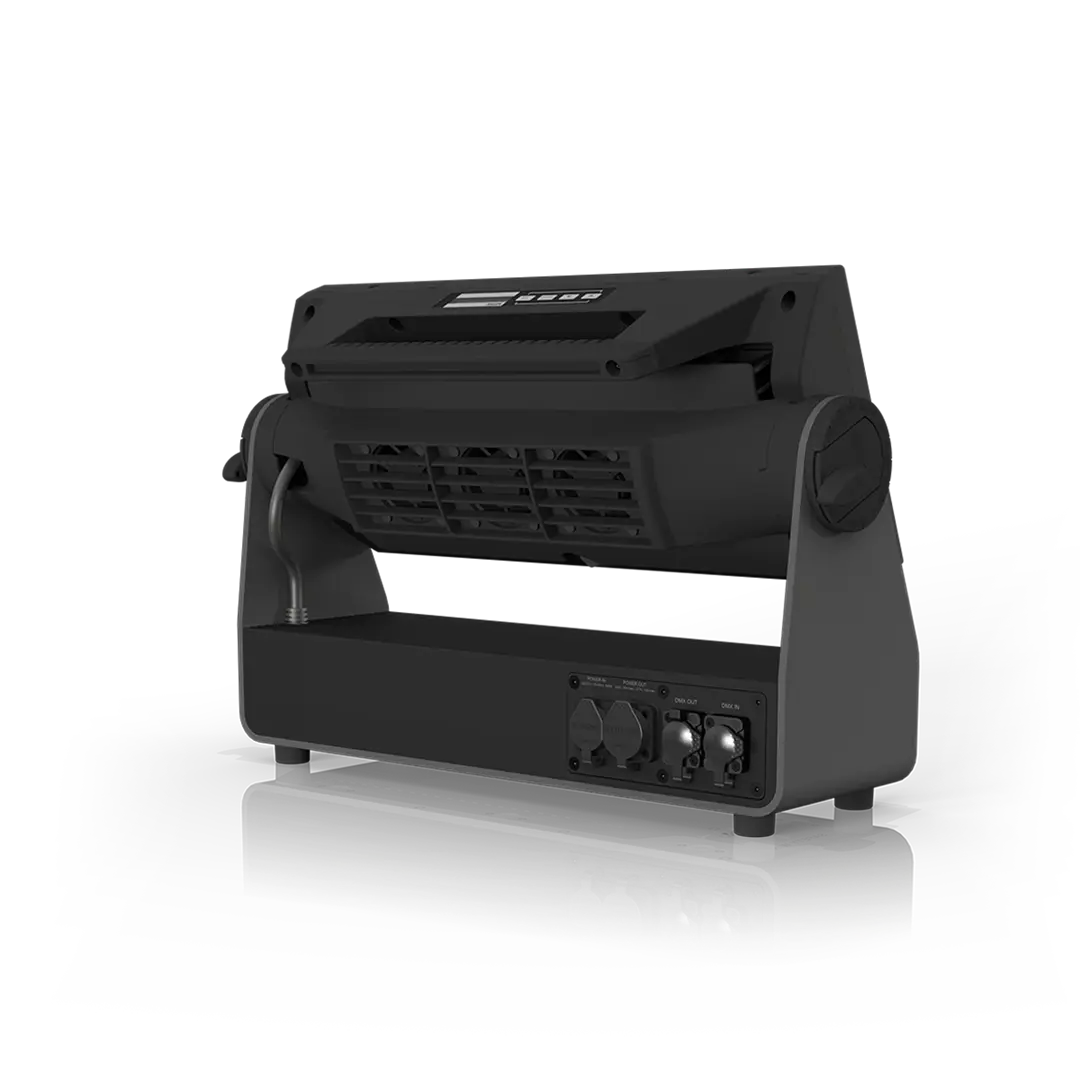

The Q-8 combines the compact size and low power consumption of the Q-7, the advanced industrial design of the Q-10, and the powerful strobe-blinder of the G-7 BeaSt in 2 separated arrays. This high color quality DualSource luminaire features RGBW mixing, pixel-mapping control, 110º and 75° spread angles, and all the benefits of magnetic easy-fit filter frames. It is a waterproof key or fill light for on location filming, a strobe effect for touring, and a direct view fixture in a lightweight and robust design: the Q-8 the definitive mid-size flood/blinder.

Specification

Optical Data

• LED expected lifetime : 20,000 hours (Strobe blinders)  |  50,000 hours (RGBW panel)
• Lightsource : 880 x RGB LEDs, 880 x W LEDs (5,700K), 52 x W LEDs (7,000K)
• Native lens options : 110°
• Optional filters :
  • Extra medium angle soft diffusion, Q, external
  • Extra wide angle soft diffusion, Q, external
  • Elliptical horizontal effect, Q, external
  • Elliptical vertical effect, Q, external

Photometric

• Average CQS (CTC) : 92
• Average CRI (CTC) : 90
• Average RF / TM-30-15 (CTC) : 89
• Average TLCI (CTC) : 90
• Color temperature : 7000K (Strobe blinders)  |  5700K (RGBW panel, calibrated)
• Efficacy : 112 lm/W
• Light output all LEDs on : 53849 lm
• Light output blue : 1644 lm
• Light output green : 8660 lm
• Light output red : 4162 lm
• Lumen per kilogram : 3989 lm / Kg
• Lux @ 10m : 346 lux
• Lux @ 5m : 1386 lux
• Max. CRI @ 5600K : 96
• Max. TLCI @ 5600K : 95
• Maximum beam angle : 107 °
• Native beam angle(s) : 107° (panel with 110° lens)  |  75° (Strobe blinders)
• Native field angle(s) 140° (panel with 110° lens)  |  119° (strobe blinders)

Physical

• Effective Projected Area : 2.15 Square ft
• IK rating : IK06
• IP class : IP66
• Lens material : Tempered glass front
• Material :
  • Aluminium
  • PC/ASA
  • Rubber
  • Steel
• Net dimensions inches : 20.5 x 12.6 x 6.5 inches
• Net weight : 13.5 kg (29.8 lbs)

Features

• Addressable pixels : 4 (Panel) + 4 (Strobe Blinders)
• Color calibration : SGM proprietary, full color calibration
• Dehumidifier : Head
• Dimming : 12 DMX-controllable curves (smooth fade in / fast response / low-end extended range)
• Emulation mode / effect :
  • Tungsten response emulation
  • Color Filter Emulation
• Filters / Magnetic easy-fit spread angle filter frames
• LED panel / 8 individually controllable segments
• Other /
  • Studio DMX mode(s)
  • Versapath color engine
  • Independent control of Panel and Strobe Blinders
  • LED frequency control over DMX + High Speed mode (up to 2000 fps)
  • Strobe Ultra-high-speed strobe effects
  • Dualsource Strobe Blinder
  • Dual color RGBW strobe
  • Intensity, Duration, Rate and FX control channels per lightsource (3)
  • Pixel strobe feature (up to 8 segments)
• Tilt : 220°
• Tilt locking system : Locking system with angle indicator
• View angle : 110°

Electrical

• Electrical protection : Overload protection with automatic recover
• Input voltage, absolute max. rating : 100 – 305 VAC; 50 / 60 Hz
• Input voltage, nominal : 115 – 277 VAC; 50 / 60 Hz
• Max inrush current : 230VAC 70 A
• Max power consumption : 630 W
• Max power thru @ 100 V : 13 A
• Max power thru @ 230 V : 13 A
• Power factor : 0.96 PF (230 V)
• Power Supply Unit : Inbuilt IP 67 Auto-ranging electronic switch-mode
• Standby power consumption : 8 W

Programming and Control

• 16-bit control : Dimmer, Red, Green, Blue, White, pixels
• Cabled DMX : 5 pin XLR input/output
• DMX channels : 10, 12, 27, 34, 36, 41, 52
• DMX modes : 8
• Protocol :
  • CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
  • USITT DMX512A
  • RDM ANSI E1.20
• Setting and addressing :
  • OLED graphical display / 4 buttons
  • RDM ANSI E1.20
• Standalone mode :
  • Quick Color
  • 3 programs with up to 24 scenes
• Wireless DMX : Lumen Radio with RDM

Connections

• DMX data in/out :
  • IP67 XLR 5-pin connector, Female
  • IP67 XLR 5-pin connector, Male
• Power : Power input connector & link-thru

Installation

• Mounting point : 3 x two quarter-turn locking points for two or three Omega Brackets
• Orientation : Any
• Rigging possibilities : Hanging (Omega Bracket included) or ceiling/wall mount (optional)
• Safety features :
  • Bottom mount for safety wire
  • Minimum distance to combustible materials: 0.3 meter (11 in).

Thermal

• Cooling : Active, Forced Air, Temperature-regulated
• Humidity (max.) : 98 %
• Temperature range, operating max : 50 °C
• Temperature range, operating min : -40 °C
• Thermal protection : Automatic overtemperature protection
• Total heat dissipation, max power : 2149.6 BTU per hour
• Total heat dissipation, standby : 27.3 BTU per hour

Conforms To

• CE – 2014/30/EU: EMC Directive EN 55103-2
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 55032
• CE – 2014/35/EU: Low Voltage Directive EN 60598-1
  • EN 60598-2-17
  • EN 62471
  • EN 60529
• RoHS2 Directive : 2011/65/EU
• UL : UL Std. 1573

Certified To

• CSA : CSA Std. C22.2 No. 166
