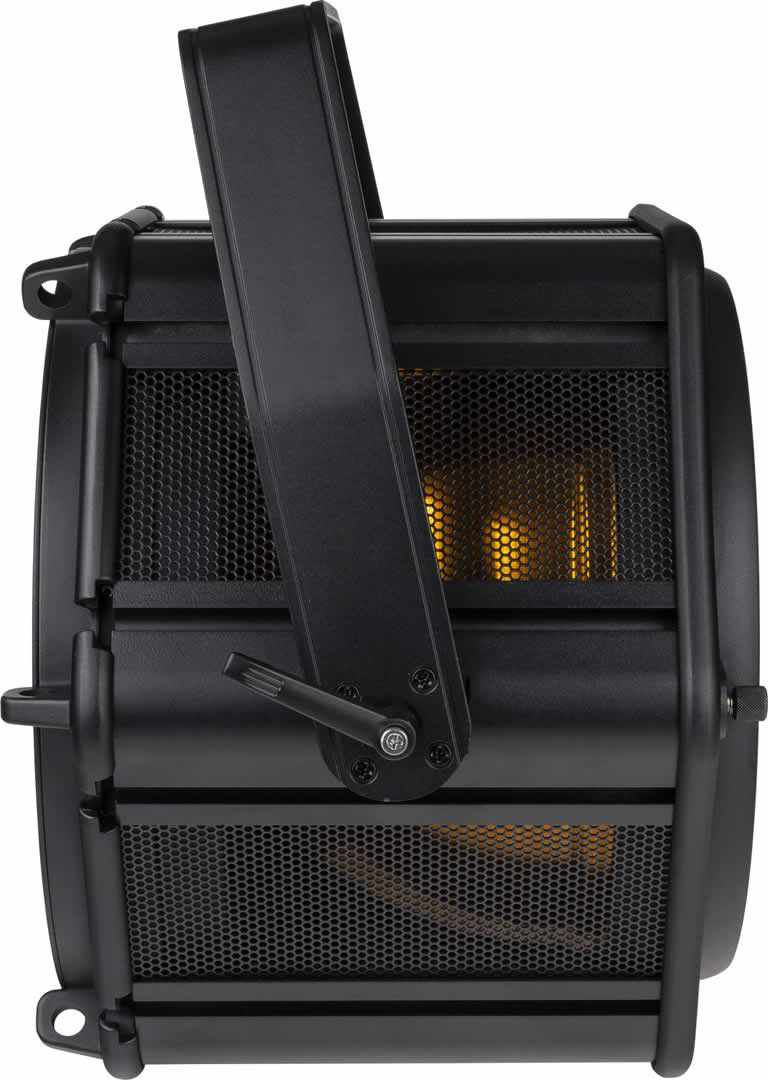

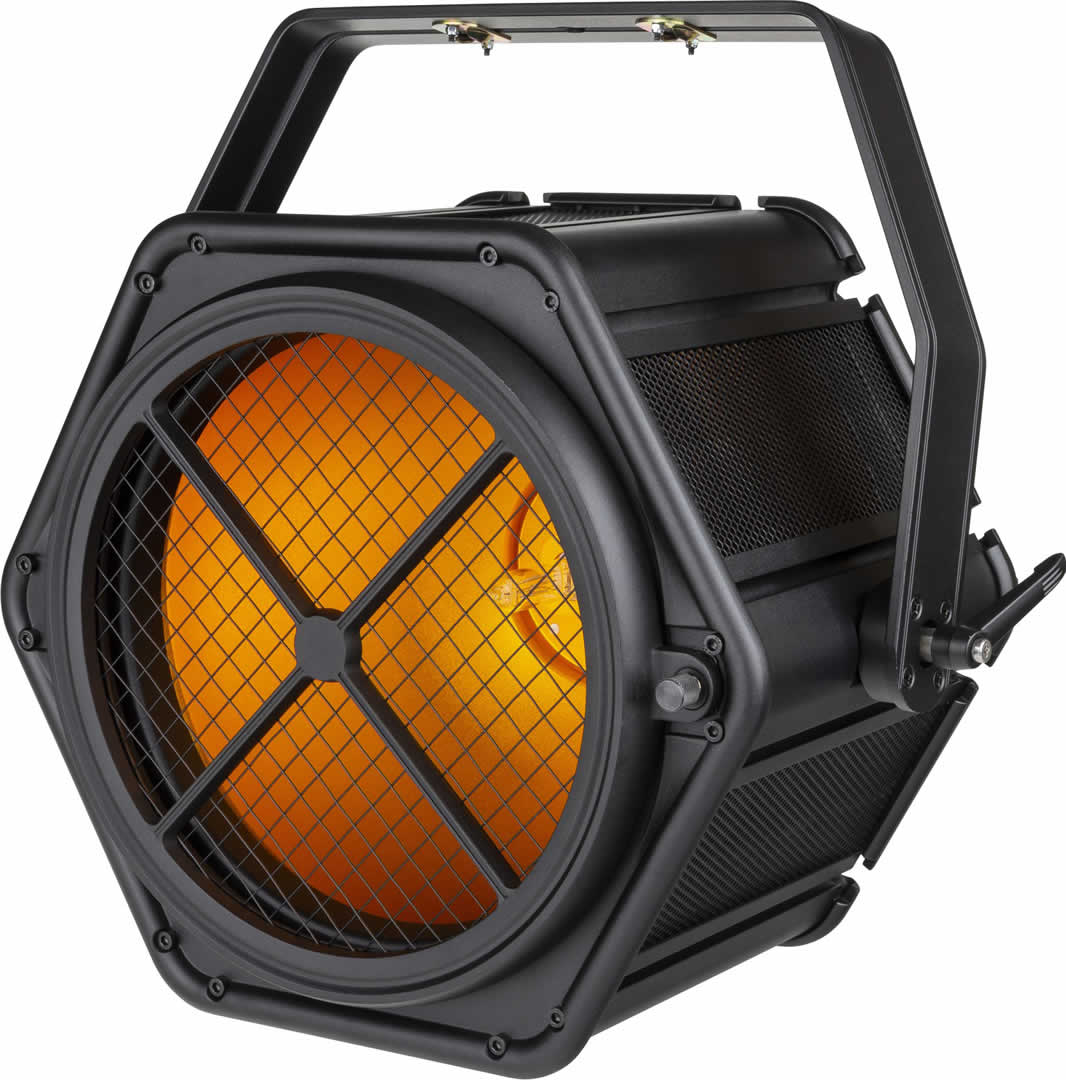

Briteq - BT-Retro

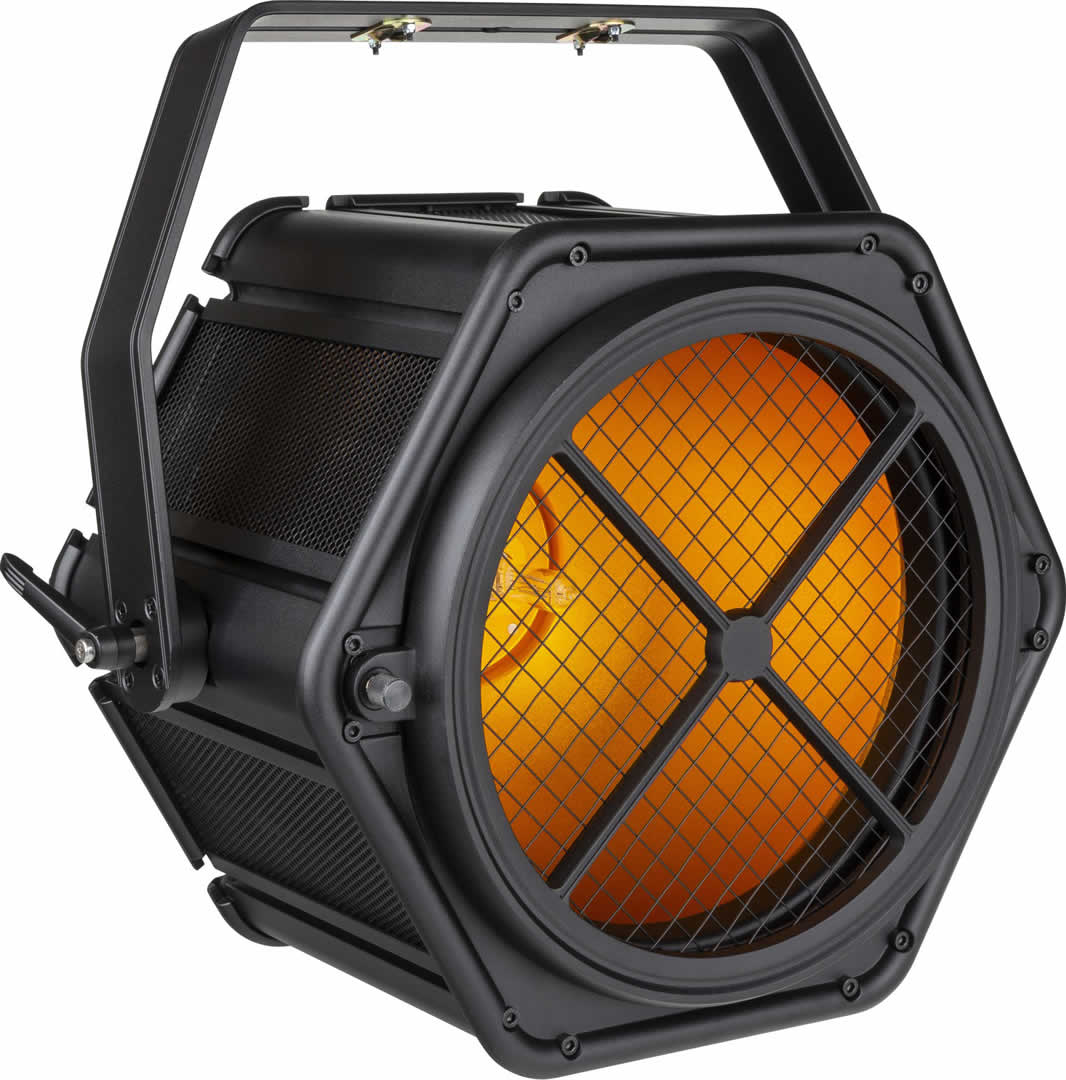

This attractive RETRO-STYLE PROJECTOR is the perfect eyecatcher for many applications, including podiums, TV-studios, discotheques, lounges, and many more … !

• This attractive RETRO-STYLE PROJECTOR is the perfect eyecatcher for many applications, including podiums, TV-studios, discotheques, lounges, and many more … !

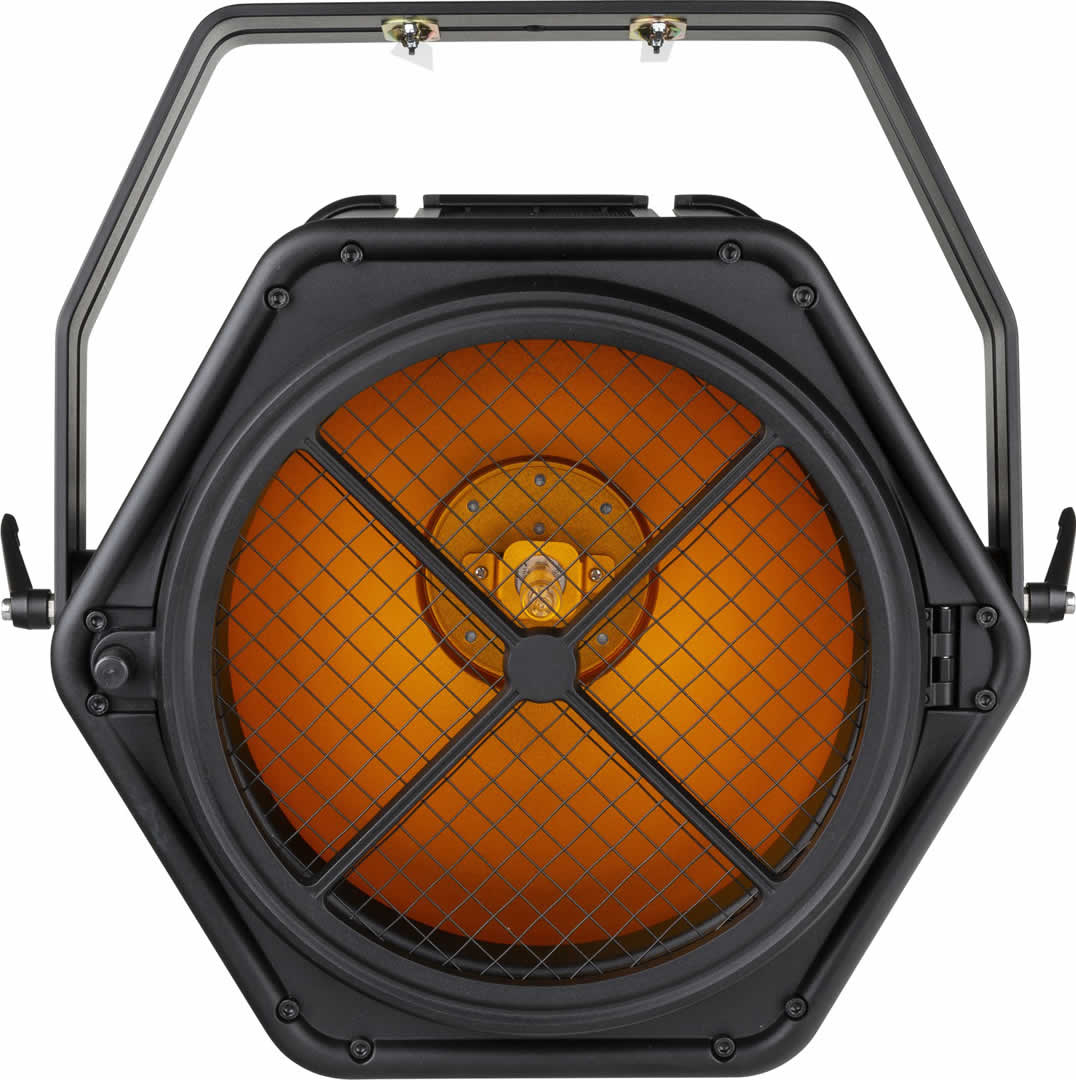

• The combination of its gold colored reflector and HPL-575 halogen lamp produces a pleasant warm light.

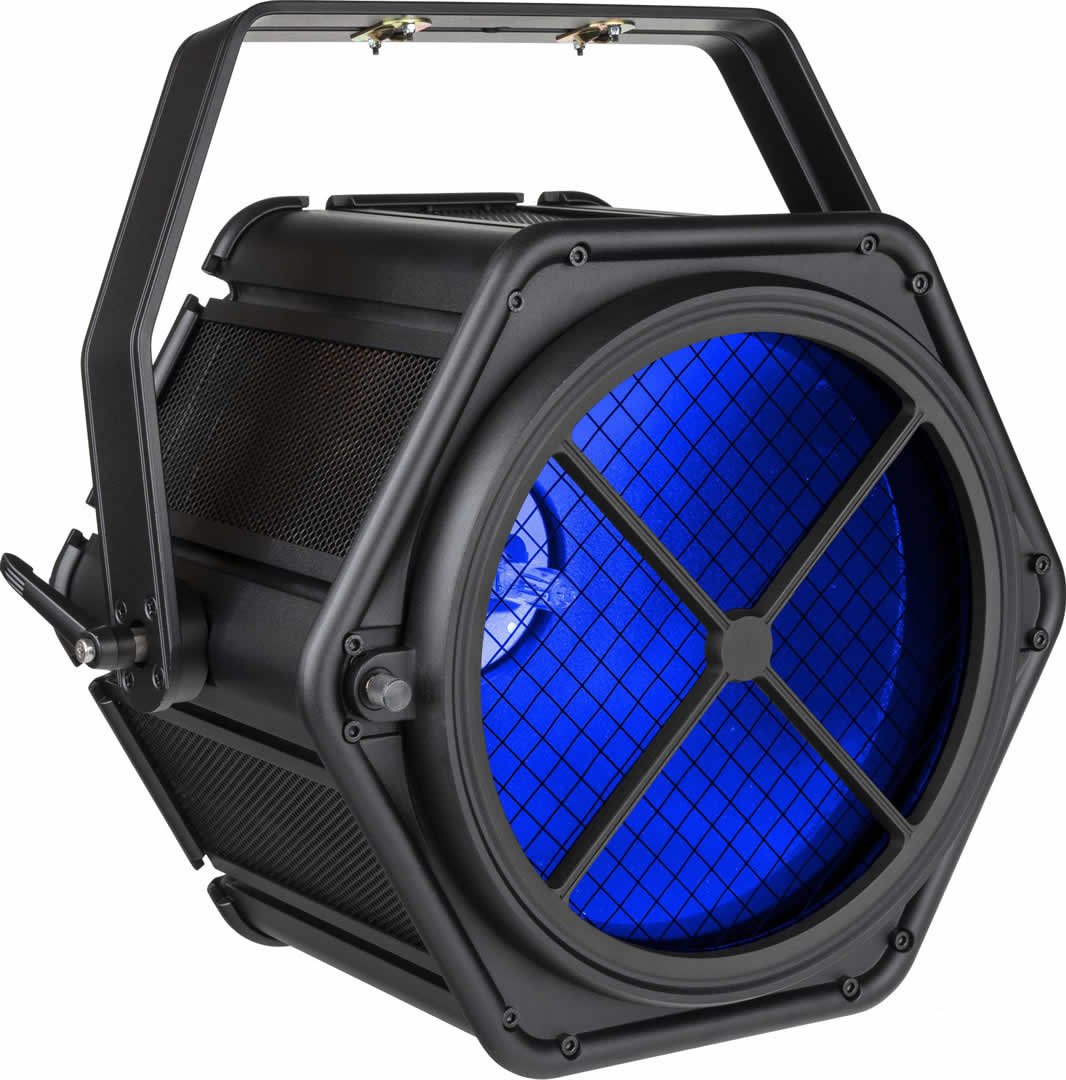

• The integrated high power RGB-leds (48 x 3,5W RGB) can light up the reflector to produce amazing extra effects!
• Several units can be fixed together by use of the optional BT-RETRO coupling adapter (order code 05519)
• Integrated DMX-control for the halogen lamp dimmer & RGB-effects with different channel modes.
• Prepared for wireless DMX-control with our optional “WTR-DMX DONGLE”.
• Can also be used in Standalone or master/slave mode, without the need for a DMX-controller.
• RDM-functionality for easy remote setup: DMX addressing, channel mode, …
• The matrix LCD-display assures easy navigation in the different setup menus
• TV-Studio ready: passive cooling system and flicker free 1200Hz LED refresh rate.
• Four dimmer curves: linear, square, inverse square, S-curve
• In case of DMX failure you can choose between Standalone, blackout and freeze mode.
• Lock function to avoid unwanted altering of the settings.
• White balance adjustment to perfectly match the colors of several projectors.
• Default factory settings + user settings can be saved/loaded.

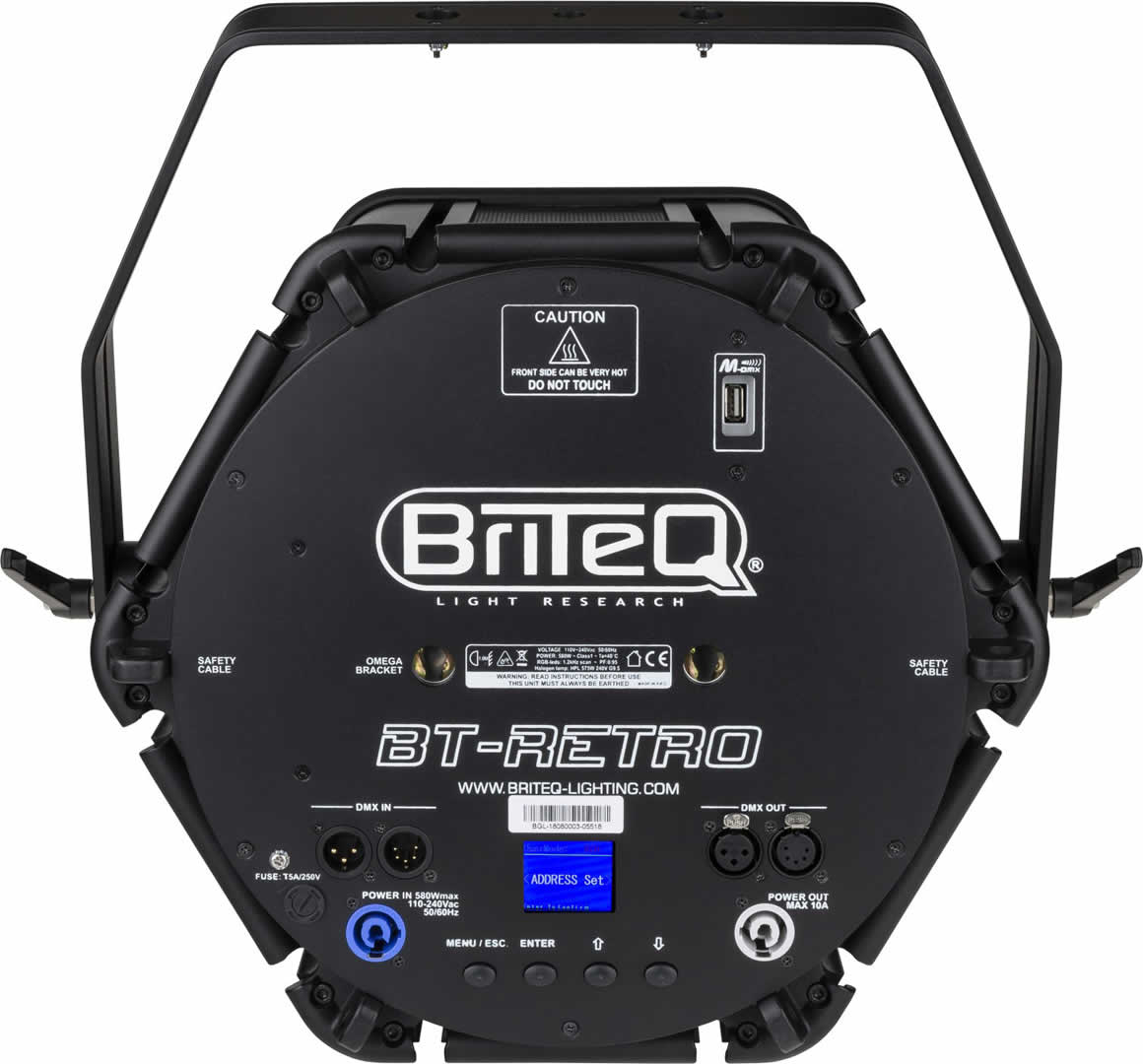

• Neutrik PowerCON in/outputs: easy daisy chaining of several units.
• Both 3pin & 5pin DMX in/outputs for maximum compatibility
• Prepared for use with omega brackets for fast installation
• Uses an HPL-575W lamp, G9.5 base with heat sink. (not included)
• An optional flight case for 2 units is available

General

• Application : Stage & Rental, Theatre
• Powerinput : AC 100 – 240V, 50/60Hz
• Energy Label : No
• Power consumption W : 480
• Color : black
• Display : LCD
• Fixation : optional omega bracket
• IP rating : indoor

Control

• manual : Yes
• Master/Slave : Yes
• SMART-DMX : No
• Standalone : fixed
• programmable : No
• upgradable software : Yes
• maximum DMX channels : 7

Light

• lamp socket : G9.5
• lamp : LED
• colors : Red, Green, Blue, Warm white, RGB
• mix colors : Yes
• focus : No
• zoom : No
• iris : No
• min. refresh rate (kHz) : No
• max. refresh rate (kHz) : No

Connections

• input : 3 pin XLR, 5 pin XLR, powercon, usb, Wireless DMX
• output : 3 pin XLR, 5 pin XLR, powercon, usb, Wireless DMX
