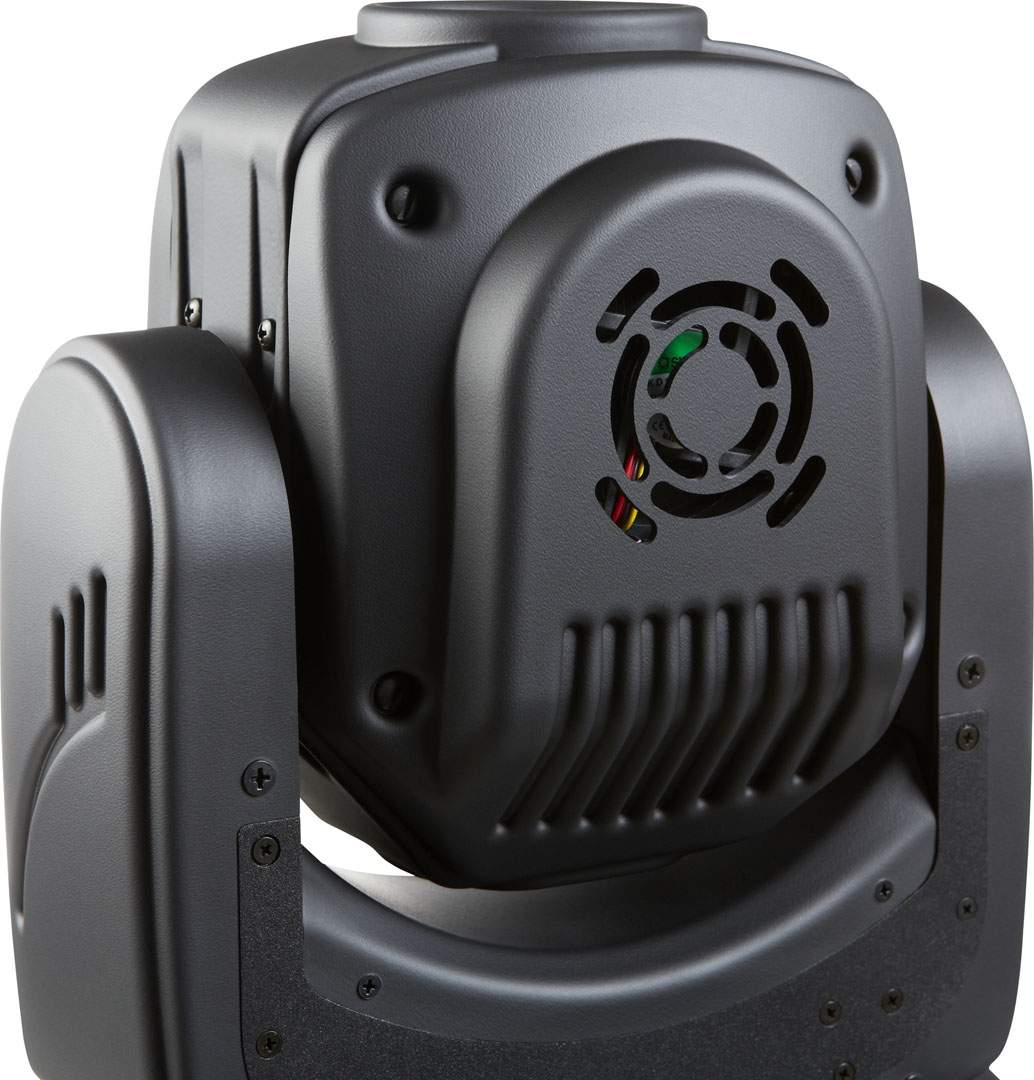

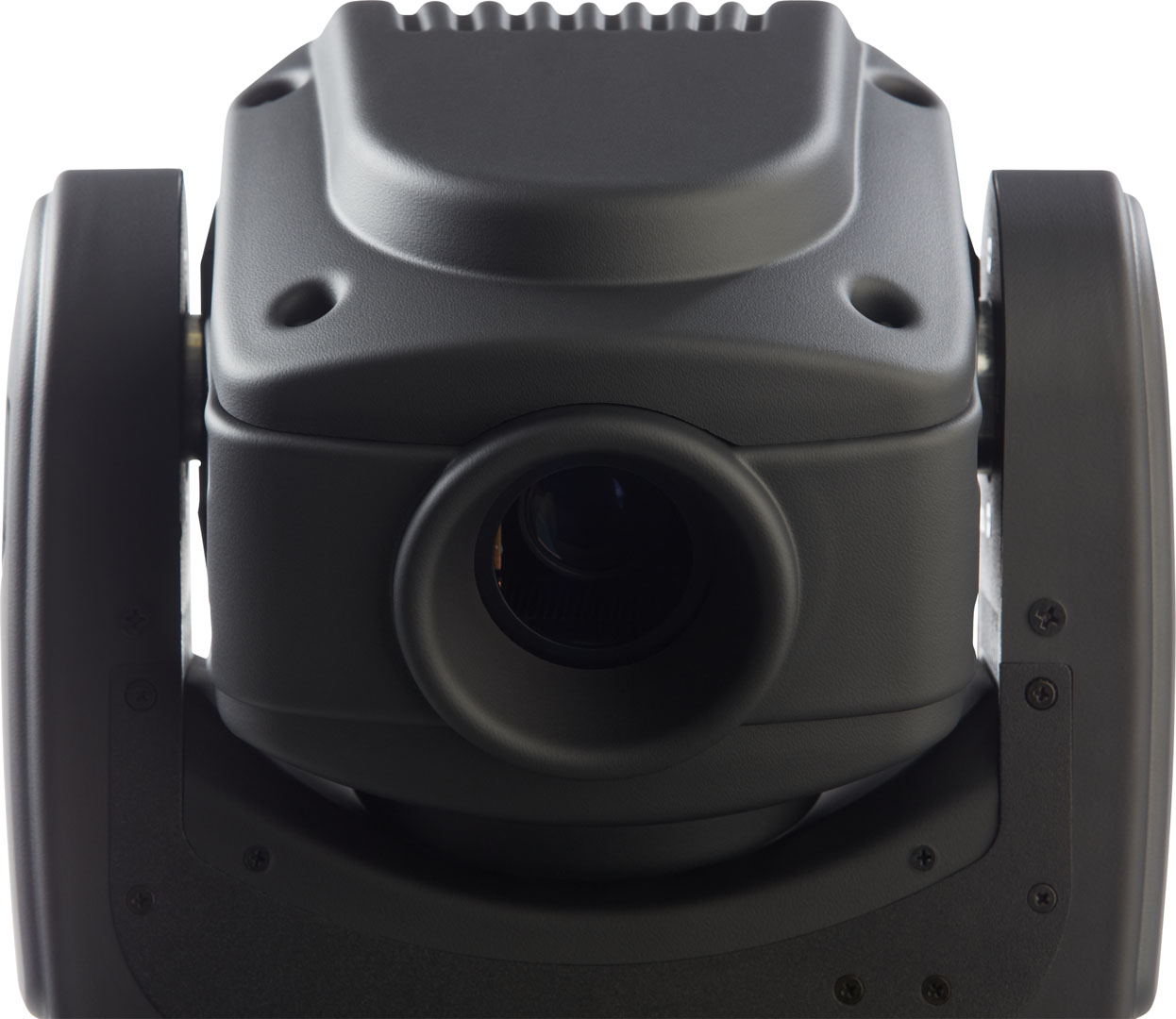

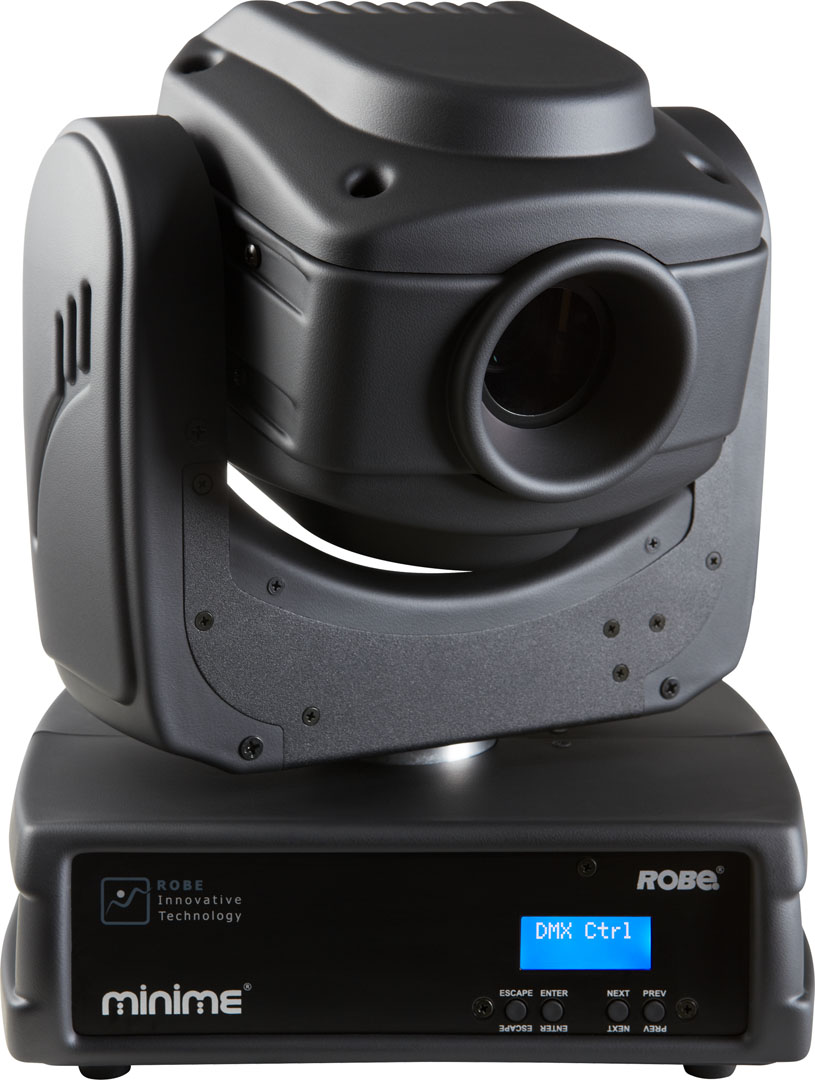

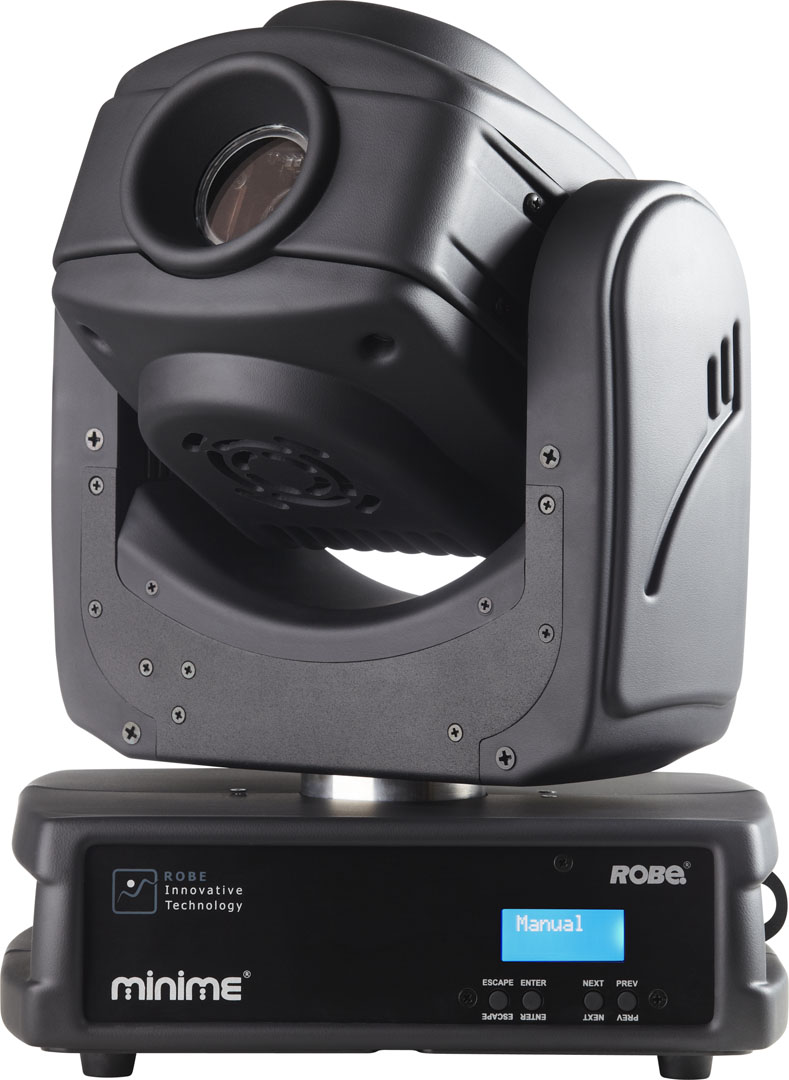

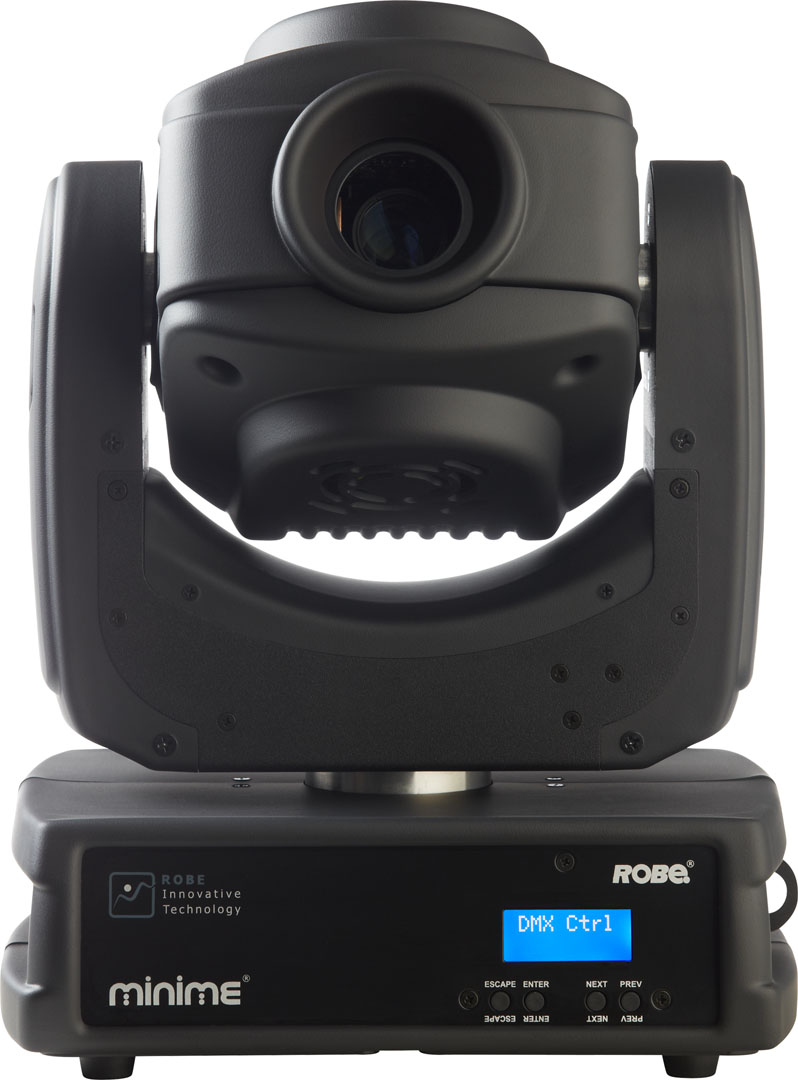

Robe - MiniMe
Projecteur asservi à LED 50W, 16°
Propriétés techniques
- Dimensions unitaires : 317 x 204 x 480 mm
- Poids unitaire : 11,8 kg
- Consommation électrique : 260 W
- Dimensions en flight-case (x8) : … x … x … cm
- Poids en flight-case (x8) : … kg
Documents à télécharger
Détails produit
SOURCE
- Light source type: RGB LED device
- Lifetime: 20.000 hours
PROJECTOR SPECIFICATION
- Light output: Comparable with 2500 ANSI lumen lamp projectors
- Aspect ratio: 16:10
- Resolution: WXGA (1280×800)
- Beam angle: 16°
- Throw ratio: 3.5:1
- Contrast ratio: 700:1
- Display colours: 16.7 million colours
DYNAMIC EFFECTS
- Colour mixing mode RGB/CMY
- Colour effect wheel with wide range of in-built effects (colour transitionsand cross-fades, multiple colour images, rainbow effects)
- Upload and projection of custom artwork, still photographs and videos from USB memory stick
- Digital gobo wheel with gobos, images and videos
- Gobo rotation and indexing
- Video speed control
- Live input via external High Defenition Multimedia Interface
- Effect wheel with wide range of graphic effects (Kaleidoscopic effect, fish eye, iris, zoom, swirl effect, pixelation effect, cross-stitching, posterization, and more)
- Effect speed control
- Horizontal/Vertical keystoning
- Iris: Digital
- Motorized focus
- Pre-programmed random strobe & pulse effects
- Dimmer: 0 – 100%
CONTROL AND PROGRAMMING
- Setting & Addressing: two-row LCD display & 4 control buttons
- Protocols: USITT DMX-512, RDM, ArtNet, sACN
- Wireless CRMX™ technology from Lumen Radio: On request
- DMX Protocol modes: 1
- Control channels: 24
- Stand-alone operation
MOVEMENT
- Pan movement: 450°
- Tilt movement: 270°
- Controllable speed of Pan/Tilt movement
HARDWARE
- Raspberry Pi Model B 512 MB RAM
OPERATION SYSTEM
- Linux OS
GRAPHIC ENGINE?
THERMAL SPECIFICATION
- Maximum ambient temperature: 40°C (104°F)
- Maximum surface temperature: 60°C (140°F)
- Minimum operating temperature: 0°C (32°F)
ELECTRICAL SPECIFICATION AND CONNECTIONS
- Power supply: Electronic auto-ranging
- Input voltage range: 100-240 V, 50/60 Hz
- Power consumption: 90 W at 230 V / 50Hz
- Power in/out connector: Neutrik powerCON in/out
- DMX and RDM data in/out: Locking 5-pin XLR
- Ethernet port in/out: RJ45
- 2x USB 2.0 connector (series A)
- External video input 1x High Definition Multimedia Interface (HDMI)
APPROVALS
- CE Compliant
- cETLus Compliant
RIGGING
- Mounting points: 1 pair of ¼-turn locks
- 1 x Omega bracket with ¼-turn quick locks
- Universal operating position
- Safety cable attachment point
