MARTIN - Rush MH5 Profile

Source: 1 LED blanche de 75 Watt
1 roue de de 7 gobos rotatifs + ouvert
1 roue de 8 gobos fixes thomann + ouvert
2 roues de 7 couleurs + ouvert
Prisme à 3 facettes
Focalisation motorisée
Modes de fonctionnement: DMX (16 canaux), automatique, musique
Entrées et sorties DMX sur XLR 3 et 5 broches
Alimentation: AC 100/240 V, 50/60 Hz
Consommation: 165 Watt
Entrée et sortie Power Twist
Câble électrique de 1,5 m sans prise secteur

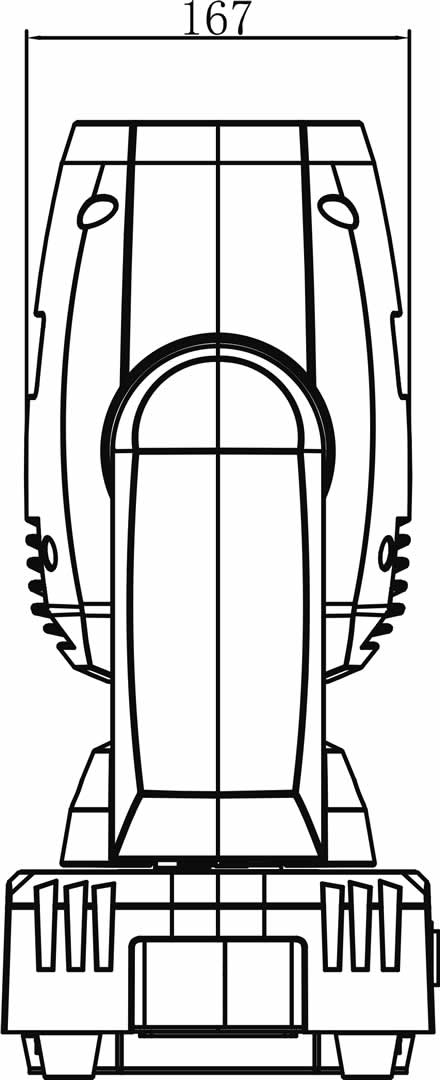

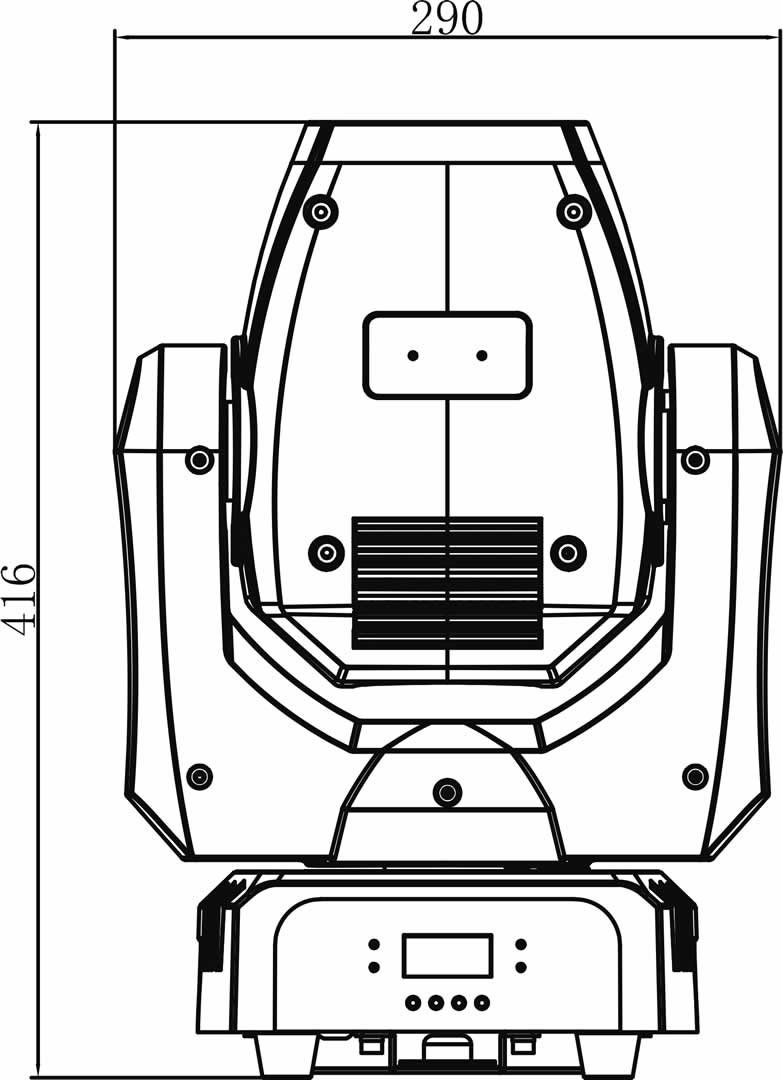

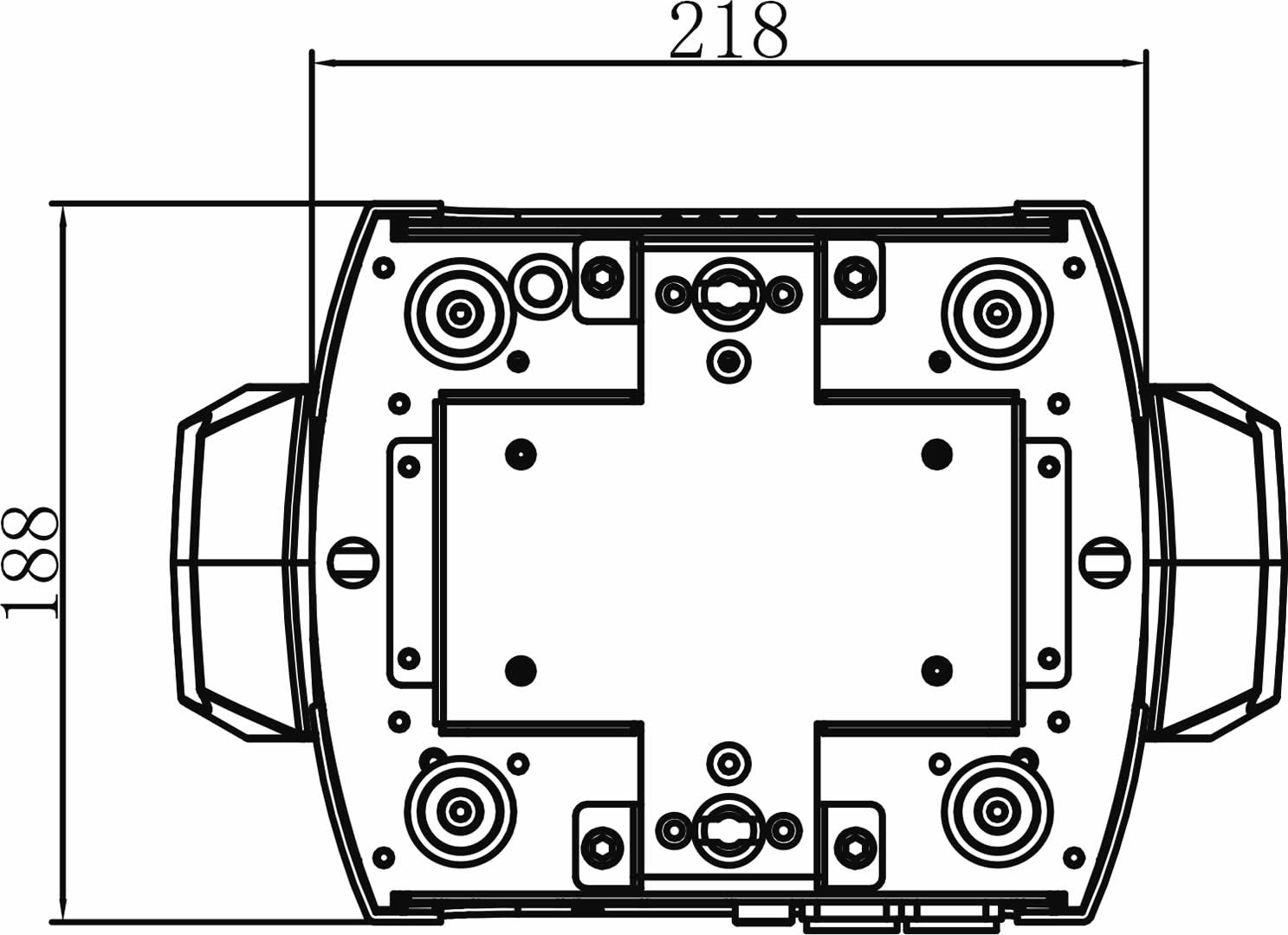

Dimensions: 290 x thomann 187 x 416 mm
Poids: 9 kg

This compact and bright LED profile moving head with efficient optics punches out a variety of effects and colors. With two color wheels, two gobo wheels and rotating prism the MH 5 Profile offers full effect in a super compact housing, making it perfect for DJs, bands, clubs, bars, cruise ships and installations where small footprint and low weight is critical.FEATURES

Compact 75 W LED profile moving head
Super bright – efficient optics
Rotating gobo wheel
Fixed gobo wheel
2 x color wheels
Electronic dimming and strobe
3-facet prism

TECH SPECS Dynamic EffectsColor wheel 1: 8 colors plus open, rotation with variable direction and speedColor wheel 2: 8 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speedRotating gobo wheel: 6 gobos plus open, wheel rotation and gobo rotationStatic gobo wheel: 7 gobos plus open, wheel rotation and shakeElectronic ‘shutter’ effect: Strobe effect, pulse effects, instant open and blackoutPrism: Indexing and rotation with variable direction and speedFocus: MotorizedElectronic dimming: 0 – 100%, four dimming curve optionsPan: 540°Tilt: 270°Pan and tilt speed: Adjustable via onboard control panel and DMXControl and ProgrammingControl options: DMX, stand-aloneDMX channels: 16Stand-alone trigger options: Music trig, auto trigStand-alone sequences: 4 pre-programmed showsMusic trig sensitivity: AdjustableSetting and addressing: Control panel with backlit LCD displayProtocol: USITT DMX512/1990OpticsBeam angle: 16° (one-tenth peak), 14° (half-peak)Light source: 75 W LED engineMinimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under manufacturer’s test conditionsConstructionColor: BlackHousing: High-impact flame-retardant thermoplasticProtection rating: IP20GobosRotating gobo size: 24 mm (0.94 in.)Rotating gobo image size: 20 mm (0.79 in.)InstallationMounting: One quarter-turn bracket for rigging clampLocation: Indoor use only, must be fastened to surface or structureOrientation: AnyConnectionsAC power in/thru: Neutrik PowerConDMX data in/out: 3-pin and 5-pin locking XLRElectricalAC power: 100-240 V nominal, 50/60 HzTypical total power consumption: 165 WPower consumption figures are typical, not maximum. Allow for +/-10% variation.Typical Power and Current100 V, 60 Hz: 1.7 A, 165 W230 V, 50 Hz: 0.8 A, 157 WMeasurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.ThermalCooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 565 BTU/hr.ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR Part 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241
