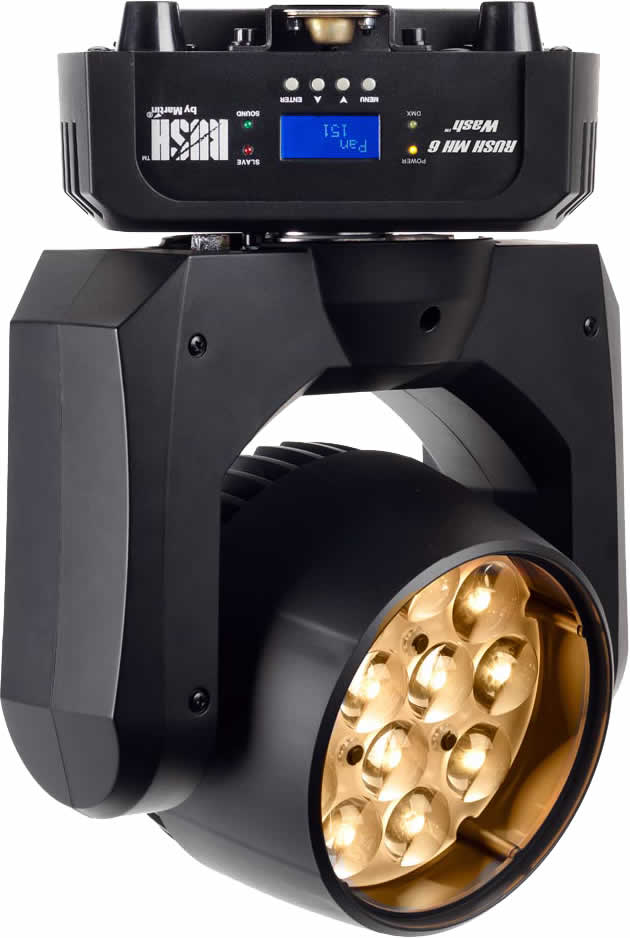

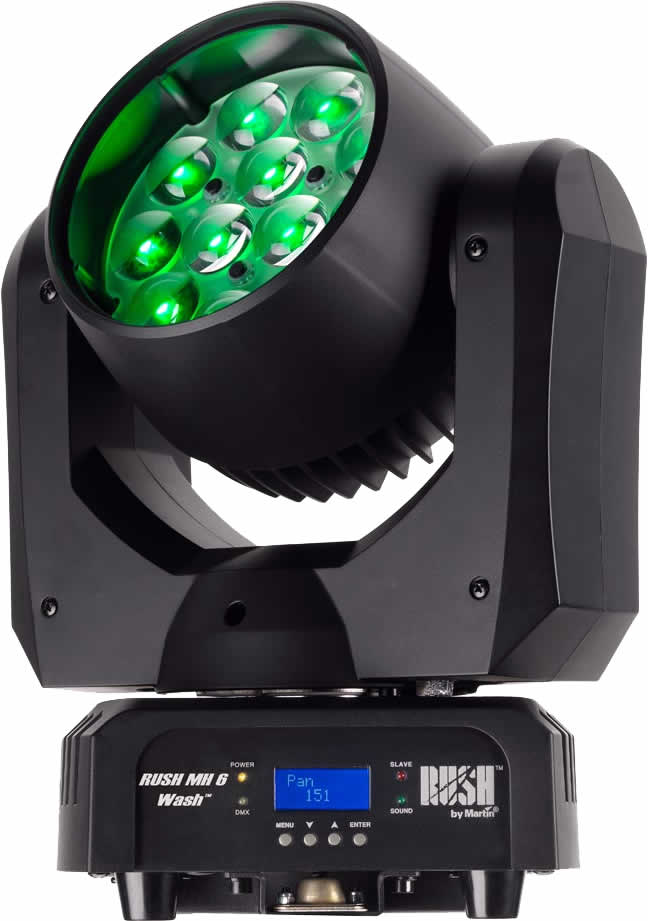

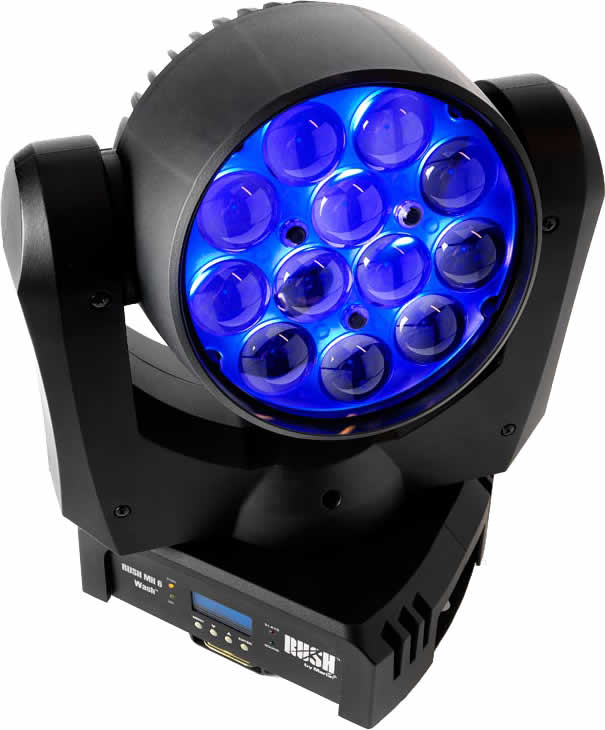

MARTIN - Rush MH6 Wash

The RUSH MH 6 Wash is an exciting adaption of the hugely popular RUSH PAR 2 RGBW Zoom, using the same LED engine and zoom system, but additionally featuring moving head capability. The RUSH MH 6 Wash offers a fully pre-mixed color system from 12 x 10 W RGBW LEDs with a spectacular 10°–60° zoom. It also offers full electronic dimming, strobe effects and temperature-controlled fan cooling for quiet operation.

FEATURES

• 12 x 10 W Osram Ostar RGBW LED’s
• Single-lens wash with fully premixed color
• 2,000 lumen output
• 10°–60° zoom
• 32 pre-built color macros
• Temperature-controlled cooling system
• Digital display menu
• PowerCON in and through
• 3 and 5-pin DMX options

TECH SPECS
Dynamic Effects

• Color mixing: RGBW
• Color presets: 36 color presets plus full white, ‘color wheel’ effects
• Electronic dimming: 0 – 100%, four dimming curve options
• Strobe and pulse effects: Variable speed and action, random strobe
• Electronic ‘shutter’ effect: Instant open and blackout
• Zoom: Motorized
• Pan: 540°
• Tilt: 200°

Control and Programming

• Control options: DMX
• DMX channels: 14
• White balance control: RGB adjustment
• 16-bit fine control: Dimming, pan and tilt
• DMX address setting: Control panel with LCD display
• DMX compliance: USITT DMX512/1990

Optics

• Light source: 12 x 10 W RGBW Osram Ostar LEDs
• Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
• Zoom range: 10° – 60°
• *Figure obtained under manufacturer’s test conditions

Construction

• Color: Black
• Housing: High-impact flame-retardant thermoplastic
• Ingress protection rating: IP20

Installation

• Mounting points: One quarter?turn bracket for rigging clamp
• Location: Indoor use only, must be fastened to surface or structure
• Orientation: Any
• Minimum distance to illuminated surfaces: 200 mm (8 in.)
• Minimum distance to combustible materials: 100 mm (4 in.)
• Minimum clearance around fans and vents: 100 mm (4 in.)

Connections

• AC power in/thru: Neutrik PowerCon
• DMX data in/thru: 3-pin and 5-pin locking XLR

Electrical

• AC power: 100-240 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Fuse: T 3.15 A
• Recommended Miniature Circuit Breaker*: Type D
• *Per IEC 60898/UL489/CSA C22.2 No. 5
• Power consumption figures are typical, not maximum. Allow for +/-10% variation.

Typical Power and Current

• 120 V, 60 Hz: 1.3 A, 150 W, PF 0.99
• 230 V, 50 Hz: 0.7 A, 150 W, PF 0.94
• Typical half-cycle RMS inrush current at 240 VAC: 11.3 A
• Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

• Cooling: Forced air (temperature-regulated, low noise)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 0° C (32° F)

Approvals

• EU safety: EN 60598-2-17 (EN605989-1), EN 62471, EN 62493
• EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
• US safety: UL 1573, UL 8750
• US EMC: CFR Title 47 Part 15
• Canadian safety: CSA C22.2 No. 166
• Australia/NZ: C-TICK N4241 / RCM
