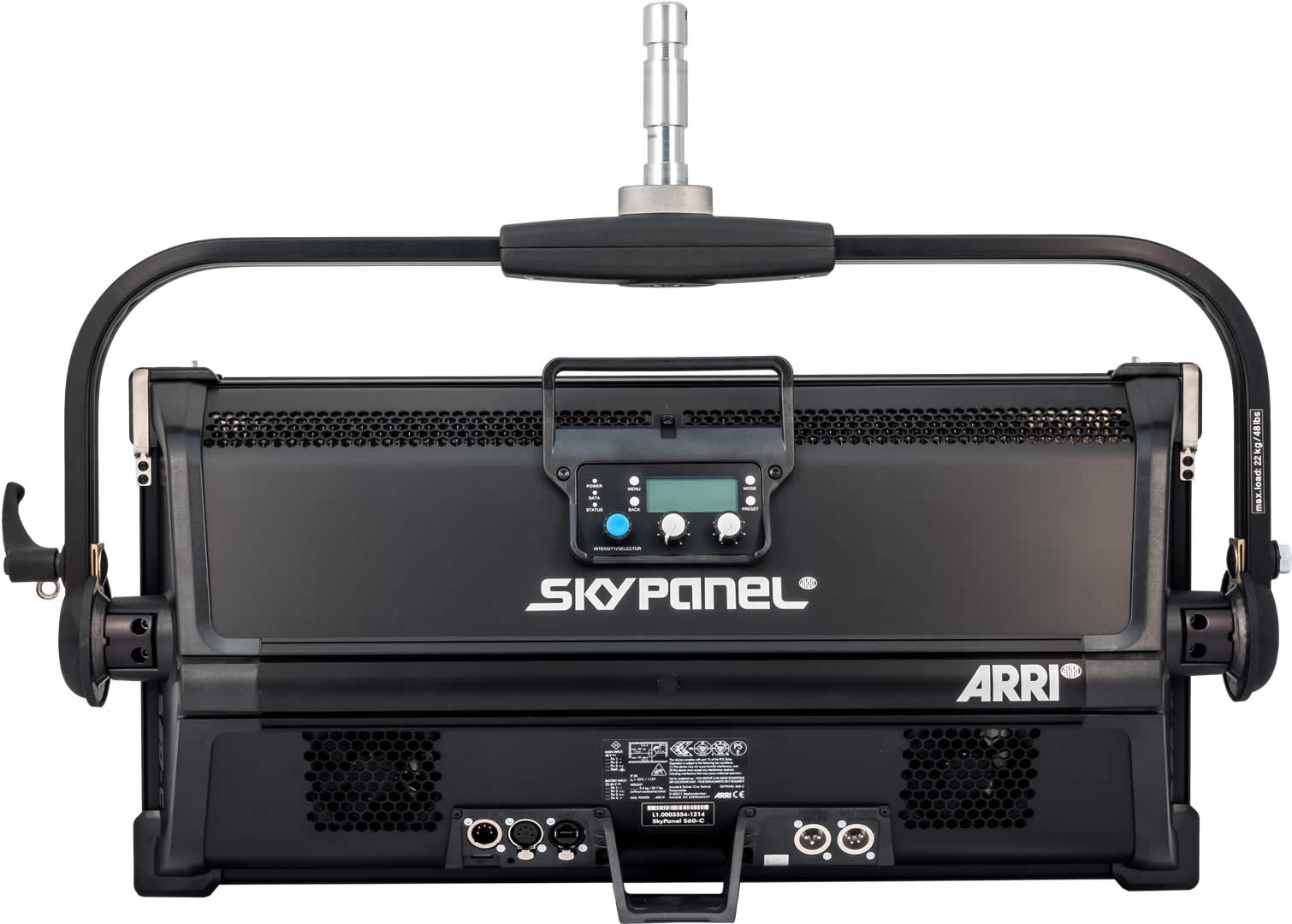

ARRI - Skypanel S60-C

SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.Unique Features

Fully Tuneable from 2,800 K to 10,000 K
Vibrant Color Selection (RGB+W Color Gamut)
High Color Rendering
Low Power Consumption (420 W Nominal)
Tremendous Output – Brighter than 2 kW Tungsten Soft Light
Fully Dimmable from 0 to 100 %
Lightweight and Compact
Beautiful Soft Beam of Light
Interchangeable Diffusion Panels
Wide Range of Accessories Available

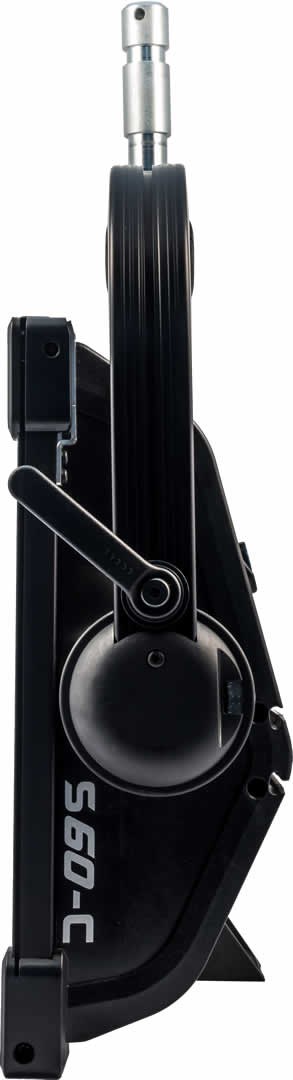

Thin Profile
On-Board Battery Connection (23 – 36V DC)

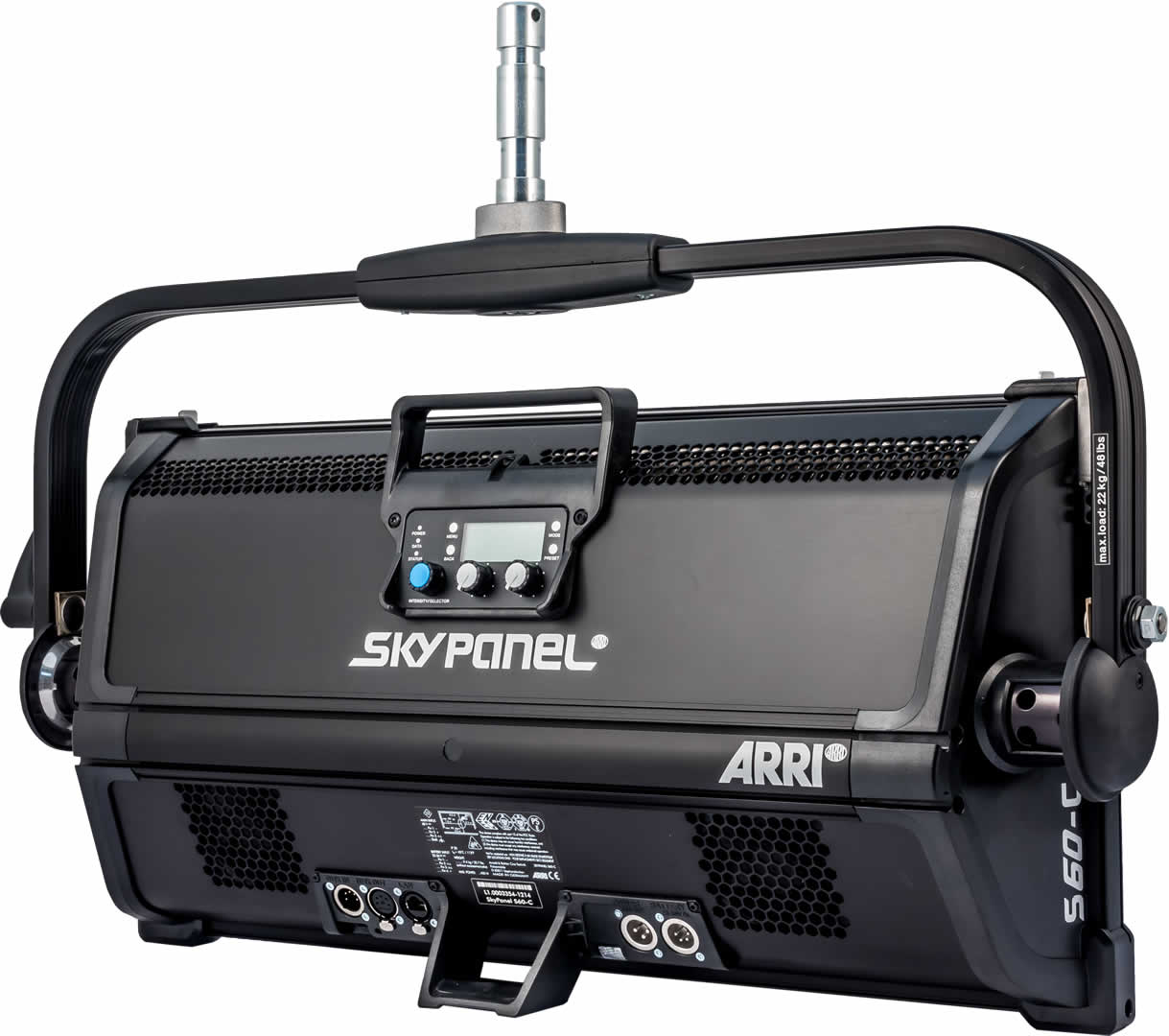

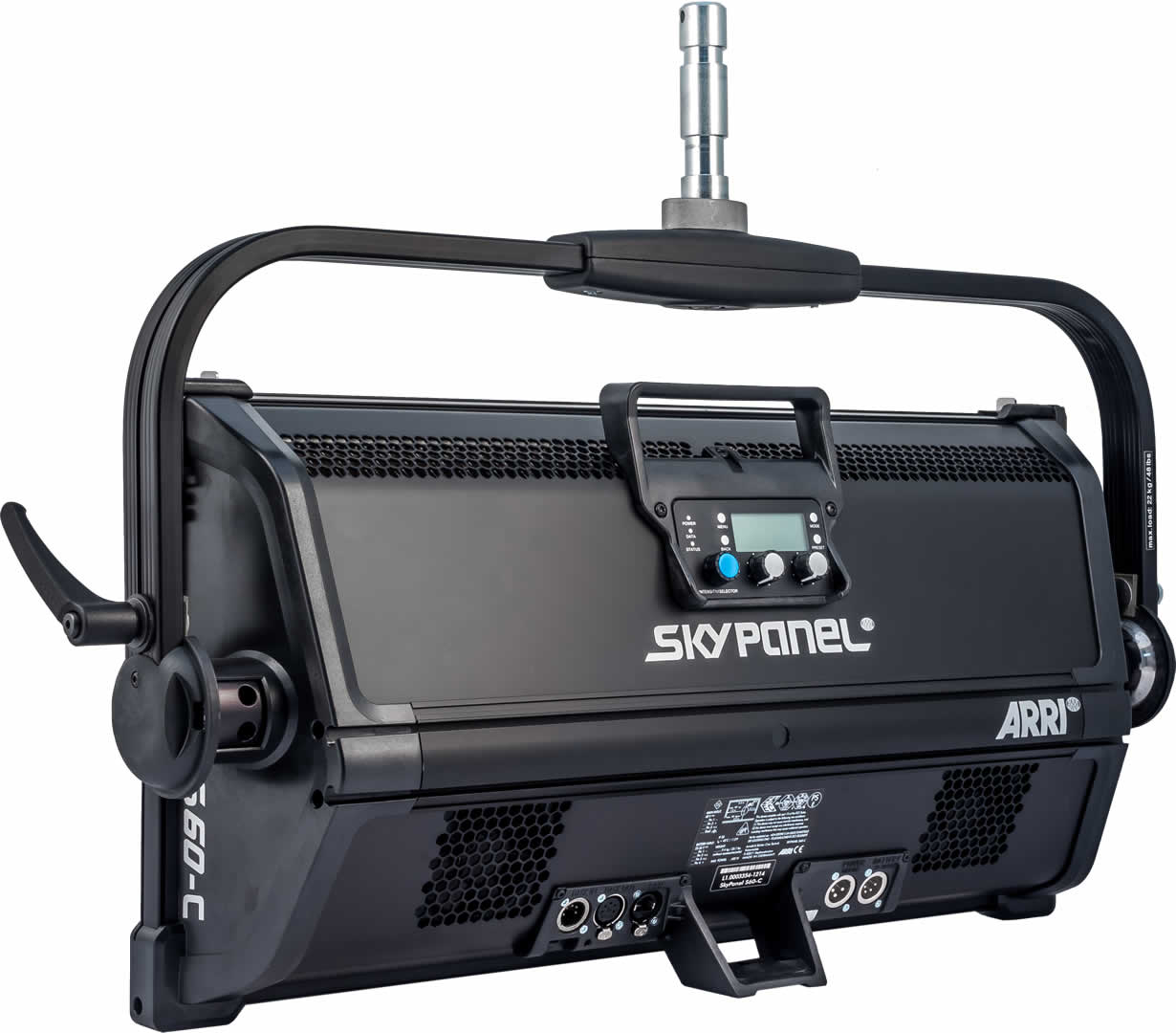

Onboard Simple Control Panel
Onboard DMX In and Out
RDM Implementation
USB-A Connection for Firmware Updates
EtherCon port for network connectivity
Available in Blue/Silver and Black
Fan Mode Selection
External Lightweight PSU
powerCON TRUE1 Power Connector

Specifications

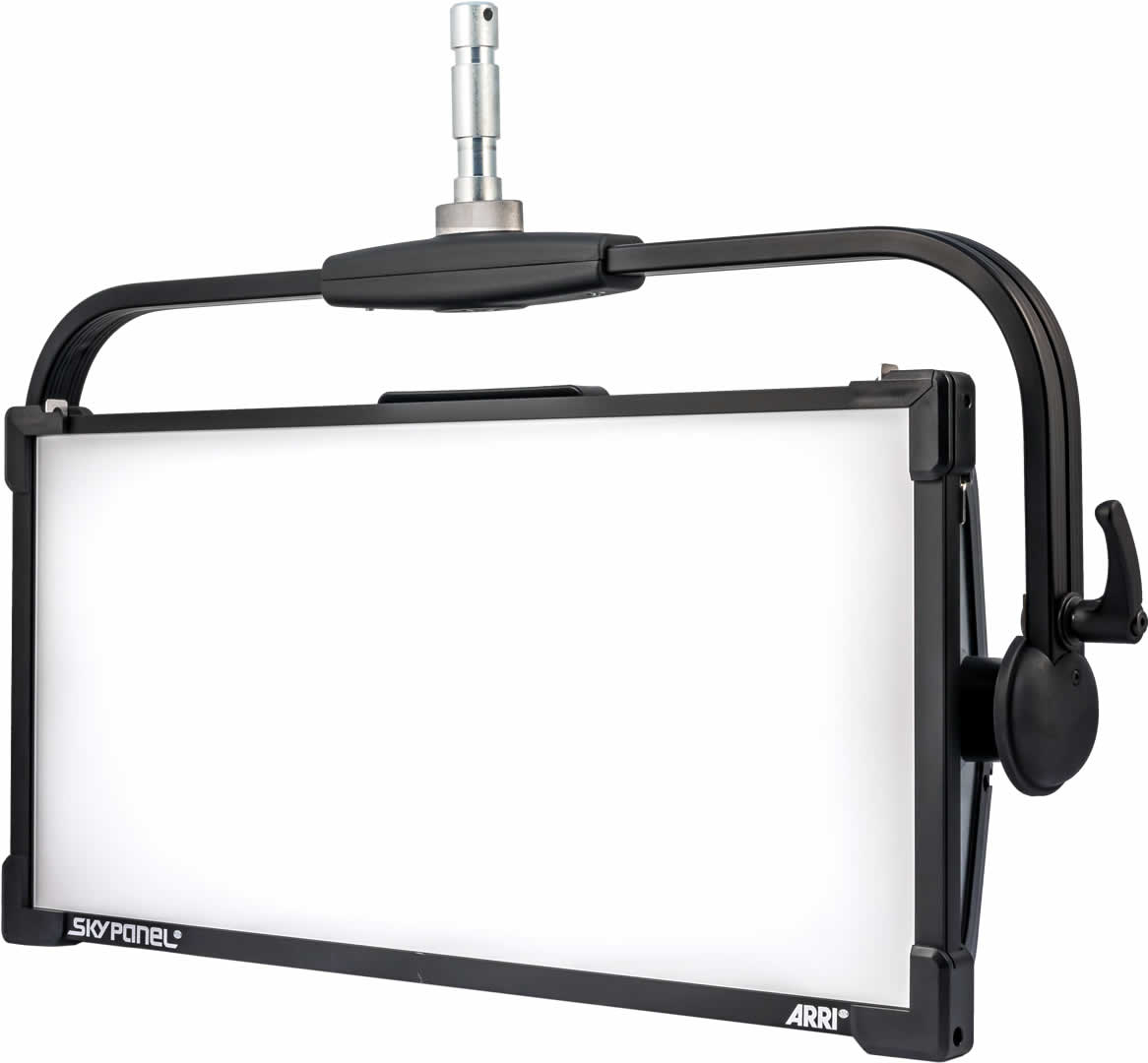

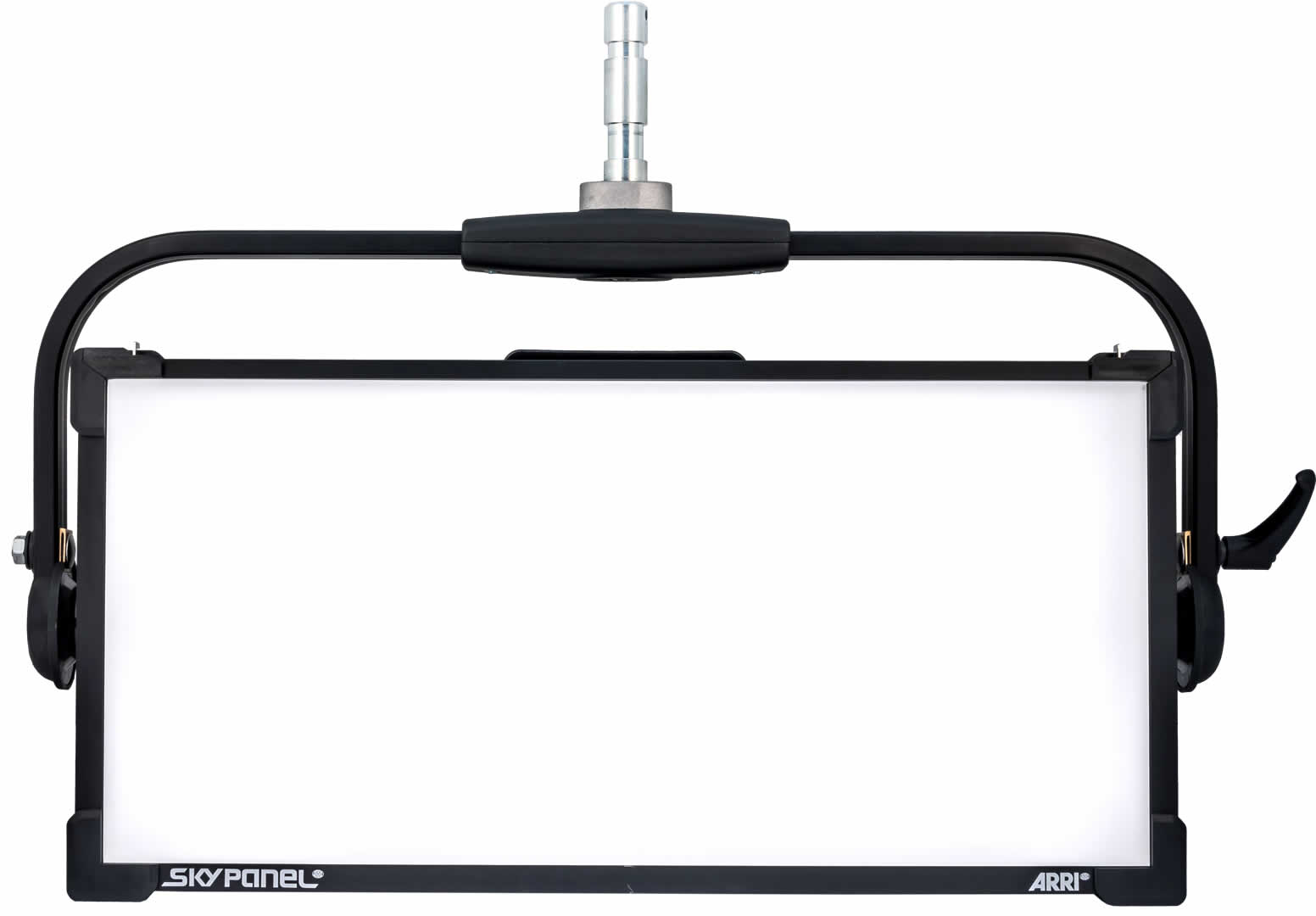

Optical System : Soft Diffusion Panel

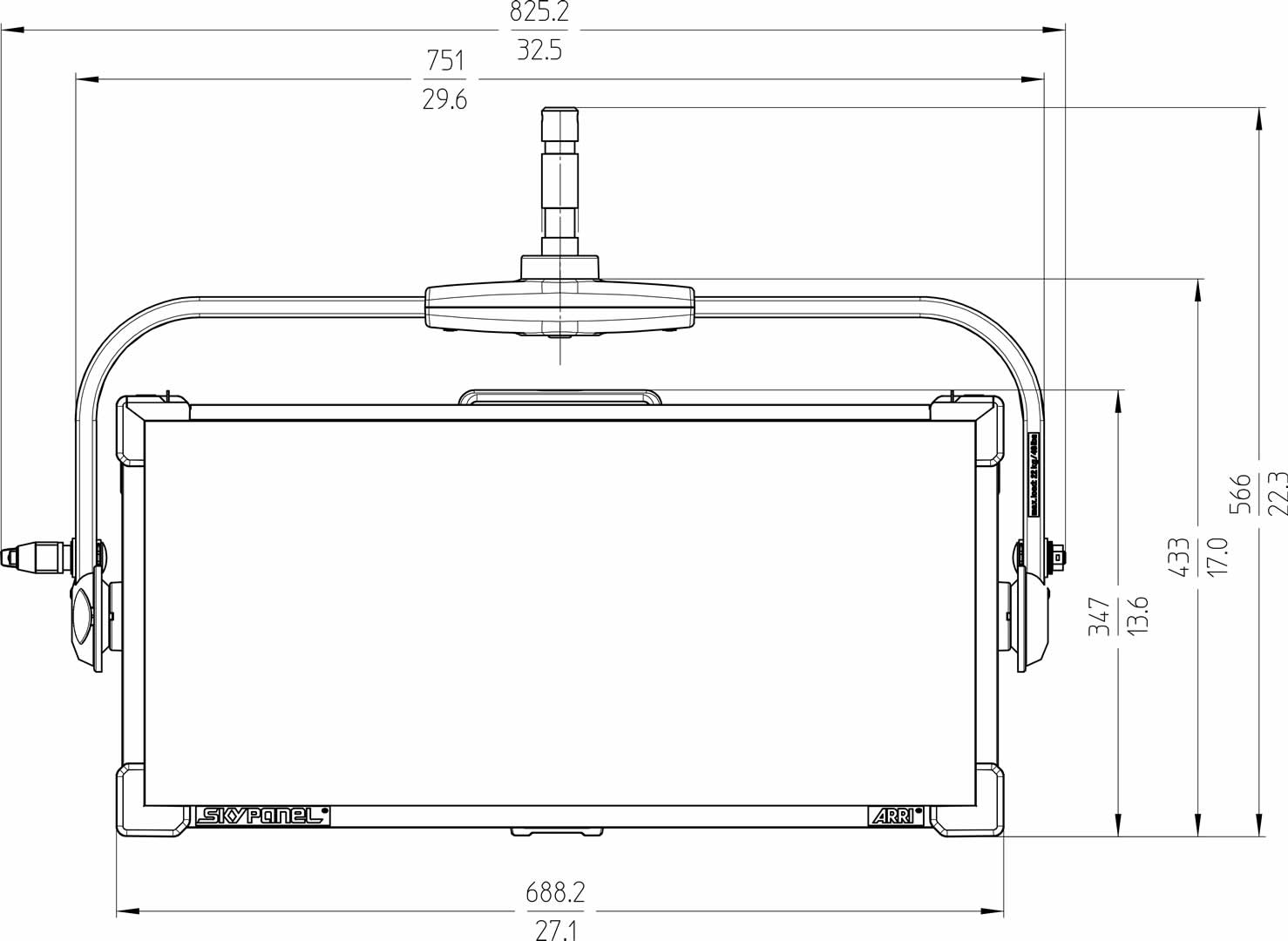

Light Aperture : 645 x 300 mm / 25.4 x 11.8″
Beam Angle : 115º (Half Peak Angle)
Handling :

Aluminium Yoke, High Strength Tilt Lock
Pole Operation Option (Pan & Tilt)

Mounting : 28 mm Spigot (Junior Pin)
Tilt Angle : +/- 90º
Lamphead Voltage Input : 48 V DC
Power Consumption : 420 W Nominal, 450 W Maximum
Lamphead Power Connection : Male 3-Pin XLR – 15 Amp (Pin 1: Negative / Pin 2: Positive)
Battery Connector : Male 4-Pin XLR – 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range : 23 to 36 V DC
Battery Mode Light Output : 50 % of total output
White Light : 2,800 K to 10,000 K continuously variable correlated color temperature
Colored Light : Full RBG+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance : +/-100 K (nominal), +/-1/8 Green-Magenta (nominal)
Color Rendition :

CRI Average > 95
TLCI Average > 90

Green-Magenta Adjustment : Continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming : 0 to 100 % continuous
Control : On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Remote Device Management (RDM*) : DMX Setup, Hour Counter and Standard RDM Commands
Software Interface : Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software upgrade via flash drive
Ambient Temperature Operation : -20 to +45ºC / -4 to +113ºF
Protection Class / IP Rating : III / IP20
Estimated LED Lifetime (L70) : 50,000 hours
Estimated Color Shift Over Liftetime : +/- 5 %
Certifications : CE, CB, ENEC, cNRTLus, FCC, PSE

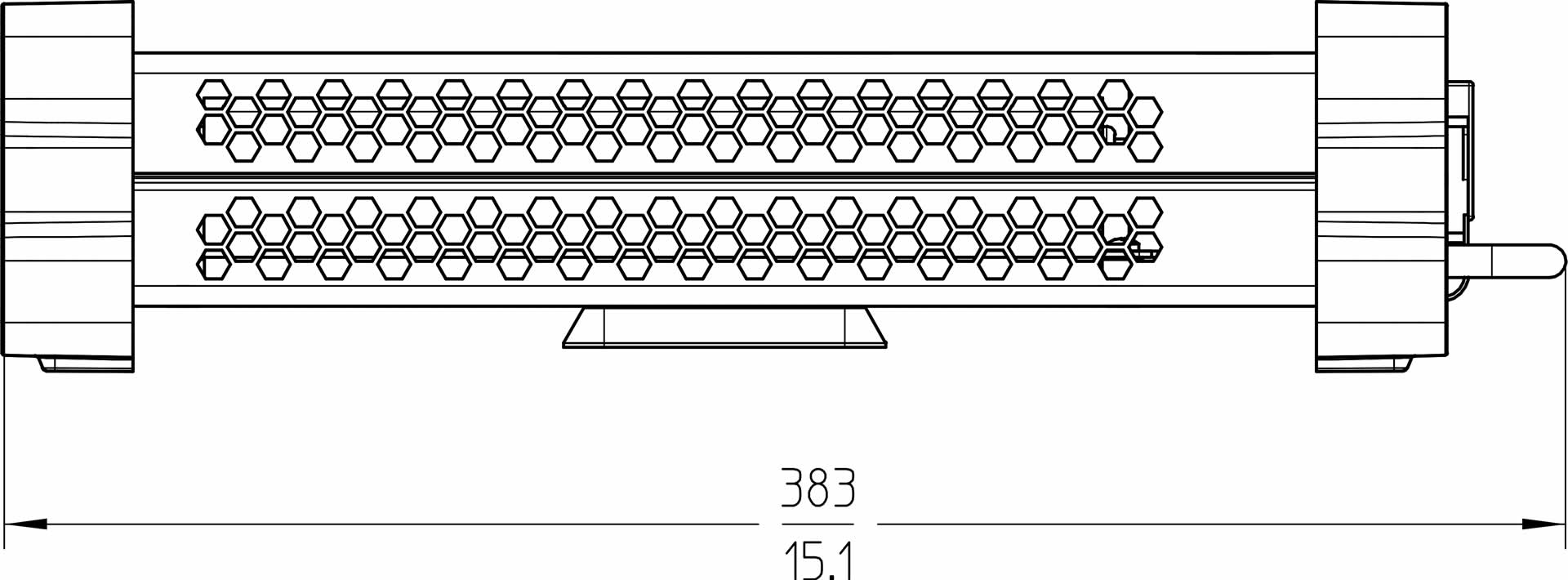

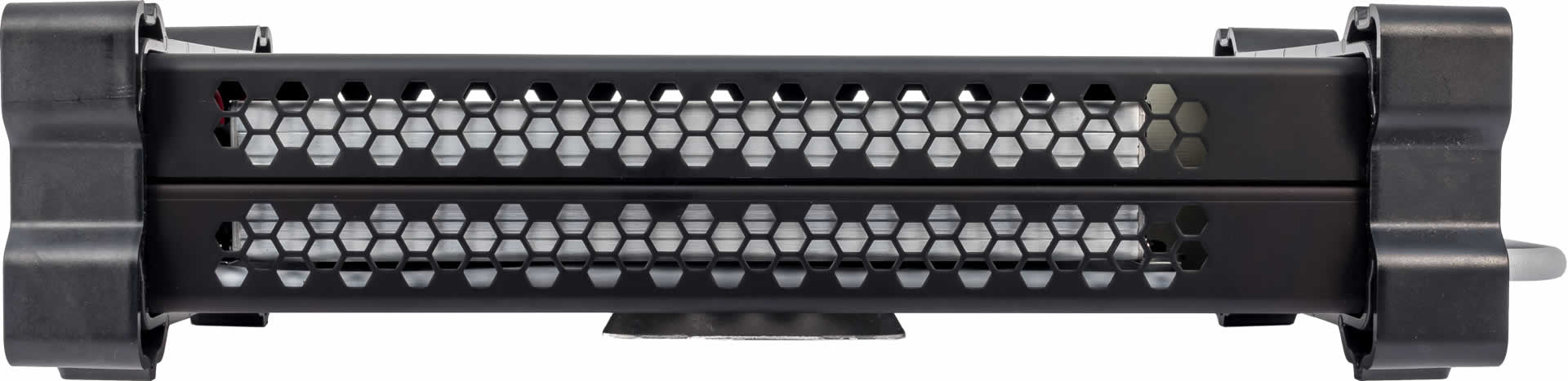

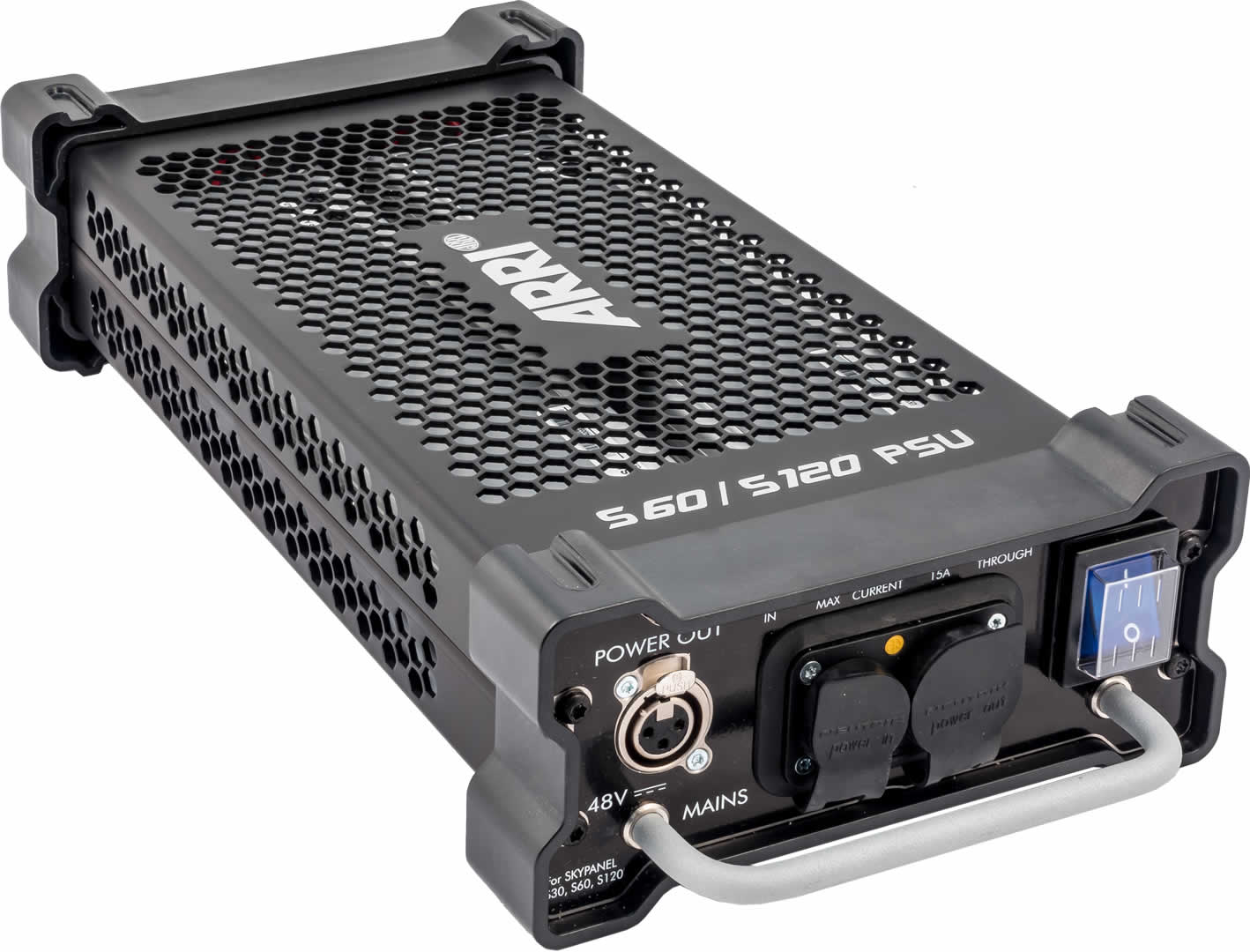

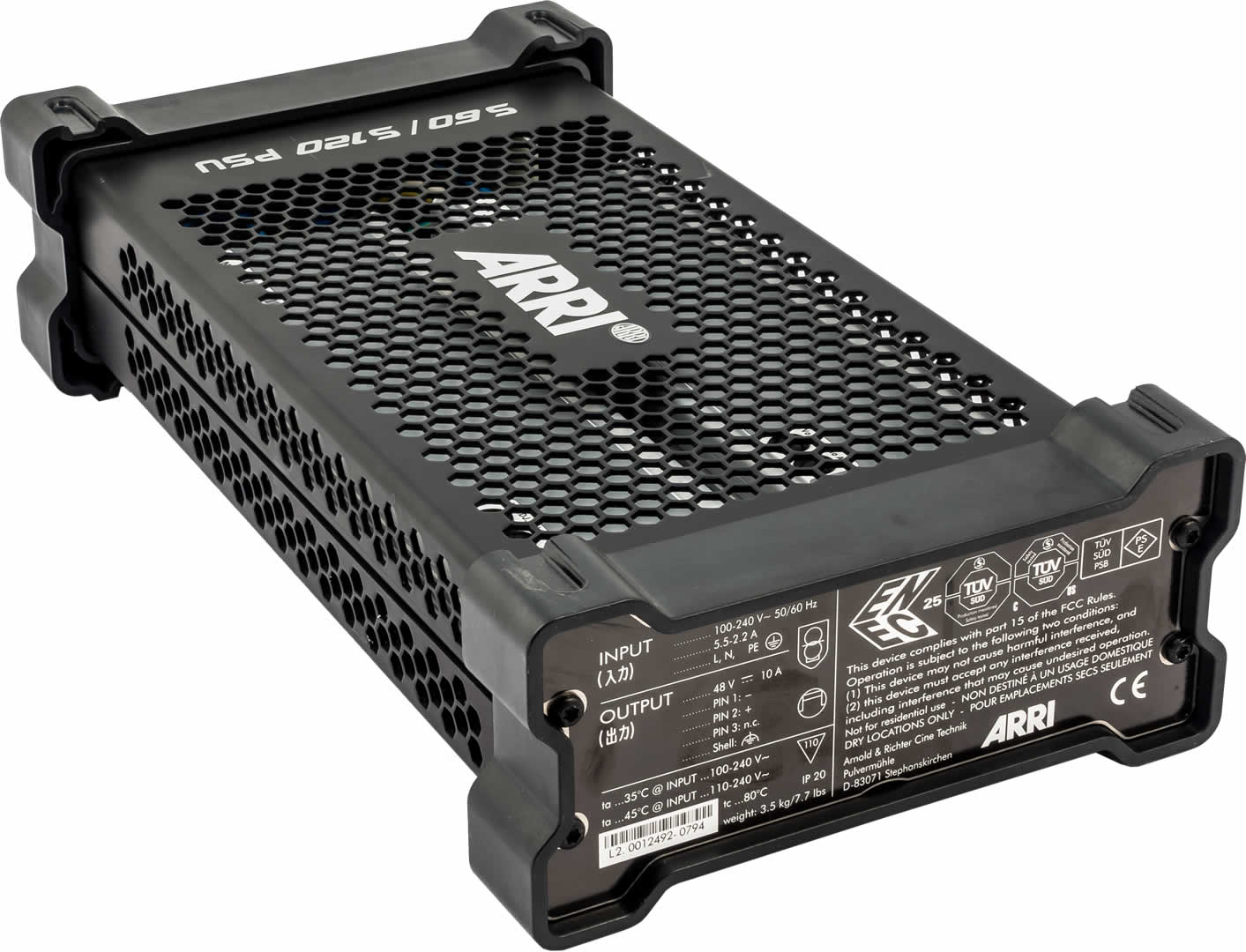

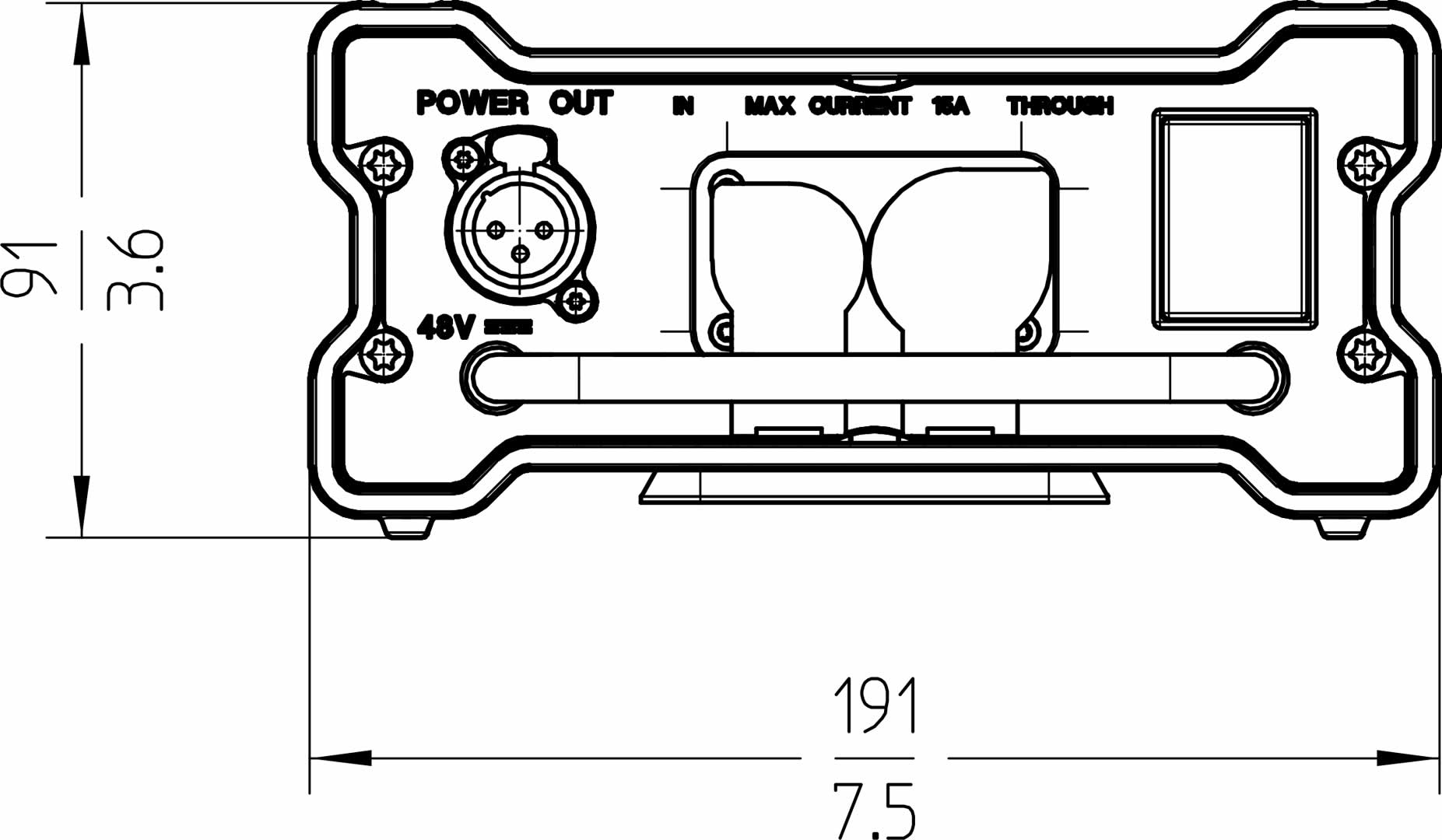

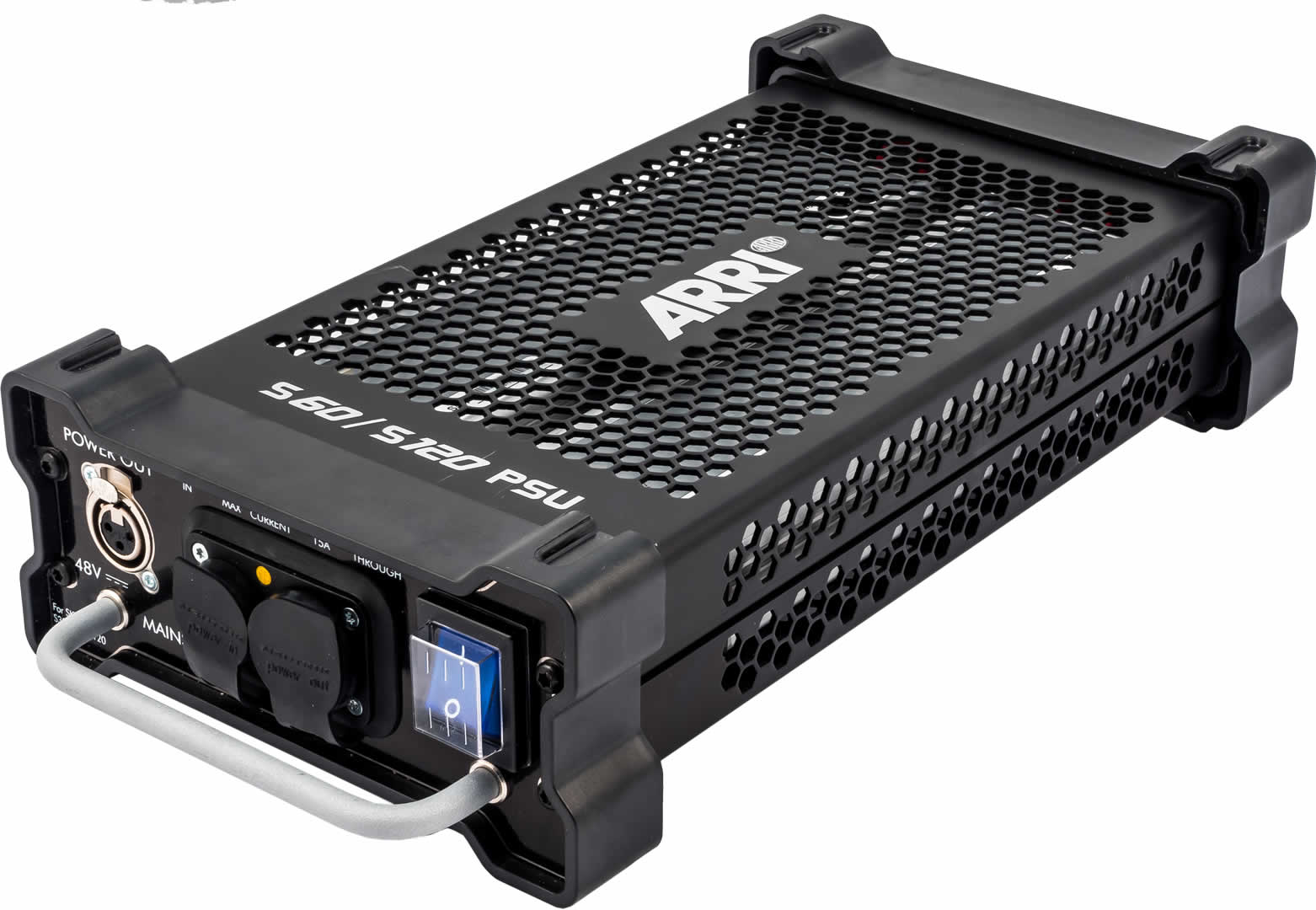

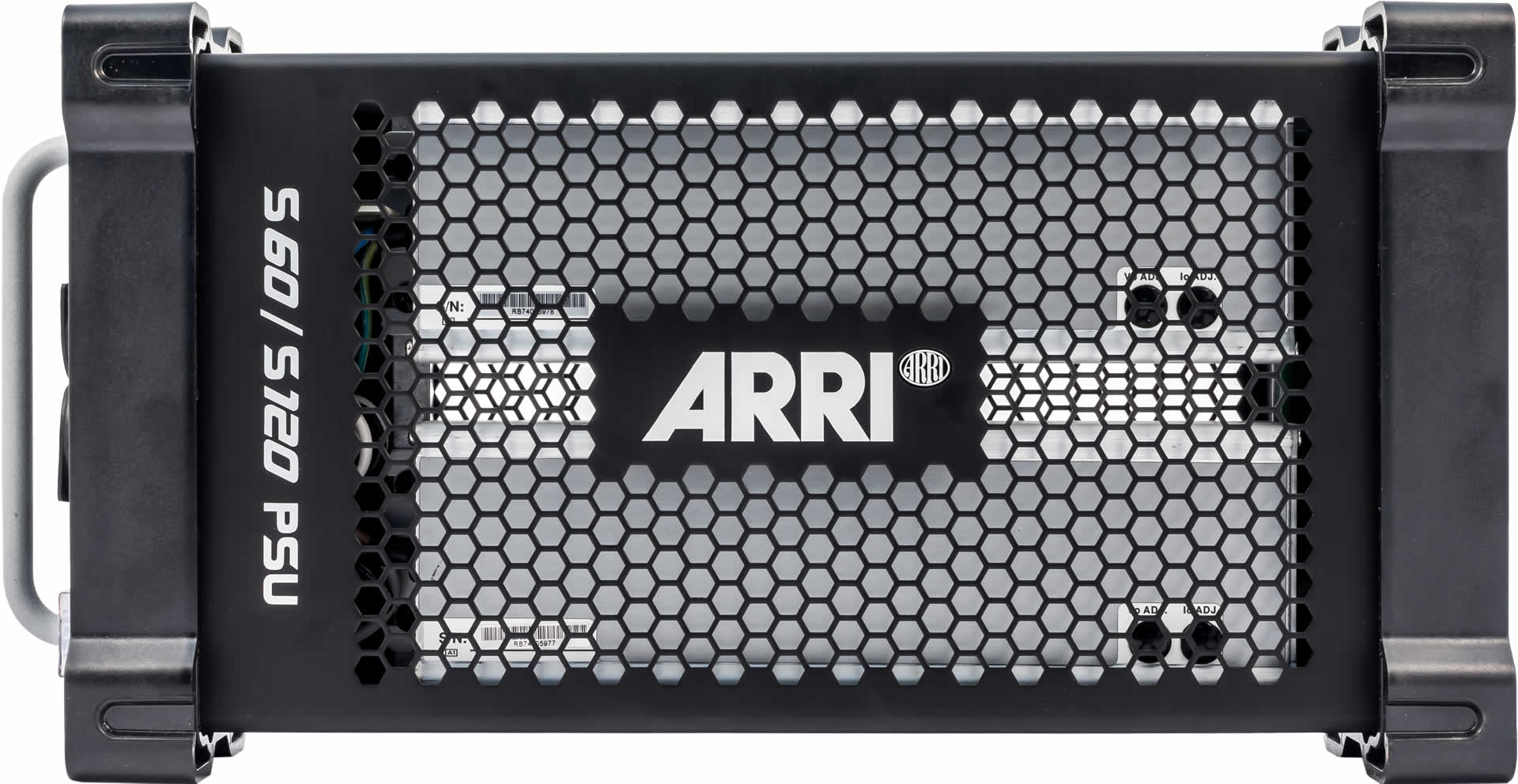

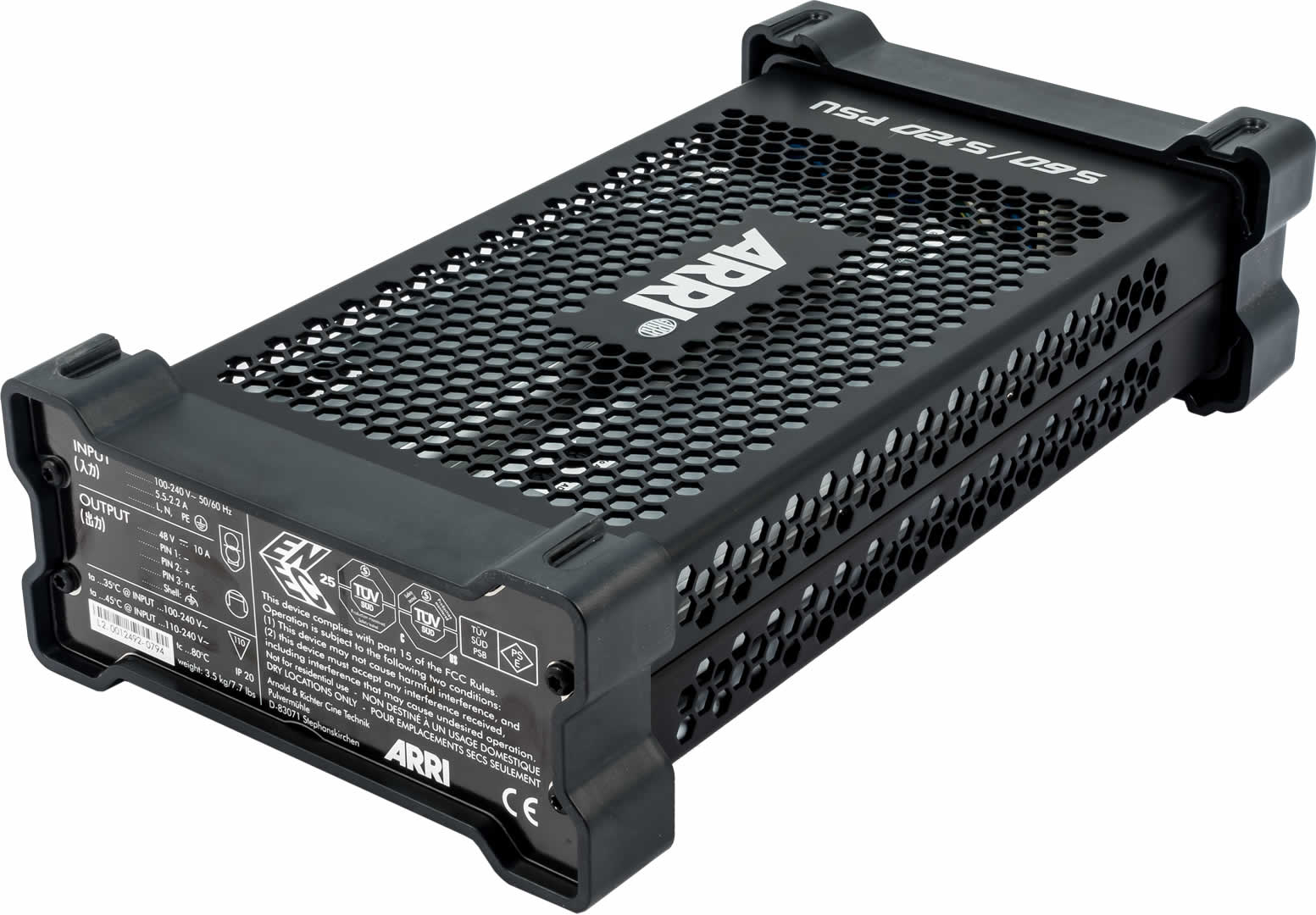

 Power Supply Unit

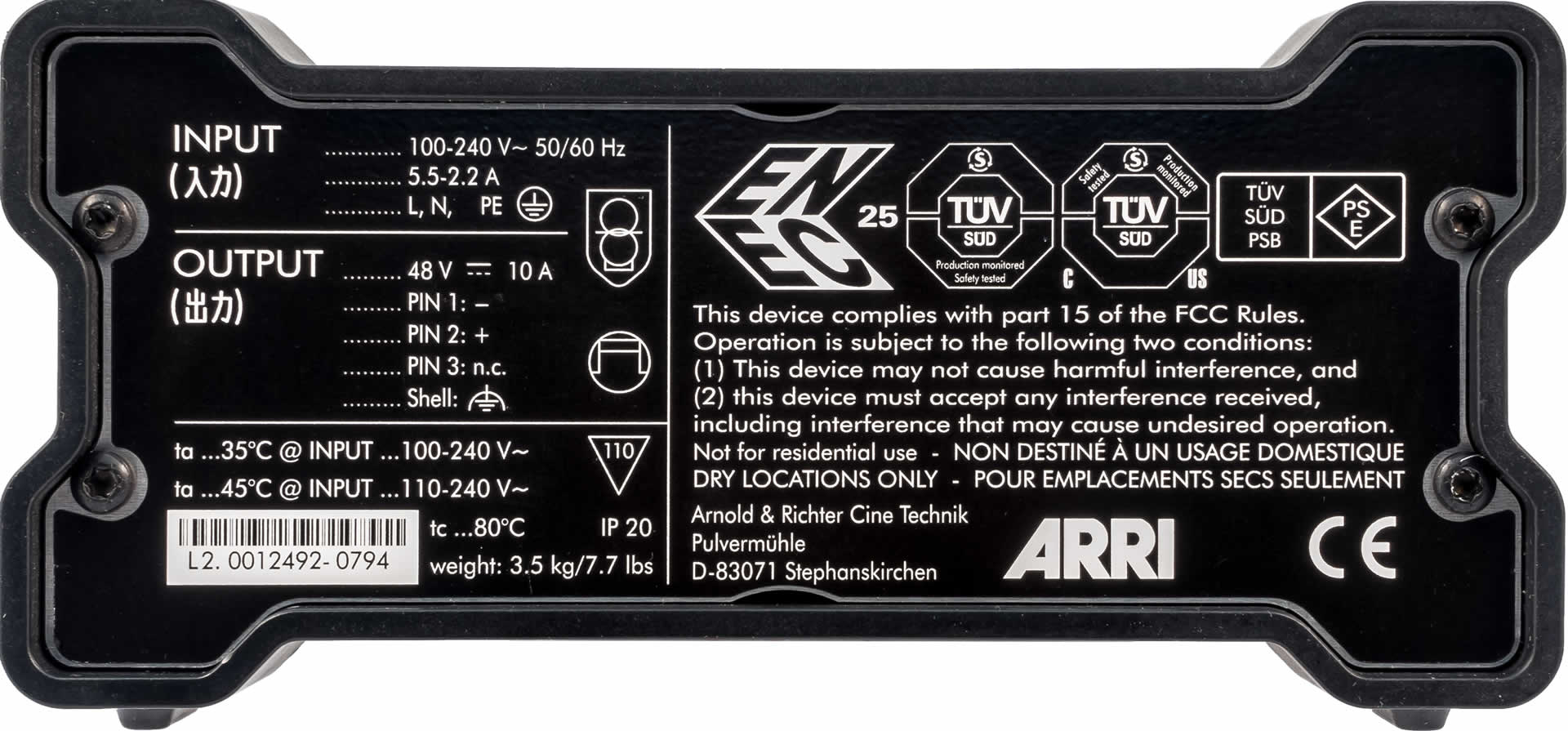

Power Supply Input Range : 110 to 240 V ~, 50/60 Hz
Power Supply Output Range : 48 V DC
Power Input Connection : powerCON TRUE1 (Bare Ends / Schuko / Edison cables available)

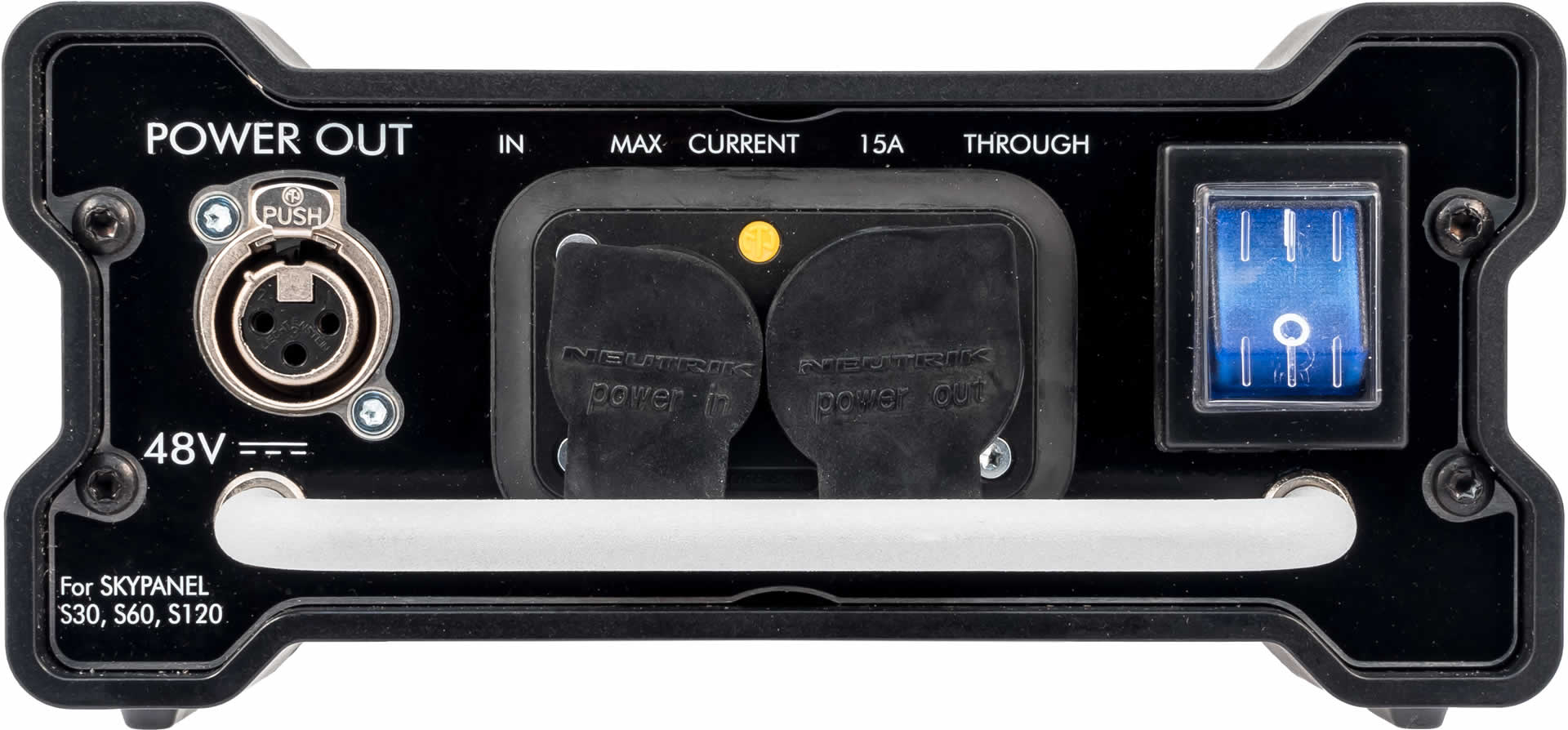

Power Output Connection : Female 3-Pin XLR – 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
Control : On-Board On/Off Switch

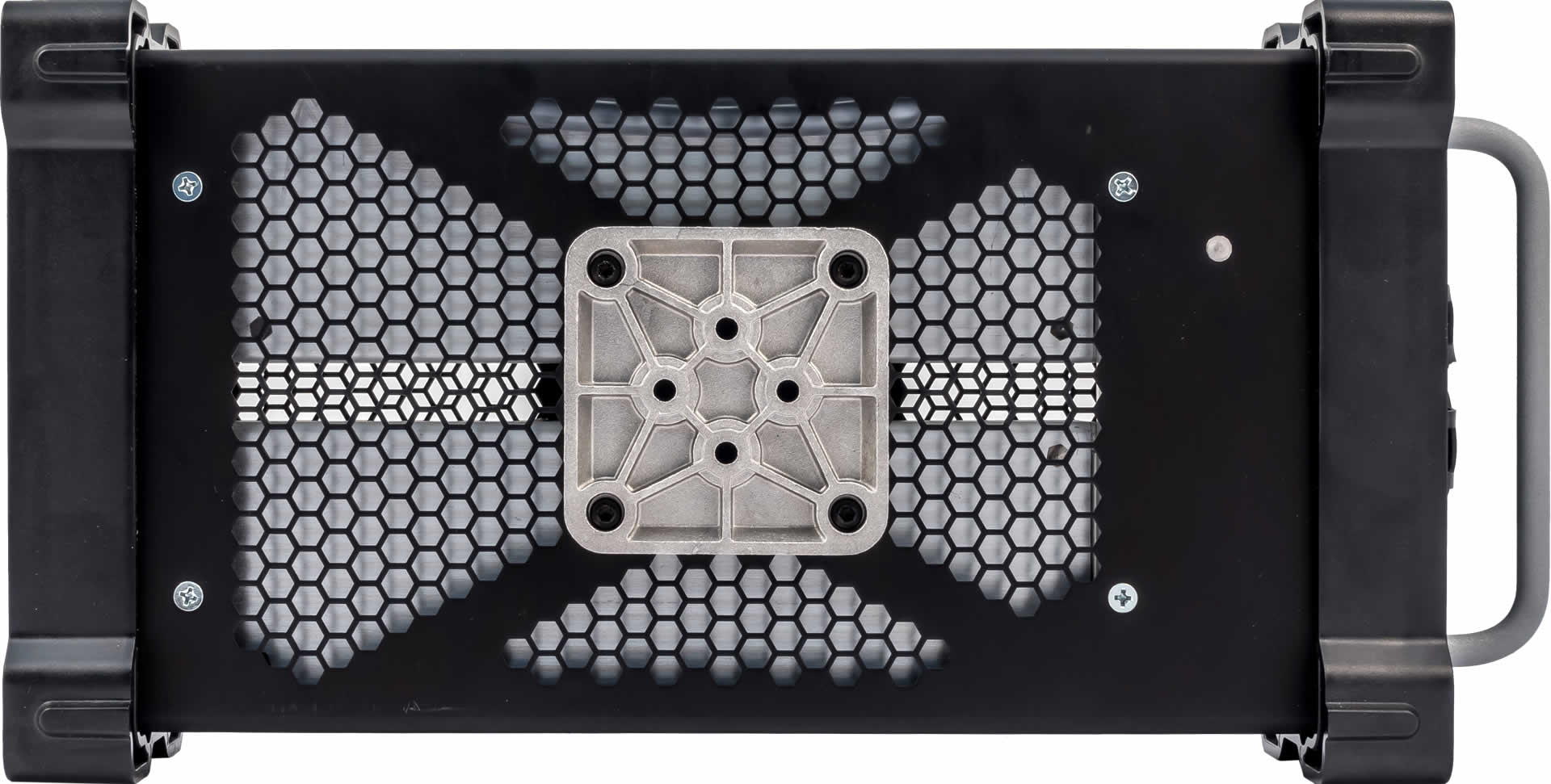

Mounting : SkyPanel PSU Super Clamp Adapter / Rail Mount Adapter
Certifications : CE, CB, ENEC, cNRTLus, PSE

* RDM Available in Future FirmwareNote: All specifications are nominal / typical values.
