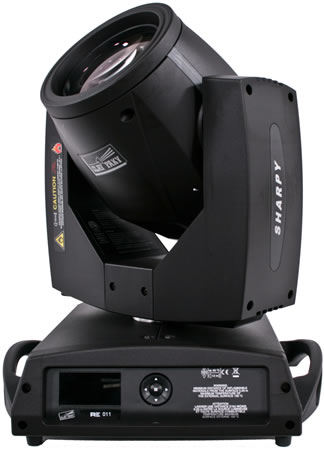

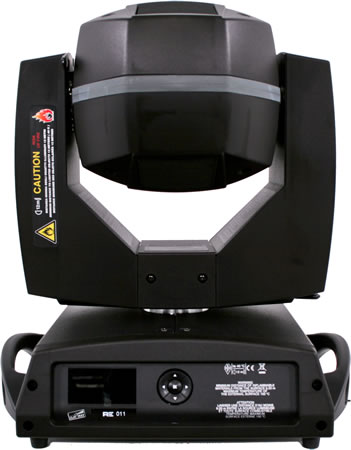

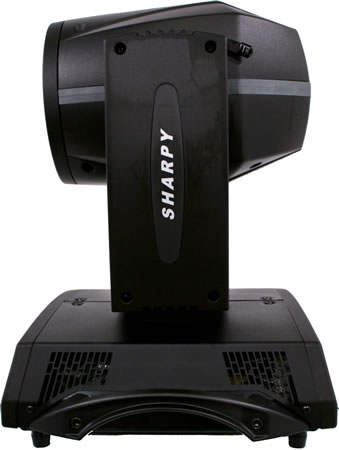

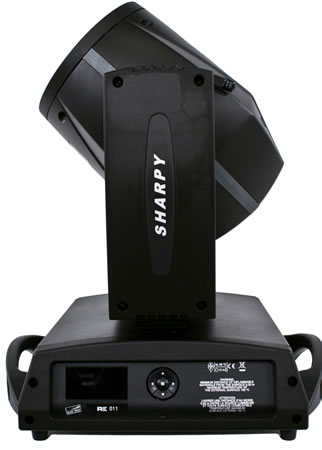

CLAY PAKY - Sharpy

POWER SUPPLIES

115/230V  50/60 Hz

INPUT POWER

350VA at 230V 50Hz

LAMP SOURCE

Lamp system with a short arc burner in a reflector
Type MSD Platinum 5R (L10103)
Output Lamp power: 189W
Colour temperature 8000 K
Average life 2000 h

OPTICS

3-lens HQ optical group (patent pending)
Zoom: from zero to 3.8°
Focus: electronic
Light output at 20 meters (65 feet): 59,760 lux

COLOR SYSTEM

Interchangeable color wheel with 14 colors + open

EFFECTS SECTION

Interchangeable gobo wheel with 17 fixed gobos + open
High speed shake effect
8-facet rotating prism
Frost filter
Mechanical shutter and adjustable speed strobe effect
Mechanical dimmer

CONTROL AND PROGRAMMING

Max 20 DMX 512 control channels
DMX protocol signal: USITT DMX 512
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Movement control: vectorial

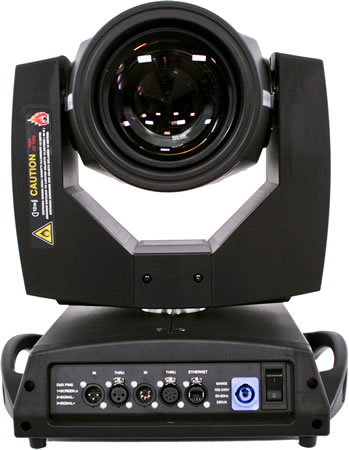

DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input

BODY

Aluminium structure with die-cast plastic cover.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.

MOVING BODY

Travel:
- PAN = 540° – TILT = 250°â€¨Maximum speeds:
- PAN = 2.45 sec
- TILT = 1.30 sec
Resolution:
- PAN = 2.11° – PAN FINE = 0.008°â€¨- TILT = 0.98° – TILT FINE = 0.004°
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.

ELECTRONICS

Long life self-charging buffer battery
Pre-set macros
Function reset from the lighting desk
ON/OFF lamp control from the lighting desk
« AUTOTEST » function from menu
ETHERNET ready
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware upgrade with no power
Firmware upload from another fixture

SAFETY DEVICES

Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating or failed operation of cooling system.
Forced ventilation with axial fans.

WORKING POSITION

Any Working Position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

In conformity with the European Union Low Voltage Directive 2006/95/CE and Electromagnetic compatibility Directive 2004/108/CE
