Fohhn - A-1 Live
Interface de sortie audio USB vers 2 canaux XLR, symémtrique, impédance ligne
Informations
- Codart : A1LIVE
Propriétés techniques
- Dimensions unitaires : 105 x 45 x 50 mm
- Poids unitaire : 190g
Documents à télécharger
Détails produit
The new Fohhn Audio Interface.
- Trouble-free, direct transmission of audio data from a computer to a professional sound reinforcement system, without any reduction in sound quality or level.
Description
- The A-1 live has been specially developed to enable a high-quality, trouble-free transfer of audio data from a computer to a professional sound reinforcement system. Despite offering a variety of functions and possibilities, many standard sound cards and interfaces often lack either balanced XLR outputs or a galvanically isolated USB connection. This frequently leads to interference, hum, poor transfer quality and insufficient output levels. With the A-1 live however, such problems become a thing of the past.
Easy handling

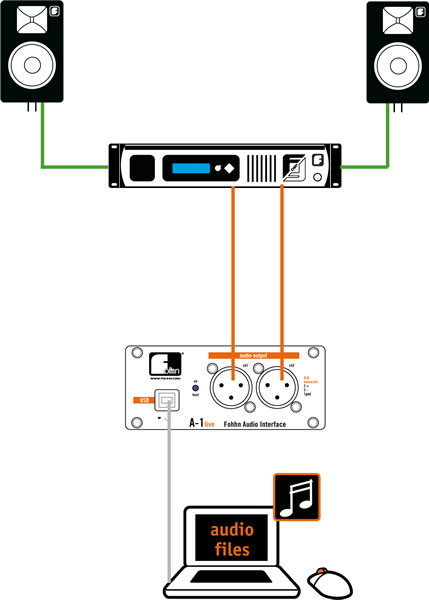

- Using the A-1 live, the computer can be directly connected to the system via balanced XLR connectors, without the need for additional devices such as a mixer. A trouble-free connection is guaranteed, with no reduction in signal level and the galvanic isolation providing additional protection for your computer.
Connectors

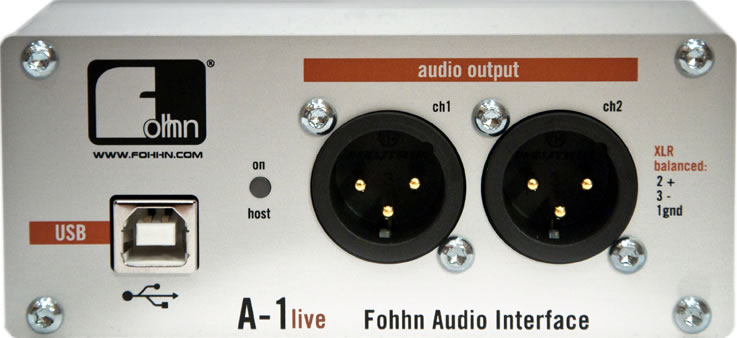

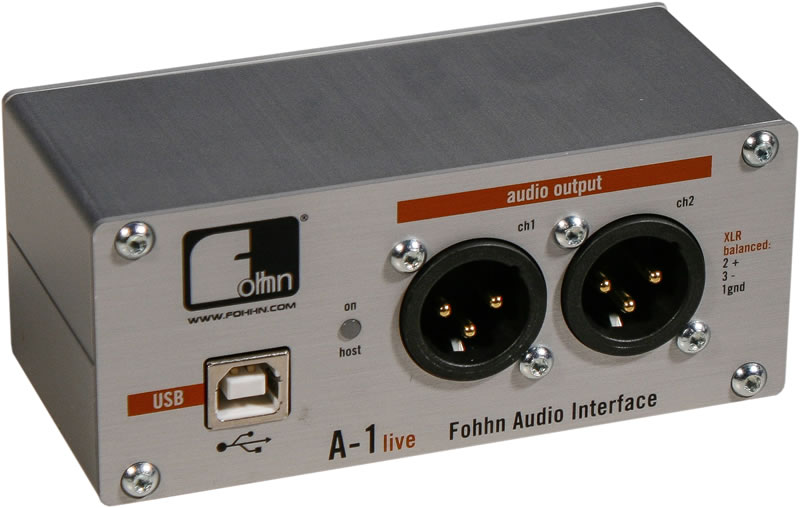

- The A-1 live is a high-quality, two-channel USB audio interface with balanced XLR outputs and a galvanically isolated USB connection.
Scope of delivery
- The A-1 live comprises the following components:?- A-1 live Fohhn Audio Interface?- USB cable
Requirements
- The A-1 live is compatible with Windows XP, Windows Vista and Windows 7 (32-bit and 64-bit), as well as Mac OS 10.4 – 10.7 and Linux from Kernel 2.6.
Advantages
- installation does not require dedicated drivers
- excellent audio quality
- balanced XLR audio stereo outputs
- no DI box required
- galvanically isolated USB connection
- no separate power supply is required
Specifications
- USB connection : USB 1.1 Full Speed, galvanically isolated
- audio stereo outputs : 2-channel balanced XLR
- audio DAC : 16-Bit 44,1 / 48 kHz
- Output level : +10 dBu
- power supply : USB powered / no separate power supply is required
