NEXO - LS18
Enceinte Sub-Bass, 18", 107 dB SPL Nominal / 8Ω, pour séries Nexo PS et Geo S12
Informations
- Codart : LS18
Propriétés techniques
- Dimensions en flight-case (X1) : ... cm
- Poids en flight-case (X1) : ... kg

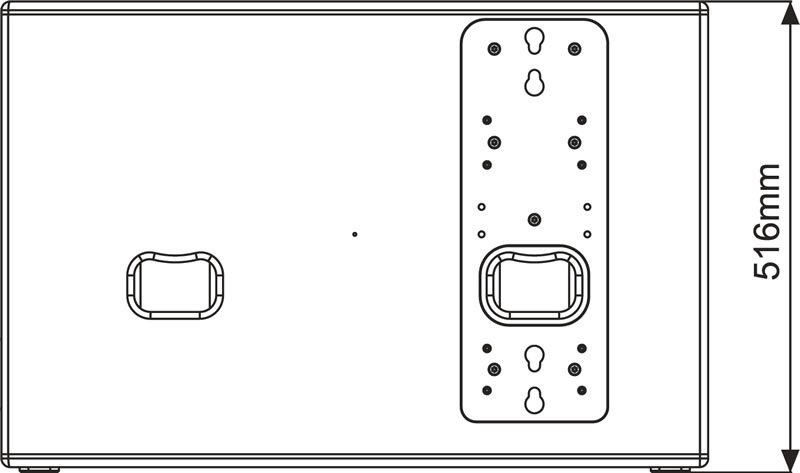

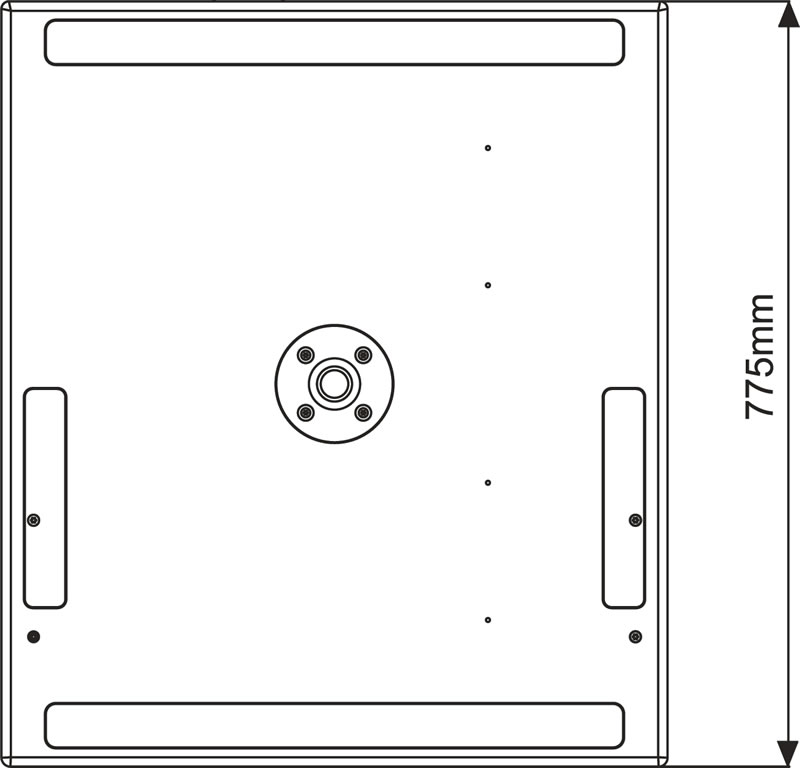

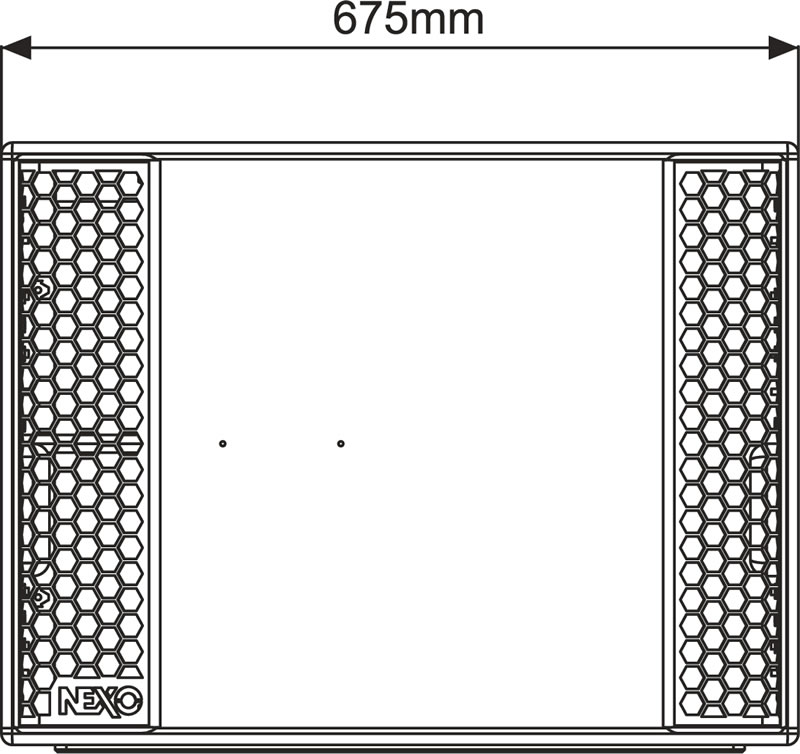

- Dimensions unitaires : 510 x 675 x 775 mm
- Poids unitaire : 55,5 kg
Documents à télécharger
Détails produit
The LS18 subbass cabinet brings new versatility to NEXO GEO S12 line array systems and PS Series cabinets, delivering high SPL at a relatively low cost.

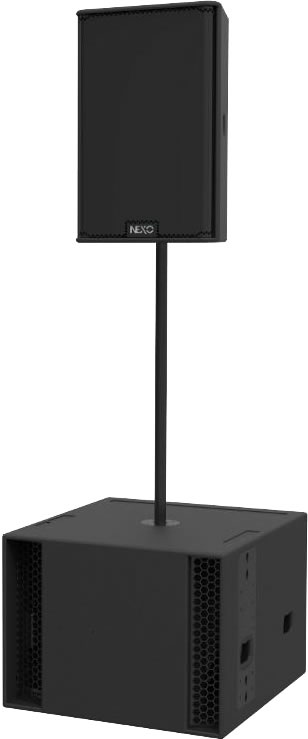

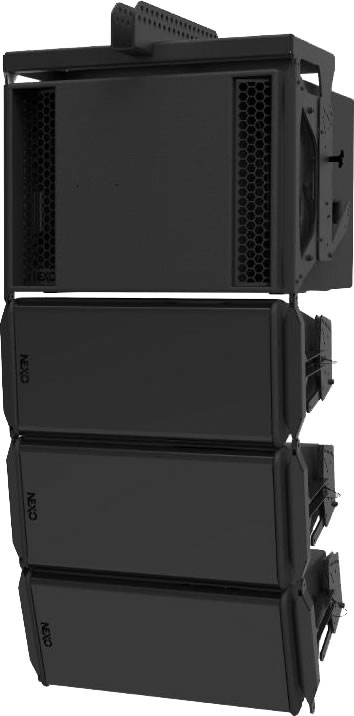

Light and easy-to-handle, the LS18 uses a single 18″ long excursion driver and is compatible with all GEO S12 accessories, so it can fly with the S1230 and S1210 line array modules, or anchor a ground stack of S12 cabinets. With a steel stand fitting on top of the cabinet, the LS18 also allows for pole mounting of GEO S12 cabinets or NEXO PS15-R2 full-range speakers. LS18 can be flown in tandem with PS15s, which will be of particular interest to the installation sector
Key Features
- High power system (137-140dB peak SPL @ 1m)
- Frequency response 30Hz-130Hz (a)
- 1 x 18″ 4″ voice coil long excursion 8 Ω driver
- Light and easy to handle
- Integrates with GEO S12 and PS Systems
System Applications
- Small to mid sized tour systems
- Stadium/Arena/Auditorium installations
- Nightclub and music venue installations
- Houses of worship
- Corporate AV and presentation systems
LS18 with NXAMP TD Controller
- Frequency Response [a] 35 Hz – 120 Hz ±3dB
- Usable Range @-6dB [a] 32Hz – 130 Hz
- Sensitivity 1W @ 1m [b] 107 dB SPL Nominal
- Nominal Peak SPL @ 1m [b] 137 to 140 dB Peak
- Nominal Impedance 8 Ω
- Crossover Frequencies 60 Hz – 85 Hz – 120 Hz Active
- Amplified Controller NXAMP4x1: 2 x LS18 in parallel on 2 bridged channels / NXAMP4x4: 2 x LS18 on 1 channel
PRODUCT FEATURES
- Components : 1 x 18’’ (46cm) 4’’ voice coil long excursion 8 Ω driver
- Connectors 2 x NL4MP Speakon 4 pole
- Construction Baltic Birch Ply & structured black coating
- Fittings :
- Handles 4 metal recessed pockets (2 per side)
- Front finish Molded Dark Grey Metal Grill
- Flying Points Two side plates connecting with external accessories
- Stand fittings Internal Steel Stand Fitting on Top (35mm, 1″3/8) allows pole mounting for PS15 or Geo S12
SYSTEM OPERATION
- Electronic Controller : The NEXO NXAMP presets are precisely matched to the LS series cabinets and include sophisticated protection algorithms. Using LS Series cabinets without a properly connected NXAMP will result in porr quality and can damage components
- Speaker Cables : LS18 is wired 1- & 1+ on 2 In/Out Speakon connectors Single cables can thus be used to loop through to PS15-R2 or to Geo S12.
