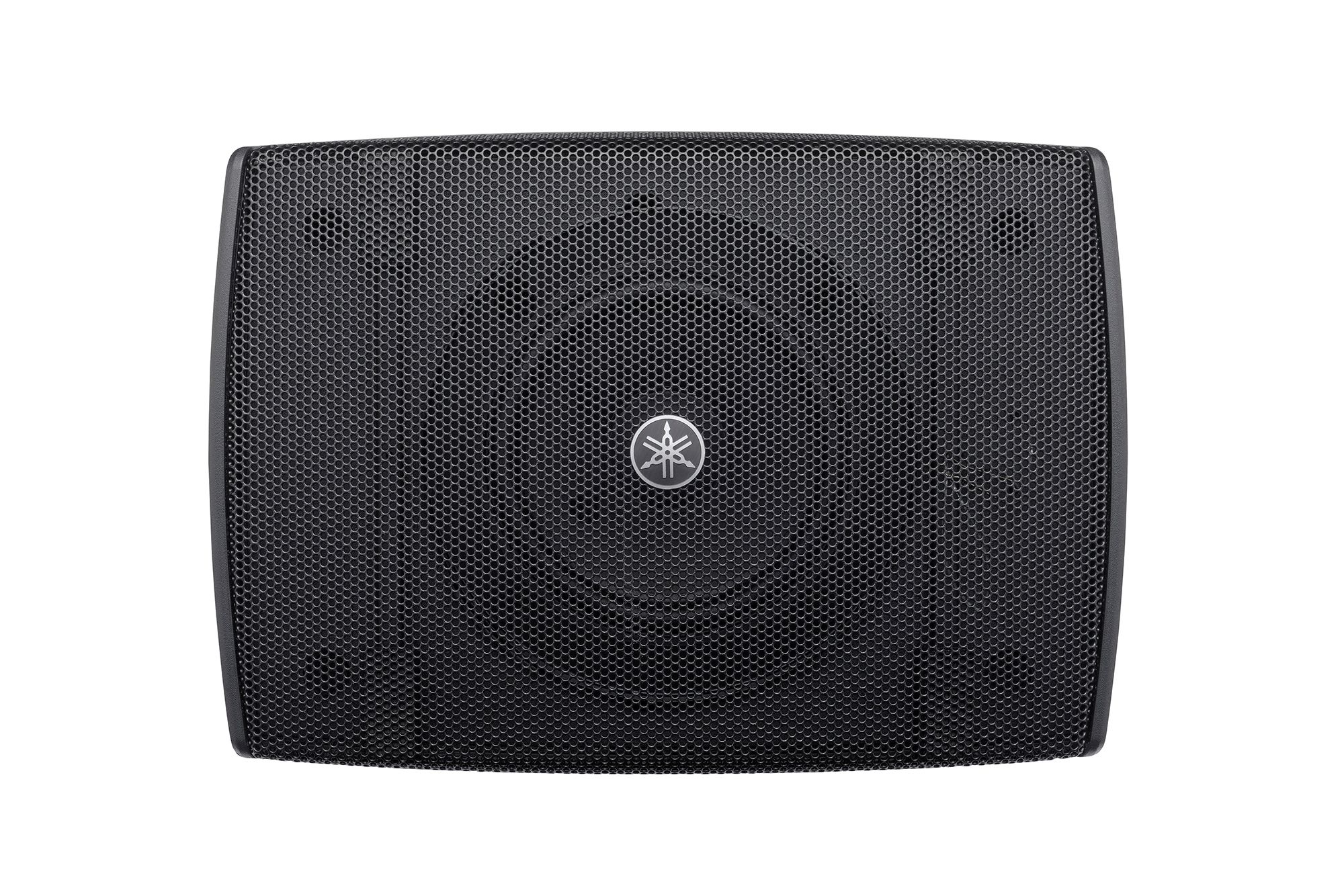

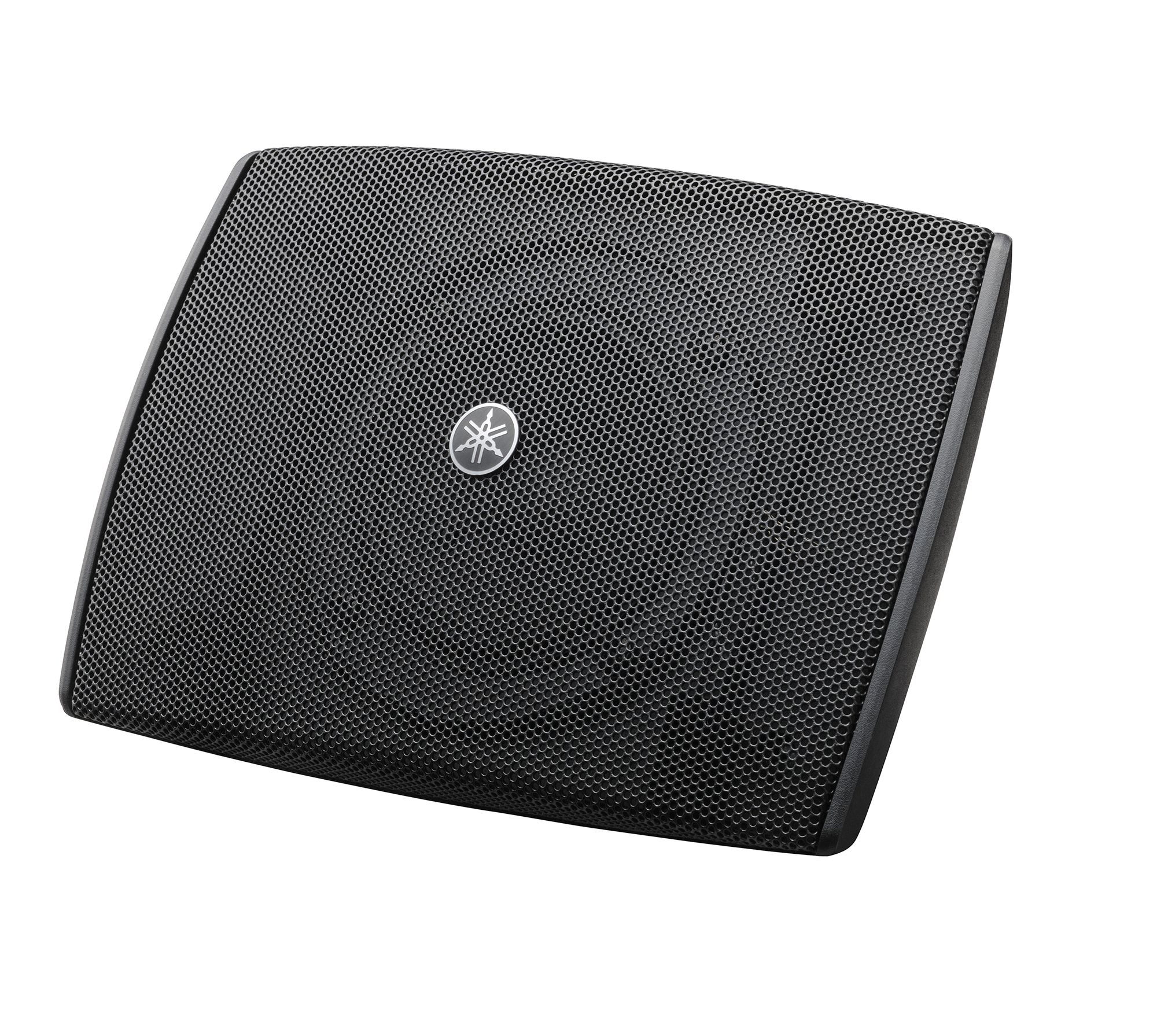

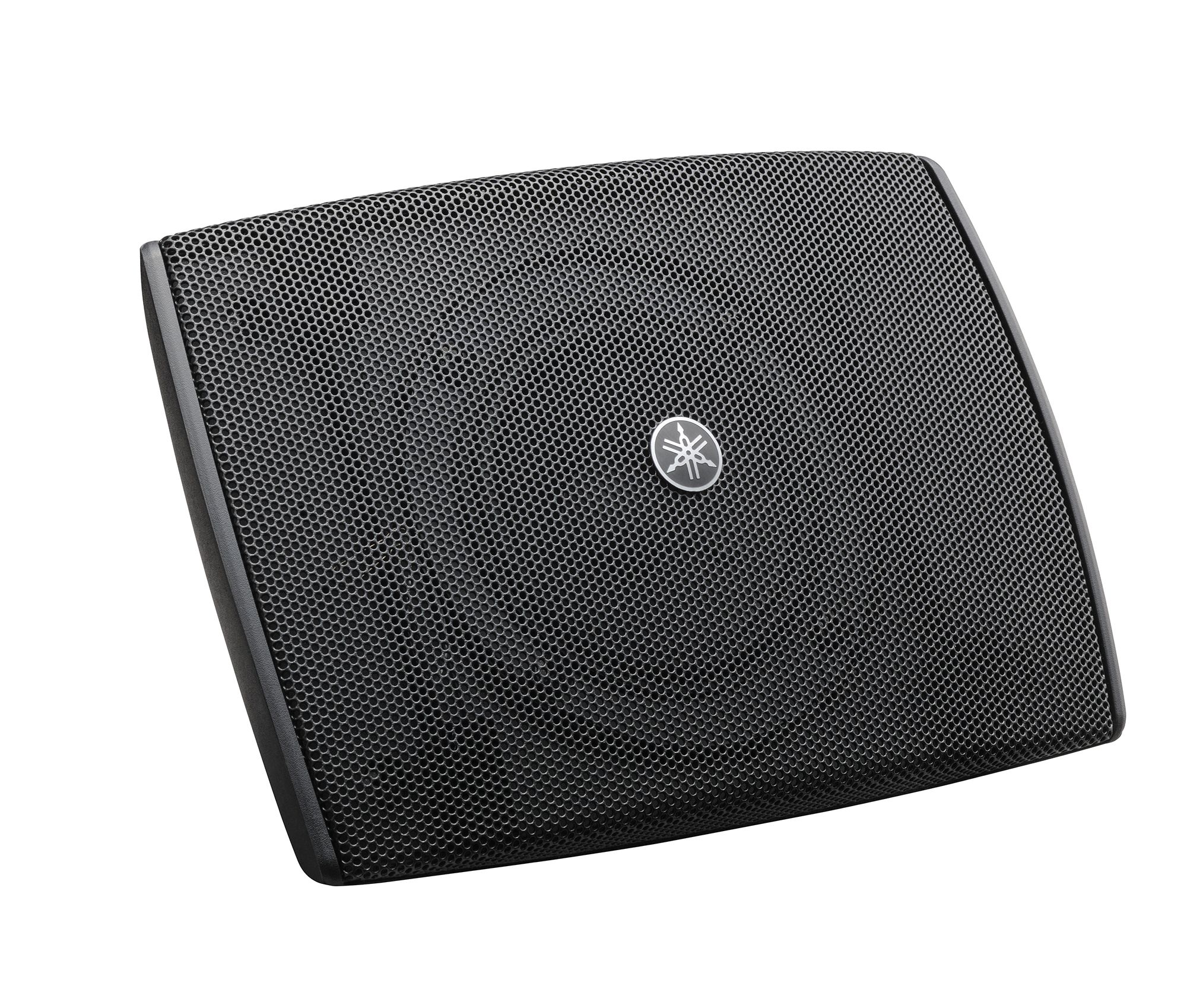

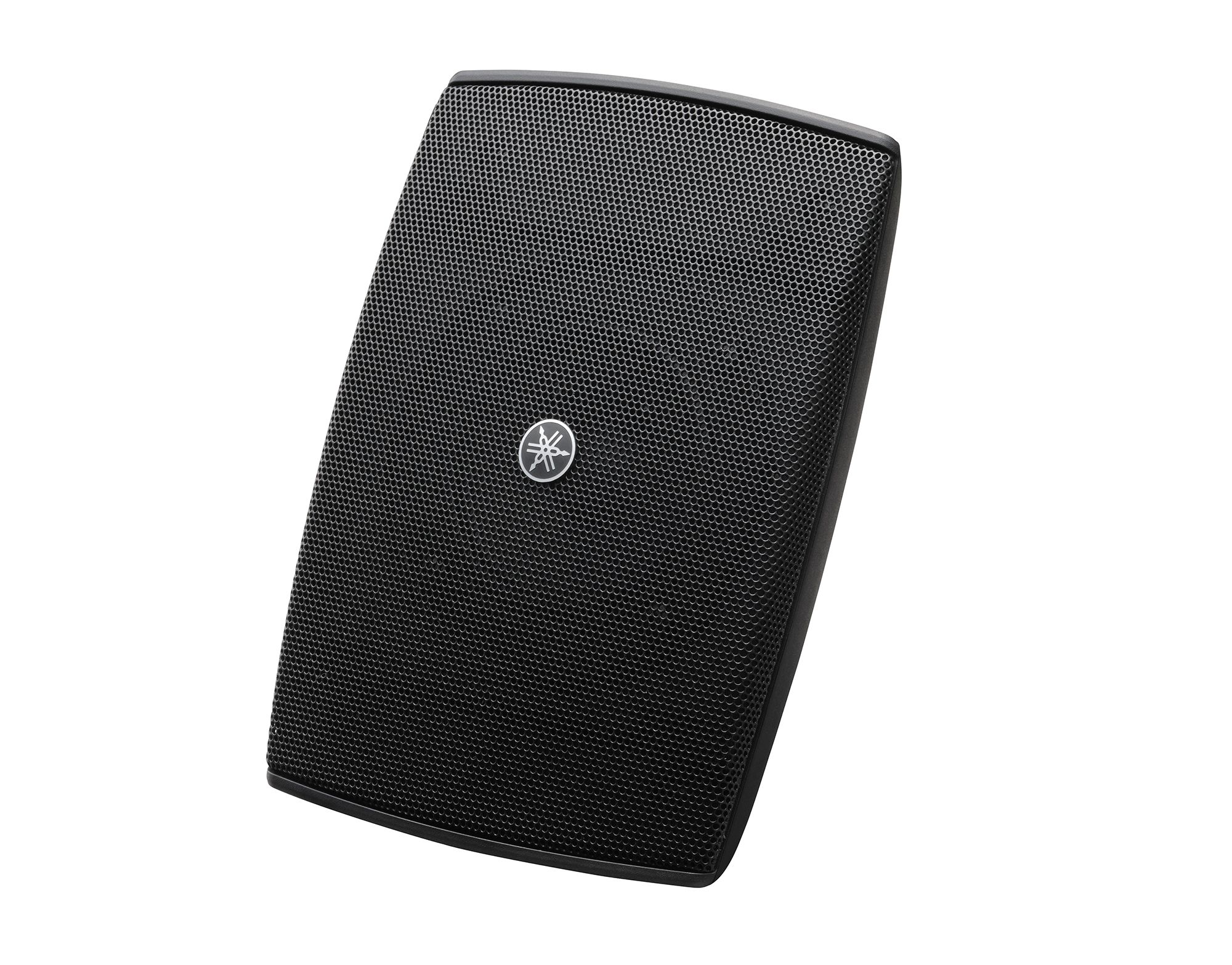

YAMAHA - VXS3

The polished presence of the VXS3F or VXS3FT can add stylish appeal to any environment. These speakers present a slim installed profile that appears to float in space, blending easily with just about any décor. The size of the speaker enclosure has been reduced as much as possible, while smoothly flowing lines and surfaces add visual charisma.

The VXS3F and VXS3FT deliver refined, naturally pleasing sound. In order to provide richly expressive music playback even at low volume, Yamaha has applied years of accumulated skill and experience in tuning the system for the most natural reproduction of musical instruments as well as human voices. Careful selection of the highest quality drivers and components also elevates overall quality.

The VXS3F and VXS3FT are designed to deliver the same outstanding performance in different installed settings*. The VXS3F is ideal for smaller installations such as retail stores where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. The VXS3FT is preferred when a large number of speakers will be required to cover an expansive or complex area. Connection taps allow volume (output watts) to be adjusted after installation for added flexibility. * The VXS3F and VXS3FT feature the same enclosure, but are supplied with different mounting brackets.

General specifications

Speaker type : Full-range, Acoustic suspension

Frequency range (-10dB) : 130Hz -20kHz

Nominal coverage :

• H : 150°
• V : 160°

Components : LF-HF : 3.5″ Cone

Power Rating :

• NOISE : 20W
• PGM : 40W
• PEAK : 80W

Nominal impedance : 8Ω

SPL :

• Sensitivity (1W; 1m on axis) : 86dB SPL *1
• Peak (Calculated) : 105dB SPL

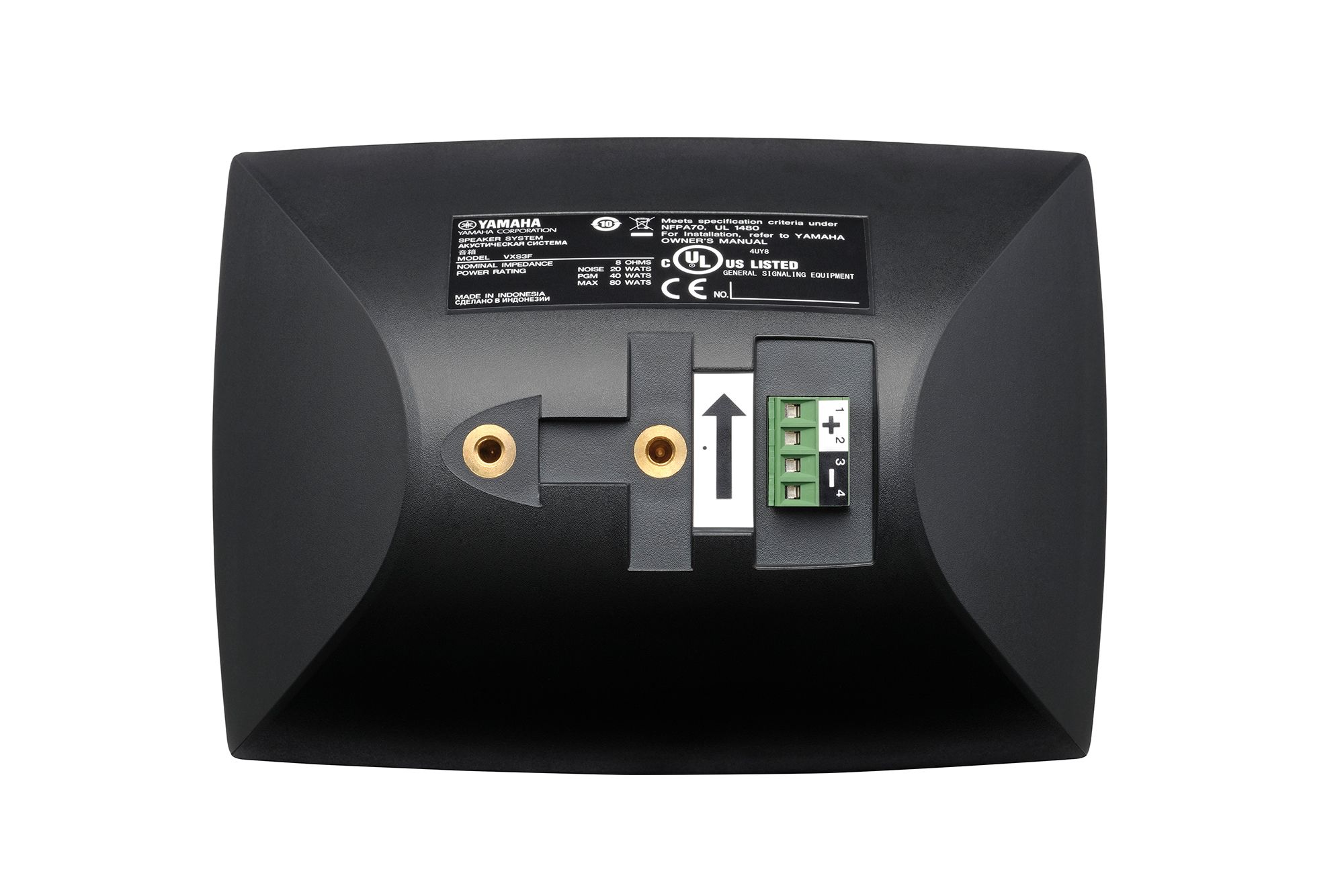

I/O connectors : 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)

Protection circuit :

• Load protection : Full-range power limiting for protecting network and transducers

Finish : VXS3F: Black (approx. Munsell N3), VXS3FW: White (approx. Munsell N9)

Dimensions : 184 x 130 x 134 mm

Net weight : 1.0kg (2.2lbs), 1.1kg (2.4lbs)*4

Accessories : Bracket Gear, Bracket Base, Bracket Cover, Safety Wire

Packaging : Packaged in pairs

Certificate : UL1480, NFPA70, CE, RoHS

Transformer taps : 100V | 70V

*1: Full-space(4π) , 200Hz to 10kHz pink noise
*2: In horizontal cabinet setup
*3: with bracket (in 0° setup)
*4: with bracket
