NEXO - PS15 R2

Vue objet Quickime VR® :

Cliquez-glissez votre souris sur l’objet pour le visualiser en 3D sous 360°

MOST POWERFUL PS-R2 SYSTEM

The PS15-R2 uses a unique cabinet design and rotatable constant directivity asymmetrical dispersion horn to provide both PA and stage monitor performance. The PS15-R2 is extremely light and compact. NEXO’s unique Active Full-range Processing enables a 2-way passive 8Ω design to deliver bi-amped performance using just one amplifier channel for less money, space and complexity. For maximum power handling, the PS15-R2 can be also operated in active bi-amped mode.

Like all NEXO products, the PS15-R2 Loudspeaker is designed to work with advanced electronic processors, guaranteeing consistent performance and reliability of the highest standard.

SYSTEM APPLICATIONS

Near-field portable or installed PA for clubs, A/V, Houses of Worship, Theater, Broadcast, etc.

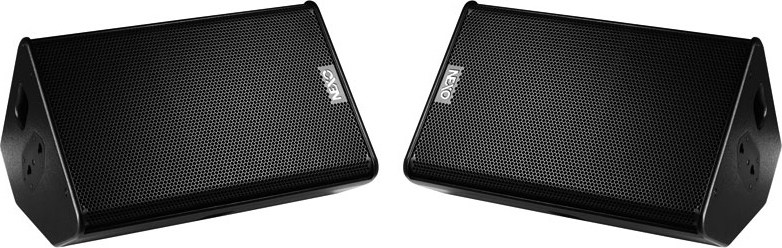

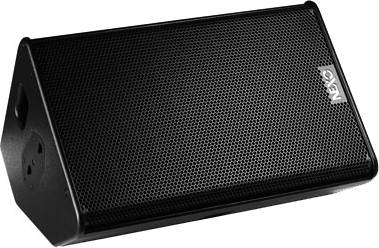

Exceptional stage monitoring for clubs, A/V, theater, broadcast, etc.
Fill-in system in conjunction with NEXO Alpha, AlphaE or GEO systems.

LOUDSPEAKER PRODUCT FEATURES

Components LF 1 x 15″ (38 cm) long excursion Neodymium 8Ω driver.
HF 1 x 2″ throat, 3″ Titanium diaphragm compression driver + Low Distortion, Constant Directivity
Asymmetrical Dispersion Horn.

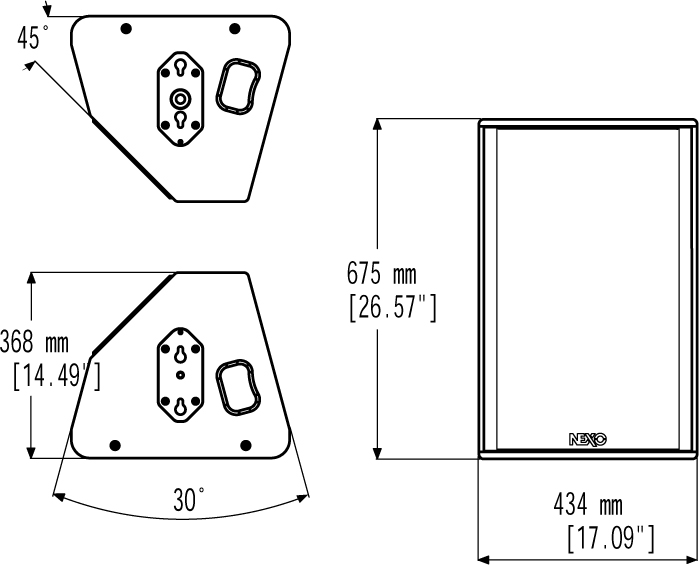

Height x Width x Depth 675 x 434 x 368 mm (26.57″ x 17.08″ x 14.48″).
Weight 28 kg (62 lbs).
Speakon Connectors 2×4 pole in & loop thru (switch passive to active inside).
Construction Baltic Birch Ply finished with structured black coating.
Fittings Handles 2 metal recessed pockets.
Front Finish Moulded dark grey metal grille.

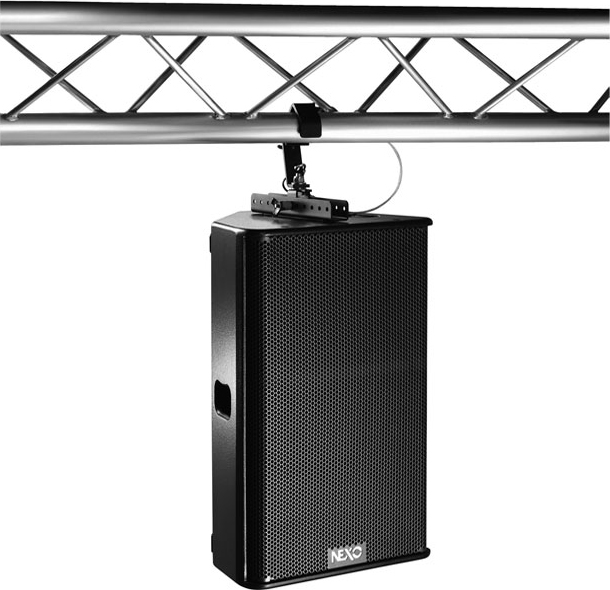

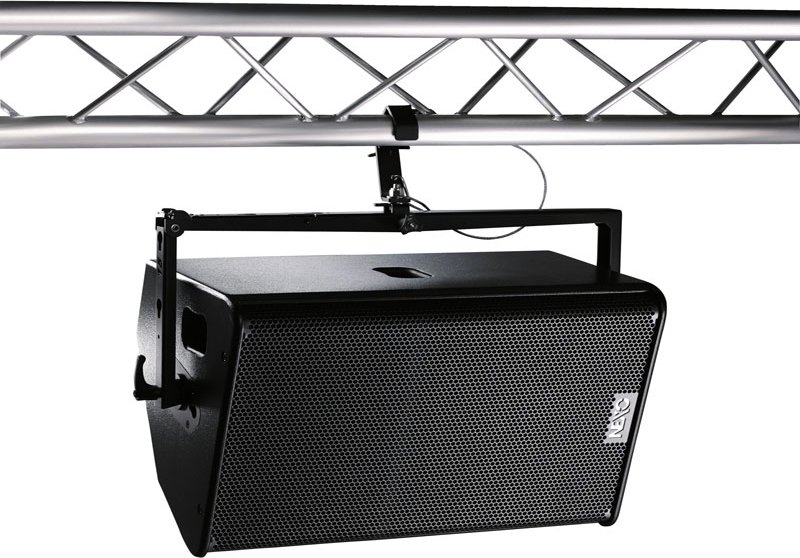

Flying Points Two plate connecting with external accessories.

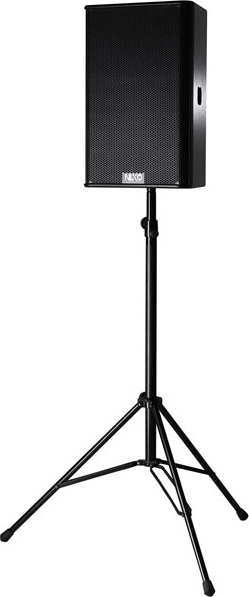

Stand fittings Built in steel stand fitting (35mm / 1 3/8″).

SYSTEM SPECIFICATIONS PS15-R2 with PS15 TDController-R2

Frequency Response [a] 50 Hz – 18 kHz ±3 dB.
Usable Range @-6dB [a] 47 Hz – 18 kHz.
Sensitivity 1W @ 1m [b] 102 dB SPL Nominal / 99 dB SPL Wideband.
Nominal Peak SPL @ 1m [b] 133 to 136 dB Peak.
HF Dispersion [c] 50° to 100° Horizontal x 55° Vertical Rotatable Horn, 4 positions.
Directivity : Q & DI [c] Q : 16 Nominal / DI : 12 dB Nominal ( f > 1.5 kHz ).
Crossover Frequencies 1.1 kHz Passive or Active (internally switchable).
Nominal Impedance Passive 8Ω or Active LF 8Ω, HF 16Ω.
Recommended Amplifiers Passive 1000 to 2000 W 8Ω. Active LF 1000 to 2000 W 8Ω / HF 250 to 500 W 16Ω.
Important: Active mode only available on NXAMP.

SYSTEM OPERATIONS

Electronic Controller The PS15TD Controller-R2 is precisely matched to the PS15-R2 & RS15 cabinets and includes protections. Using
PS15-R2 & RS15 without a properly connected PS15 TDController-R2 will result in poor sound quality and can
damage the components.
Dispersion configuration After dismounting the front grille from its fixings, the HF Horn can be rotated in 4 positions for dispersion configuration.

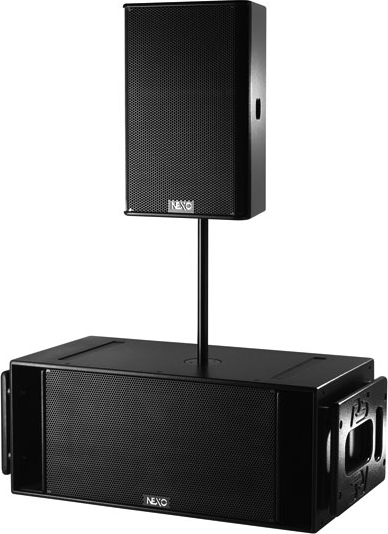

Sub-bass The PS15-R2 can be used without optional RS15 Sub-bass. Active two-way operation with RS15 is included in the
PS15 TDController-R2. One RS15 matches 2 x PS15-R2, additional RS15 may be used for enhanced LF capability.
Speaker Cables PS15R2 are wired 2-/2+ on Input Speakons in Passive Mode. PS1R25 are wired LF 1-/1+ & HF 2-/2° on Input
Speakons in Active Mode. Please refer to RS15 User Manual for RS15 for RS15 connection.
