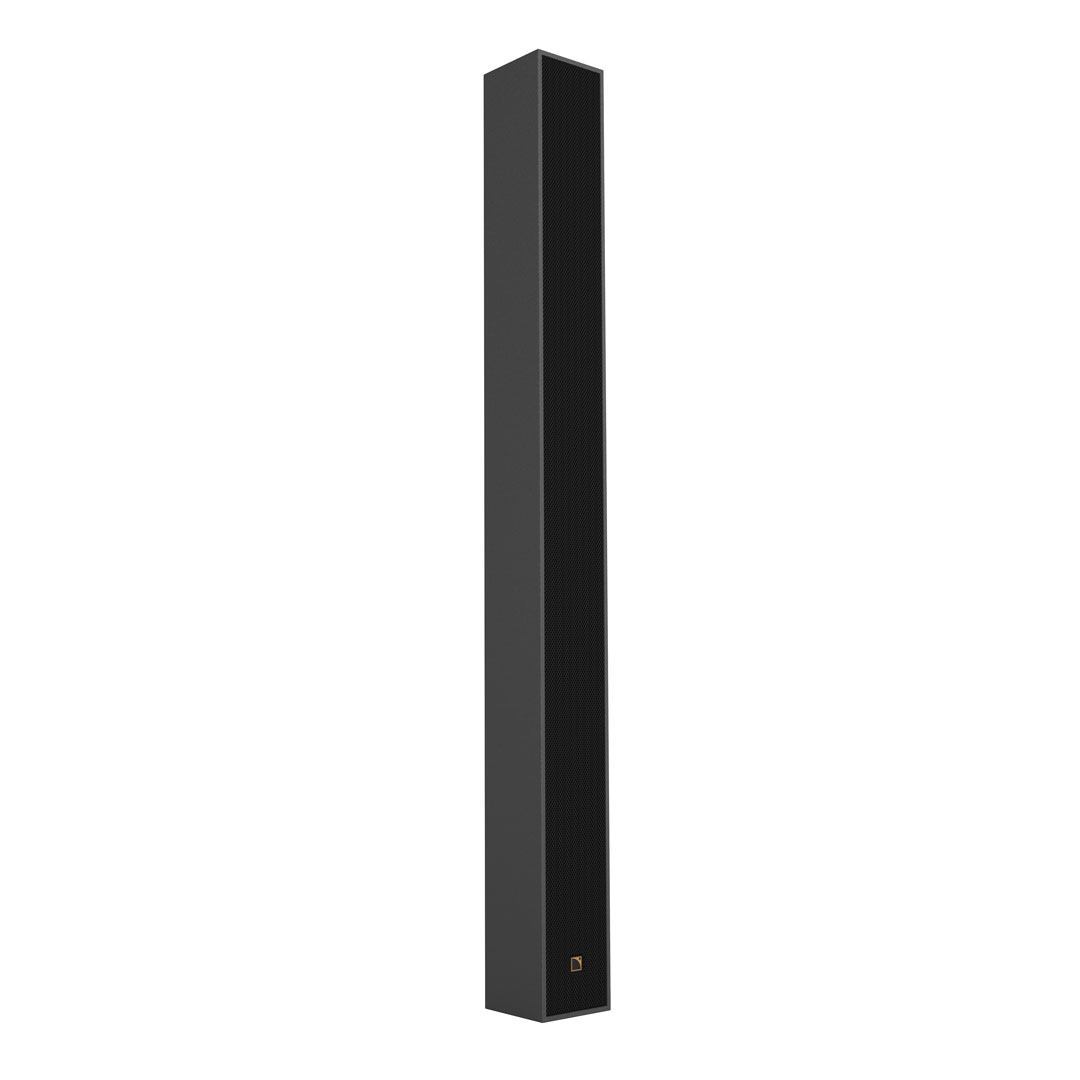

L-ACOUSTICS - Soka
Enceinte 2 voies passives LF = 9x3.5",HF=3x1", couverture horizontale 140°
Propriétés techniques
- Poids unitaire : 9.4 kg
- Dimensions unitaires : 1065 x 99 x 104,2 mm
Documents à télécharger
Détails produit
Electroacoustic specs
Usable bandwidth (-10 dB) :
- 60 Hz – 20 kHz ([SOKA_60])
- 100 Hz – 20 kHz ([SOKA])
- 200 Hz – 20 kHz ([SOKA_200])
Maximum SPL
Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
- 124 dB ([SOKA_60])
- 130 dB ([SOKA])
- 133 dB ([SOKA_200])
Nominal directivity (-6 dB)
- Vertical: +5°/-21°
- horizontal: 140°
Transducers
- MF: 9 × 3.5″ cone drivers
- HF: 3 × 1″ diaphragm compression drivers
Acoustical load
- LF: closed enclosure
- HF: DOSC waveguide; L-Fins
Nominal impedance
- 8 Ω
Physical specs
Connectors
- 1 x 4-point screw terminal
Rigging and handling
- 6 M6 inserts for in-wall accessory and safety
- In-wall version
Weight (net)
- 9.4 kg / 20.3 lb
Cabinet
- Premium grade Baltic beech and birch plywood
Front
- Coated steel grill
- Acoustically neutral 3D fabric
Finish
- Dark grey brown Pantone 426 C
- pure white RAL 9010
- custom RAL code on special order
IP
- IP55
