SHURE - UA874E
Antenne directive amplifiée large bande (470 à 698MHz). Gain antenne 7,5dBi. Gain ampli -6dB / 0dB / +6dB / +12dB commutable
Informations
- Codart : UA874E
Propriétés techniques
- Poids unitaire : 317g
- Dimensions unitaires : 316 x 359 x 355 mm
Documents à télécharger
Détails produit
An integrated amplifier with four gain settings compensates for varying degrees of coaxial cable signal loss.

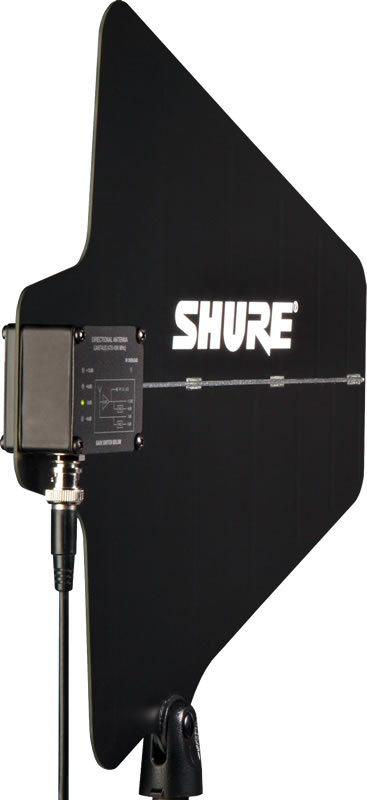

The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
Features
- Compatible with all Shure wireless receivers and antenna distribution systems that provide 12 V DC bias

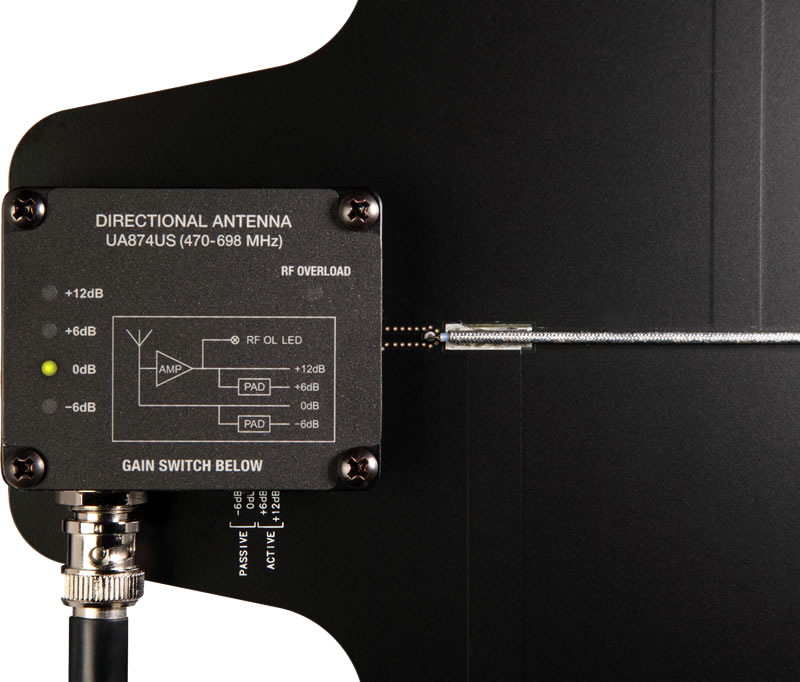

- Four-position gain selector switch
- Low-noise signal amplifier that compensates for transmission loss in coaxial cable
- Integrated threaded adapter that mounts easily to microphones stands
- Legendary Shure build quality and reliability
Specifications
- Connector Type BNC, Female
- Impedance 50 Ohms
- Power Requirements 10 to 15 V DC bias from coaxial connection, 75 mA
- Reception Pattern 70 degrees
- Third-order Intercept Point >30 dBm
- Antenna Gain (On Axis) 7.5 dBi
- RF Signal Gain +/- 1dB Switchable: +12 dB, +6 dB, 0 dB, -6 dB
- RF Overload LED Threshold -5 dBm
