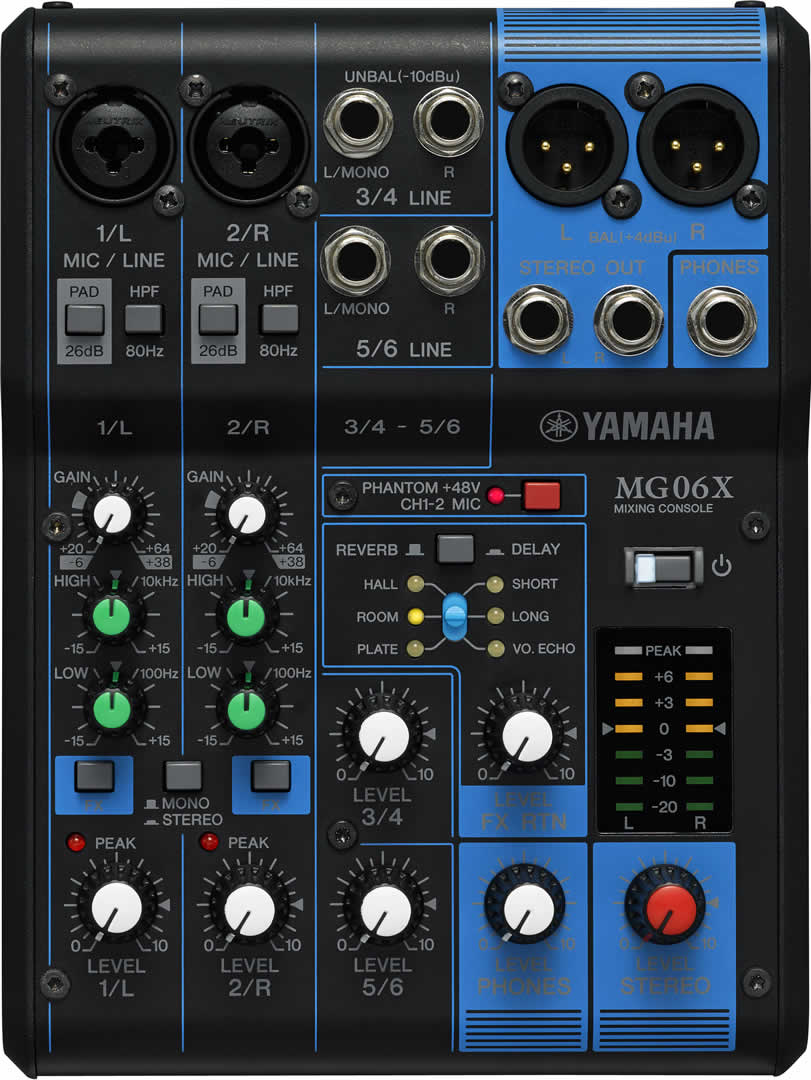

YAMAHA - MG06X
Console de mixage 6 canaux - 2 entrées micro, 6 entrées ligne (2 mono + 2 stéréo), 1 bus stéréo, 1 multi-effet SPX- Codart : MG06X
- Consommation électrique : 12 W
- Dimensions unitaires : 149 x 62 x x202 mm
- Poids unitaire : 0,9 kg
- Dimensions en flight-case (X1) : 40 x 32 x 10 cm
- Poids en flight-case (X1) : 3 kg
Documents à télécharger
Détails produit
Caractéristiques techniquesOutline
Mixing capability : On-board processors, SPX algorithm: 6 programs
I/O : Phantom power +48 V
Input Channels
Mono[MIC/LINE] : 2
Stereo[LINE] : 2
Output Channels
STEREO OUT : 2
PHONES : 1
Bus : Stereo: 1
Input Channel Function
PAD : 26 dB (Mono)
HPF : 80 Hz, 12 dB/oct (Mono)
EQ HIGH : (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW : (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter : 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
General specifications
Total harmonic distortion : 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency response : +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise : -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk : -88 dB

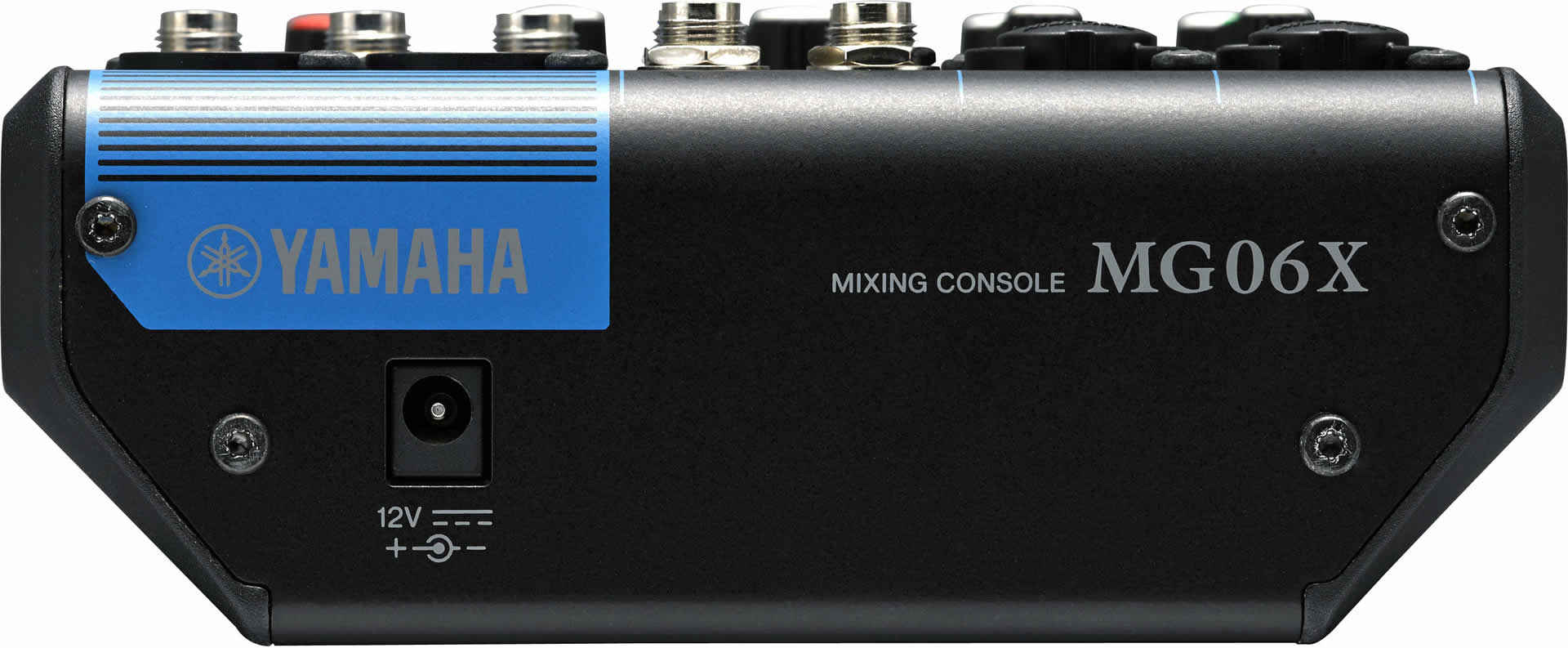

Power requirements : PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
Operating Temperature : 0 to +40?C
