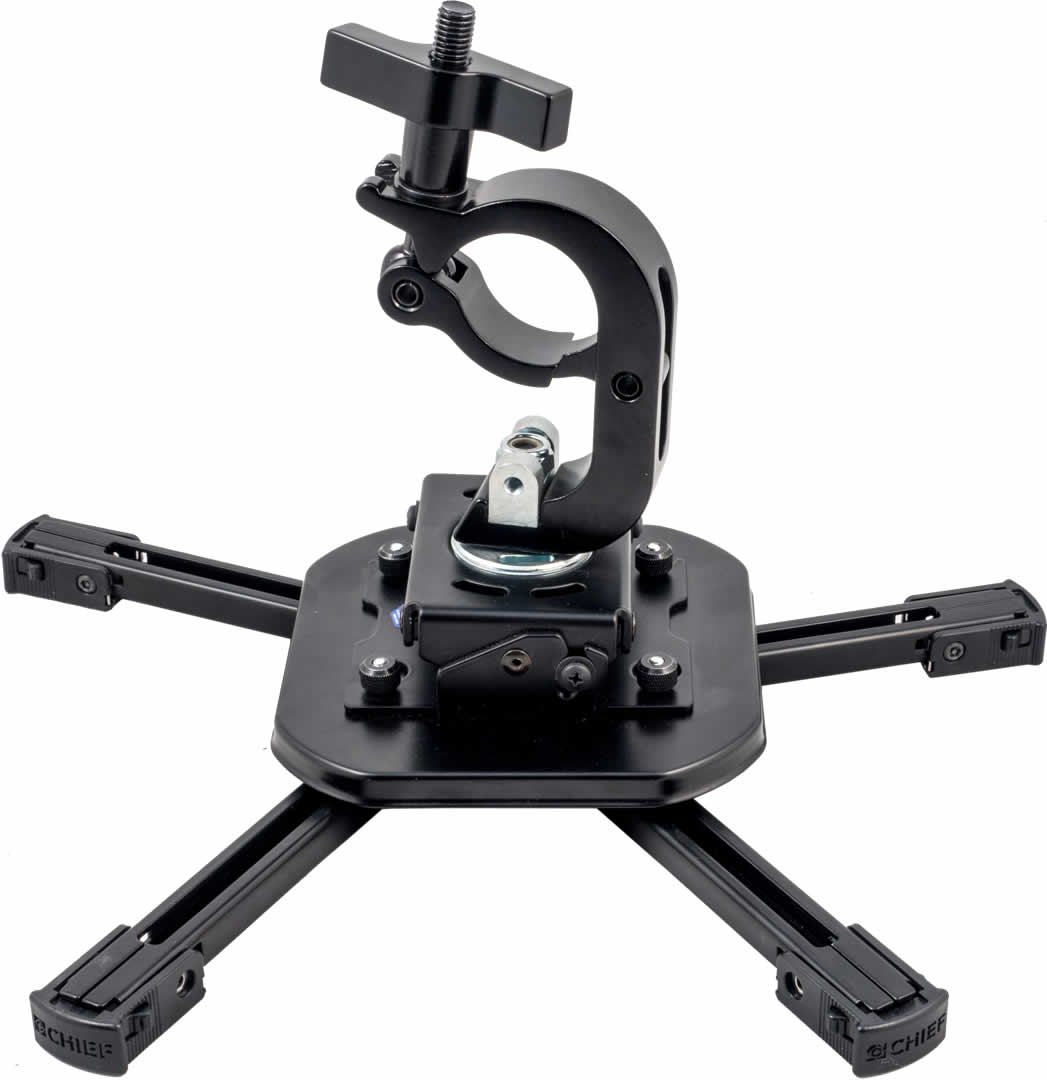

Chief - RSEU

Pin Connection Universal Projector Mount – 11kg
The RSEU was designed specifically for use in  Europe, Middle East, and Africa and is only available in those regions.  Chief’s projector solutions feature a convenient pin-connection column system focusing on speed of installation.
The RSEU features a universal interface that offers a compact design for smaller projectors with all the same great features as the standard RPA Series.

Features

• Compact design is smaller than the RPA by 1/3 and includes the same great features
• Independent roll, pitch and yaw for quick and precise projector registration
• Quick connect/disconnect with convenient lamp and filter access on most projectors
• Disconnecting maintains registration and doesn’t affect preset adjustments
• All-Points Security steel-into-steel locking hardware at all connection points protects against theft

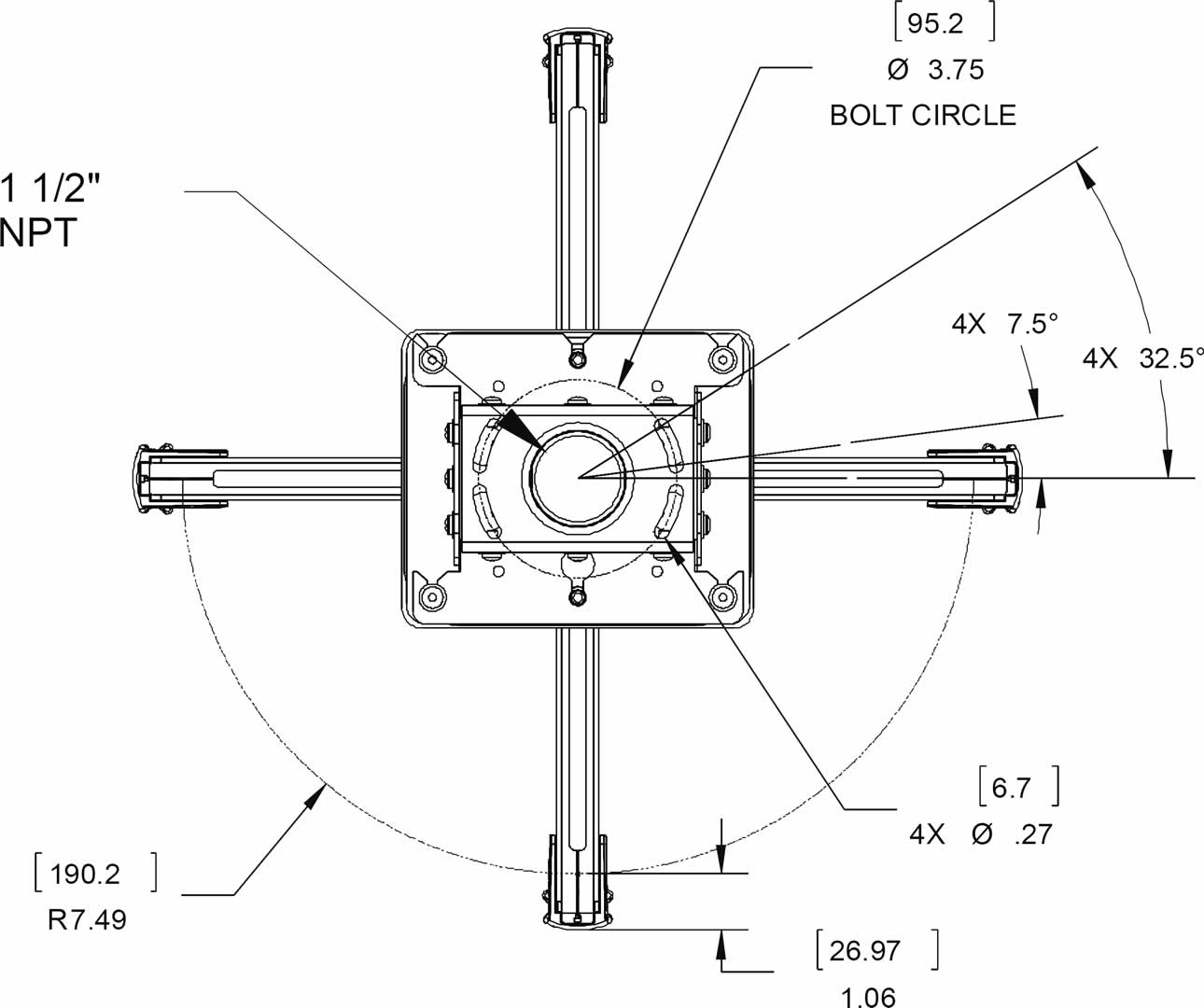

• Multiple installation options including: flush mount to ceiling, use 0.25″ threaded rods, or use a 1.5″ NPT column
• Supports external cable management along side of CPAE Columns
• Compatible with CPA Plates
• Also compatible with Chief’s CMS columns and 1.5″ NPT threaded accessories

Specifications

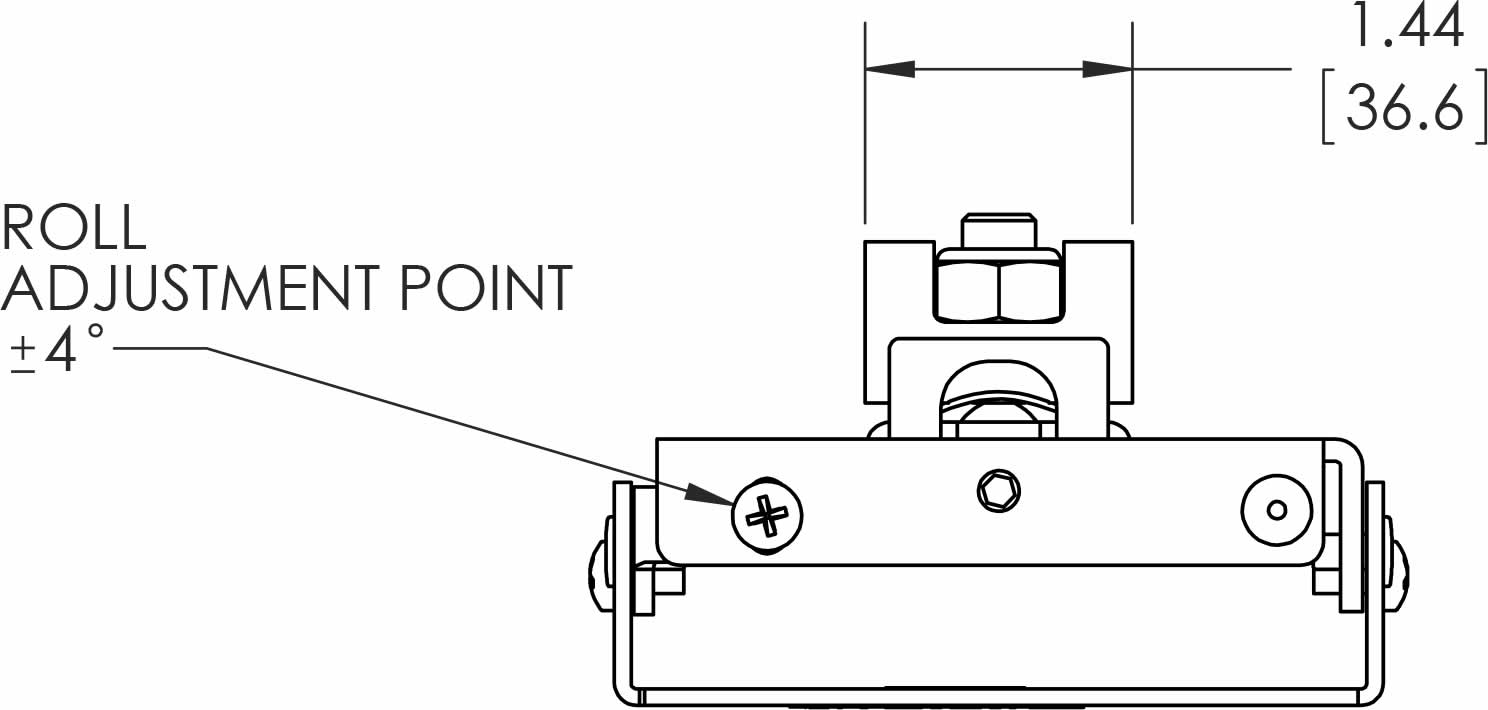

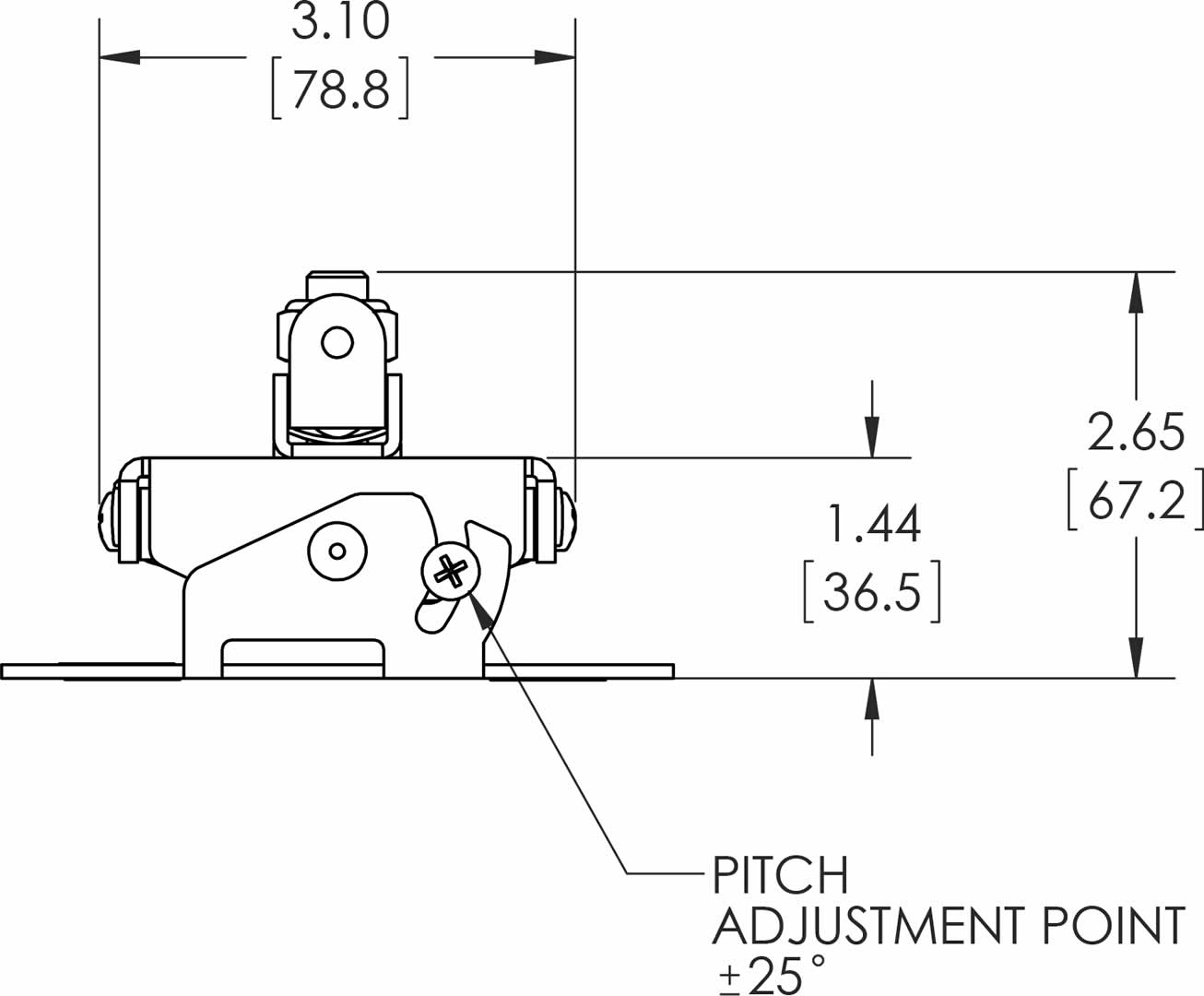

• Adjustments : Roll: 3° Pitch: 20° Yaw: 360°
• Certifications : TUV Certified
• Color : Black
• Solution Type : Universal
• Weight Capacity : 25 lbs (11.3 kg)
