SWIT - FLOW 500
Distributeur 3G SDI & HDMI 500ft/150m
Informations
- Codart : FLOW500-SET
Propriétés techniques
- Dimensions unitaires : 66 x 106.5 x 24.7 mm
- Poids unitaire : 236g
- Consommation électrique : 8W
Documents à télécharger
Détails produit

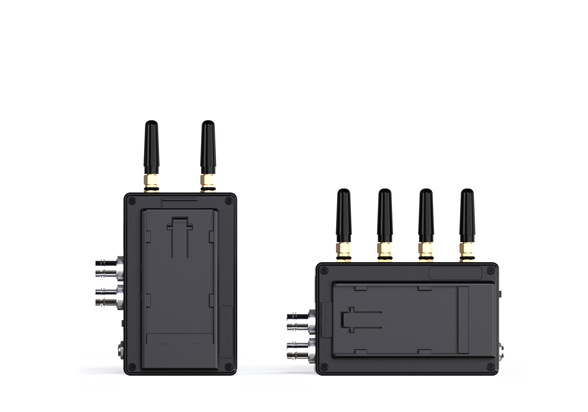

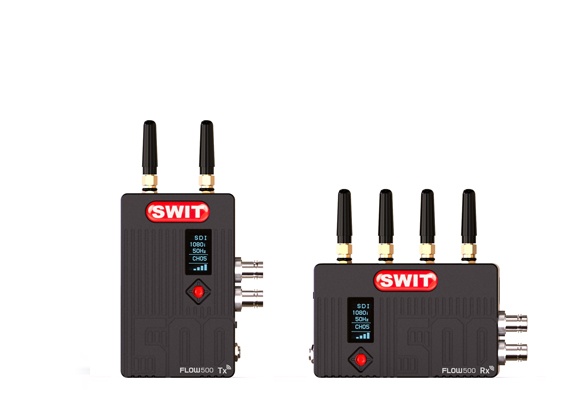

FLOW500 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 500 feet (150 meters) Line-of-Sight distance. The system is pure hardware con- nection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

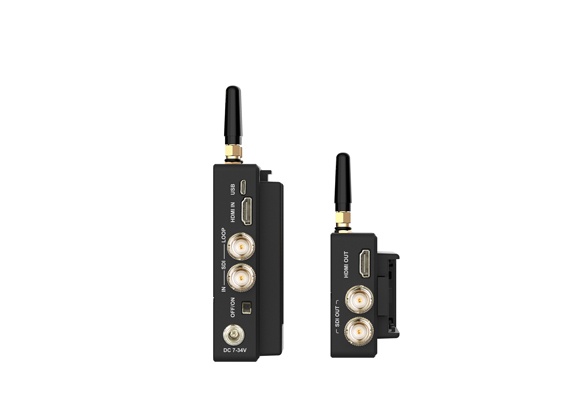

Input & Output
The Transmitter (Tx) has 2 omni antennas, supports
- 1x 3G/HD-SDI input
- 1x 3G/HD-SDI loop output
- 1x HDMI 1.3 input
The Receiver (Rx) has 4 omni antennas, supports
- 2x 3G/HD-SDI output
- 1x HDMI 1.3 output
SDI & HDMI formats:
- 1080p60, 1080p59.94, 1080p50
- 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
- 1080psf23.98, 1080psf24
- 1080i60, 1080i59.94, 1080i50;
- 720p60, 720p59.94, 720p50
