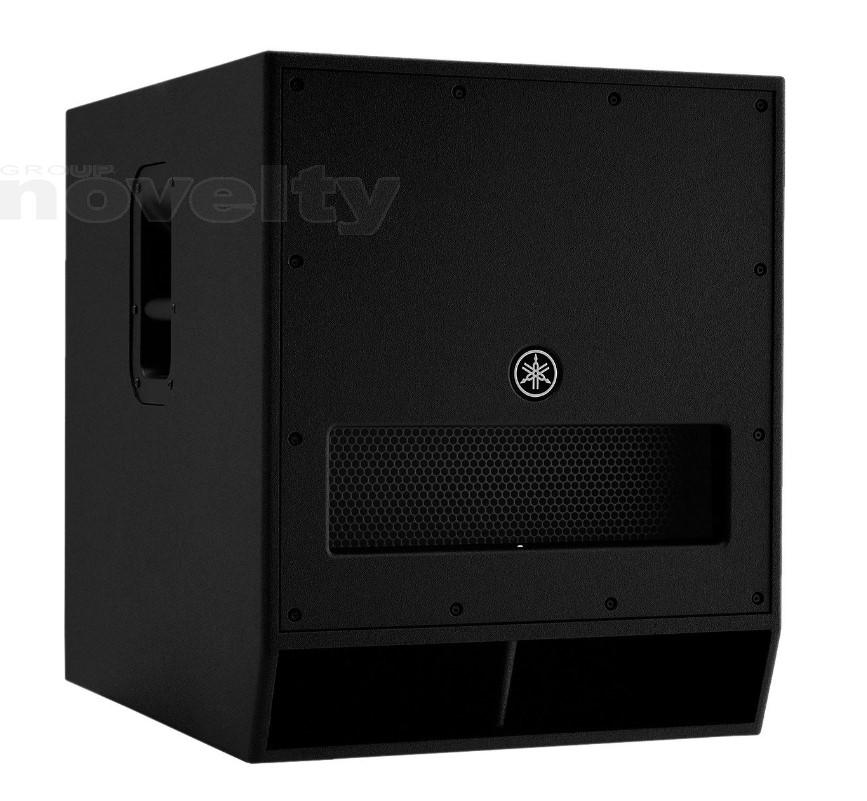

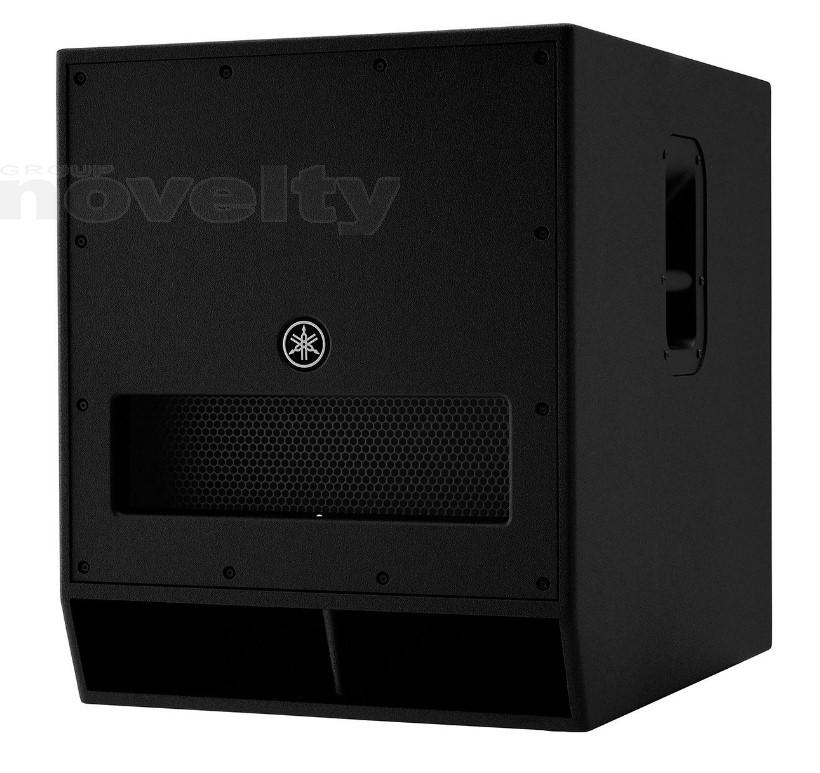

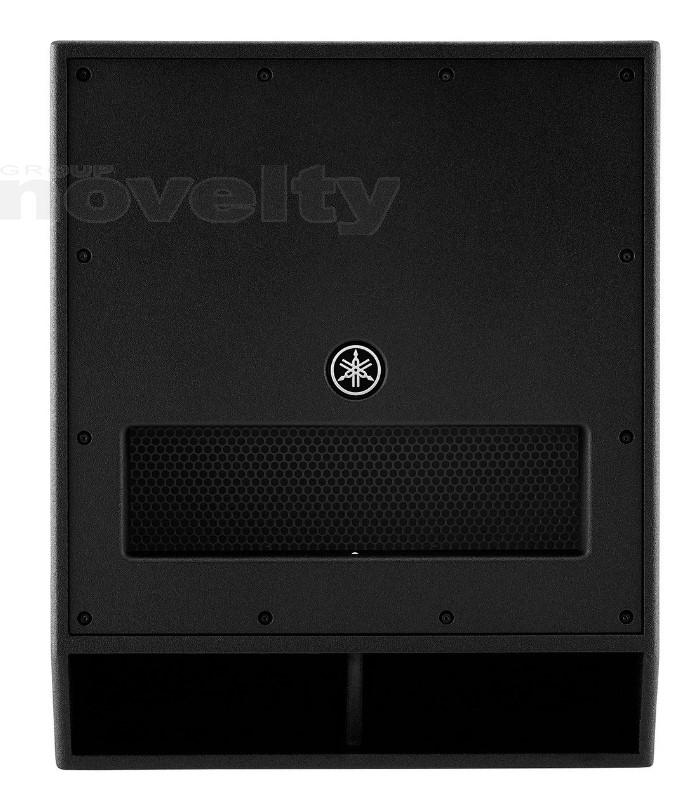

YAMAHA DXS18
Caisson de graves Amplifiée
Descriptions détaillées
Specifications- Speaker type : Powered Subwoofer, bass-reflex
- Frequency range (-10dB) : 30Hz - 150Hz
- Components
- LF 18" Cone, 4" Voice Coil, Ferrite magnet
- Sampling frequency rate
- Internal : 96kHz and FIR Filter
- A/D D/A Converters : 96kHz AD/DA
- Maximum output level (1m; on axis) : 136dB SPL *1
- SRC : Yes
- Power rating
- Dynamic : 1600W *2
- Burst (20ms) : 1300W
- Continuous : 1200W
- I/O Connectors
- Analog I/O : Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
- Digital I/O : Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
- Others : USB2.0 Host 5V 500mA for USB memory DATA storage/load
- AC : IEC AC inlet x1 (V-Lock)
- Amplifier class : Class-D
- Cooling : Fan cooling, Variable speeds
- Power consumption : 40W (Idle), 180W (1/8)
- Handle : Aluminium die-cast, Side x2
- Dimensions
- W 550 mm (21.7")
- H 657 mm (25.9") (with rubber feet)
- D 720 mm (28.3")
- Net weight : 48.9kg (107.8lbs)
- Options : Cover: SPCVR-DXS18X, Caster: SPW-1
- Others : Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
- Pole socket : Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
*1: Measured peak SPL with pink noise @1m.
*2: Total peak power of individual outputs (AC 120V, 25?). This value was measured at minimum load impedance, with protection released.
Informations
- Référence : DXS18
- Codart : DXS18
- Télécharger nos catalogues PDF
Propriétés techniques
- Consommation électrique : 1600W
- Dimensions unitaires : 550 x 657 x 720 mm
- Poids unitaire : 48,9kg
