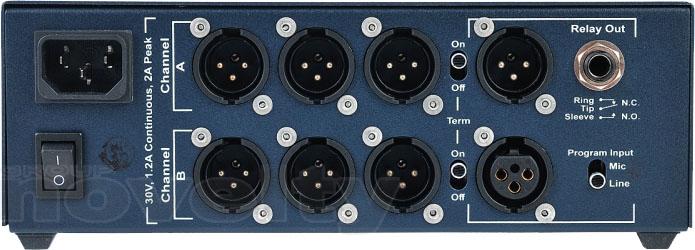

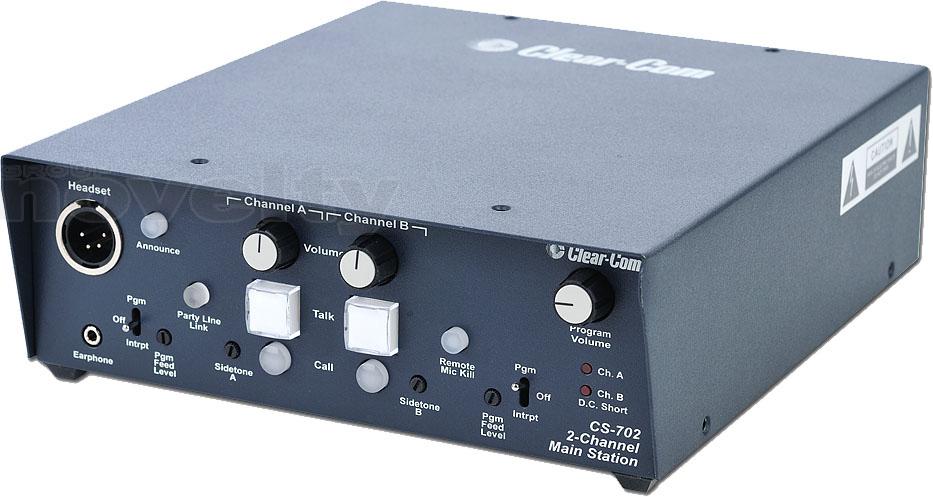

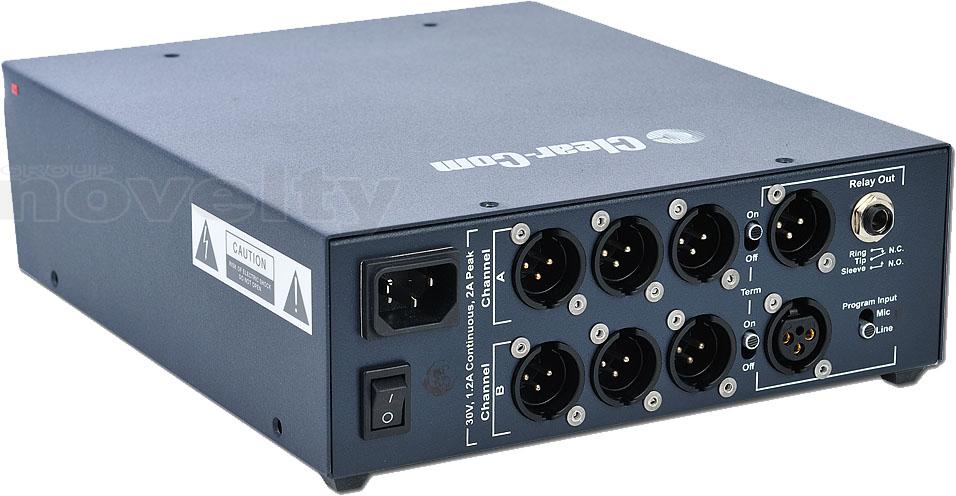

CLEARCOM CS-702

Descriptions détaillées

• 2-Channel Compact Main Station
• Supports up to 55 beltpacks or 7 speaker stations on 2 channels
• Automatic short-circuit protection and reset with LED indicators
• Individual volume controls for each channel
• Mic-or line-level program with selectable Program Interrupt
• Remote Mic Kill
• Stage Announce with relay
• Channel A & B Link switch to operate as a one-channel system
• Built-in 1-amp power supply – CE approved, UL Listed

• Headset Microphone
  • Input Type: Dynamic
  • Input Impedance: >= 1K
  • Mic Limiter Threshold: 0dBu ± 3dB
  • Mic Limiter Range: >= 15dB
• Program Line Input
  • Maximum Level before Clipping: >= 20dBu
  • Input Impedance: >= 5K
• Program Mic Input
  • Maximum Level before Clipping : >= -35dB
  • Input Impedance: >= 1K
• Headset Output
  • Load Impedance: >= 8
  • Output Impedance: <= 25
  • Output Limiter Threshold: +5dBu ± 3dB
  • Maximum Output Level before Distortion: >= 17dBu
• Partyline Output
  • O Noise : < -74dBu
  • Output Impedance : >10K
• Partyline Input
  • Crosstalk: <-60dB
  • Max level before Clipping: >= 12dBu
  • Sidetone Null Capability: > 25dB
• Stage Announce/Balanced Line Out
  • Type: Balanced Output Impedance: >= 200
  • Load Impedance: >= 600
• Frequency Response
  • Headset Mic – Partyline :200 – 18KHz ± 3dB
  • Headset Mic – Line Out: 200 – 18KHz ± 3dB
  • Program Input – Partyline: 200 – 20KHz ± 3dB
  • Program Input – Headset Out :200 – 18KHz ± 3dB
  • Partyline – Headset Out :200 – 18KHz ± 3dB
• Max Distortion
  • Headset Mic – Partyline: <= 0.5%
  • Headset Mic – Line Out: <= 0.5%
  • Program Input – Partyline: <= 0.2%
  • Program Input – Headset Out: <= 0.2%
  • Partyline – Headset Out: <= 0.2%
• Noise
  • Headset Mic – Partyline: < -70dBu
  • Program Input – Partyline: < -85dBu
  • Program Mic – Partyline: < -70dBu
  • Program Input – Headset Out: < -60dBu
  • Program Mic – Headset Out: < -40dBu
  • Partyline – Headset Out: < -50dBu
• Max Gain
  • Headset Mic – Partyline: 41dB ± 2dB
  • Headset Mic – Announce Out: 55dB ± 3dB
  • Program Input – Partyline: >= -16dB
  • Program Mic – Partyline: 41dB ± 2dB
  • Program Input – Headset Out: >= 18dB
  • Program Mic – Headset Out: >= 70dB
  • Partyline – Headset Out: >= 34dB
• Mains Power
  • Input Voltage Range: 100 – 240 VAC
  • Input Frequency Range: 50 – 60 Hz
  • Input Power: <= 60 VAC
  • Output Voltage: 30 VDC ± 0.5V
  • Output Current per Channel (Continuous): 1.2 A
• Output Current per Channel
  • (Peak): 2 A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
  • Short Circuit Recovery Time (1st short):<= 0.5 sec
  • Short Circuit Recovery Time >= 20 shorts in 20sec):<= 20 sec
• Environmental
  • 32 – 122°F (0 – 50°C)
