Walhberg Lifting Column

Descriptions détaillées

The Lifting Column is designed with an integrated DC Motor Controller. This is a great advantage because it is very easy to control since you can control everything directly from your lighting desk via DMX. It is a very compact design with an integrated guide and actuator pushing your equipment from 97 cm – from 81 cm up to 178 cm.

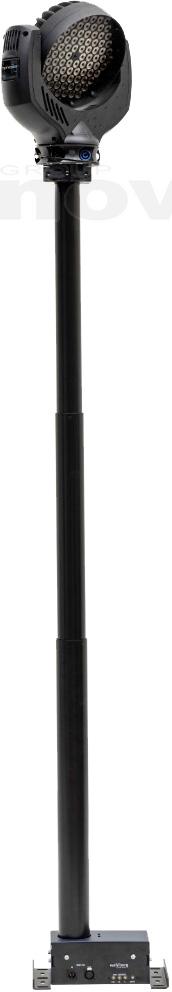

It is your simple elevation tool for lights, moving heads, props, platforms and other light items in concerts, shows or theater production.

You can control the Lifting Column with just 3 DMX channels. With these channels you can control both the positions, lifting speed and limits as well as reset functions.

It has highly accurate positioning control with the DMX control. Furthermore, it is easy to transport, so perfect for touring events and on-site productions.

Lifting Column – A Tool With Great Details
With up to 60 kilos of pushing capacity it makes your possibilities countless. You can use the Lifting Column for many purposes to make elevating effects for your stage equipment.

Additionally, it is also possible to mount the unit at different angles and push the equipment in different angles. For sideways mounting the load limit is 10 kilos.

There is no risk of rotation/twisting since the shaft is fixed. It has been reinforced with an optimized motor housing that is designed for extra strength and stability. In other words, your equipment is very stable both in still positions and while in motion.

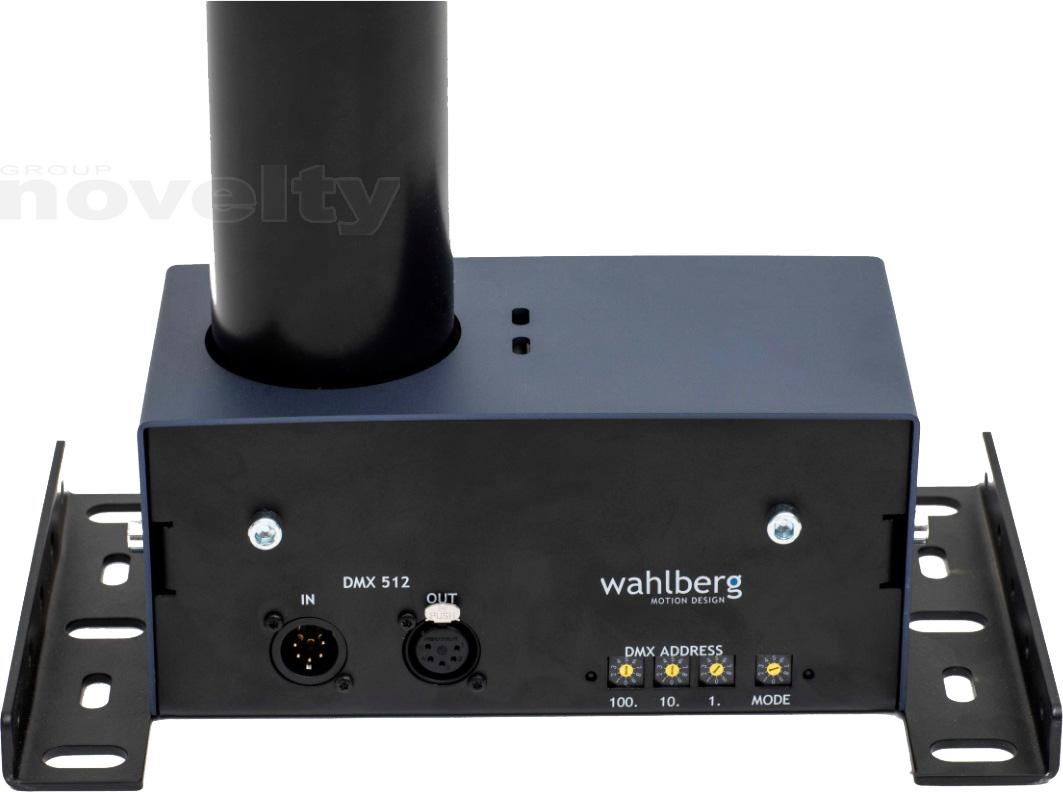

You can easily daisy chain several Lifting Columns with the power in-out and DMX in-Out. This allows you to create advanced and dynamic movements with 100’s of lifting columns working together in the same installation.

Technical Details

• Lifting capacity - Pushing up : 60 kg (132.3 lb)
• Lifting capacity - Pushing sideways : 10 kg (22 lb)
• Lifting capacity - Pulling up : Not recommended

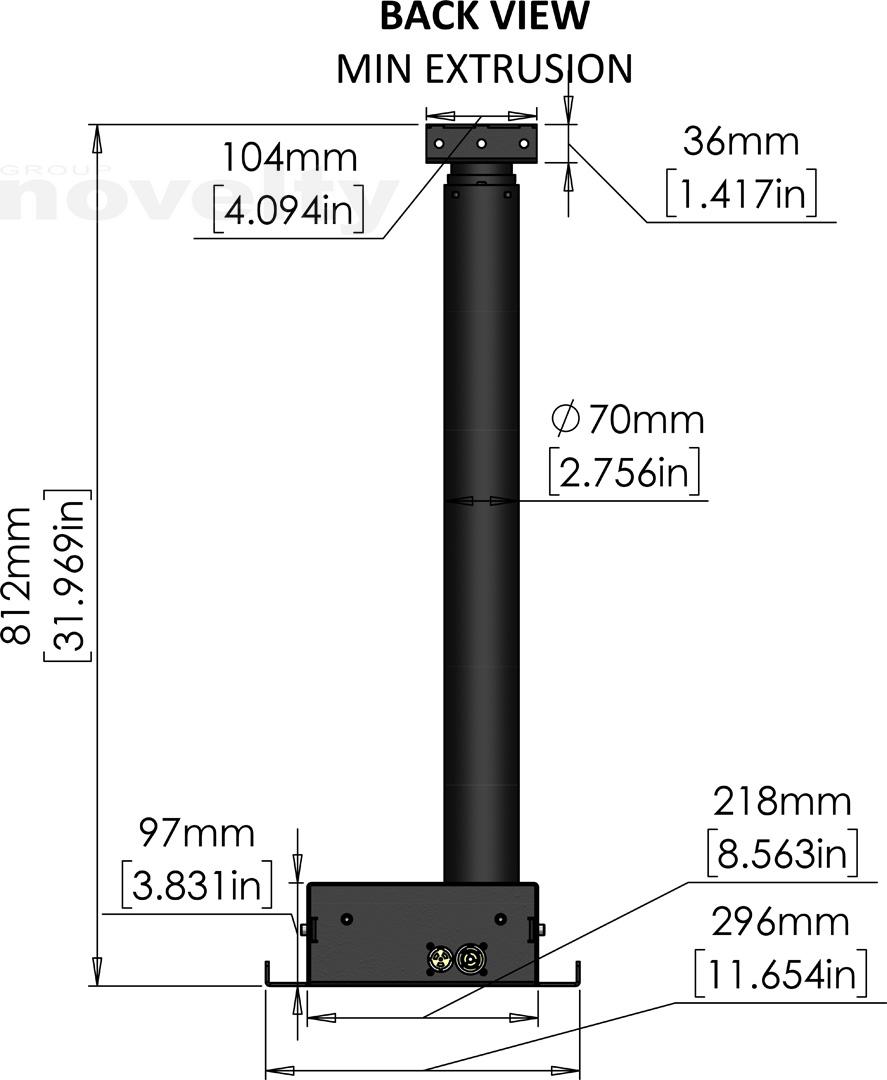

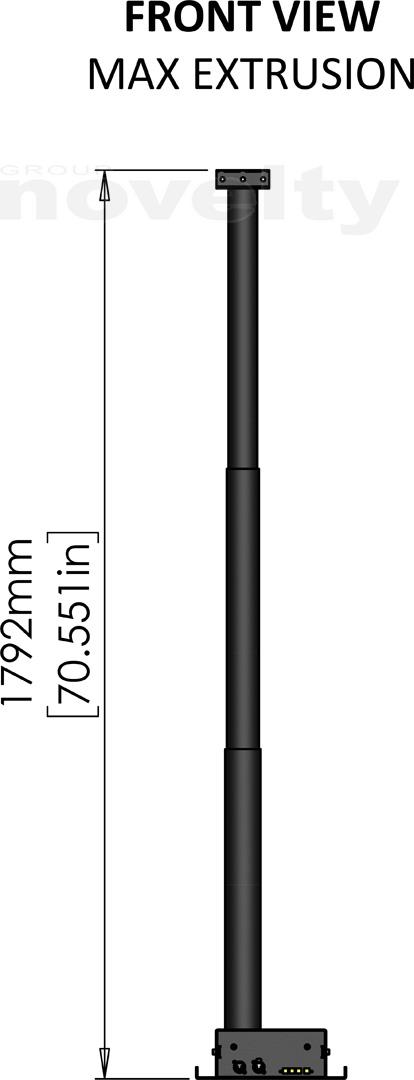

• Lifting height  : 97 cm (81-178 cm) (38.2 in (31.9-70.1 in))
• Lifting speed : 0-5,5 cm/s (0-2.2 in/s)
• Voltage : 100-240 VAC
• Frequency : 50-60 Hz
• Power consumption : 150 W (1,5-0,63A)
• Power inlet : Neutrik powerCON TRUE1 NACPX (F/M)
• DMX control signal : DMX 512 1990+DMX512A
• DMX channels : 6
• DMX control connection : 5 Pole XLR (F/M)
• Noise emission : ≈55 dB at 1 m (3.3 ft)
• Ambient temperature : 5-40 °C (41-104 °F)

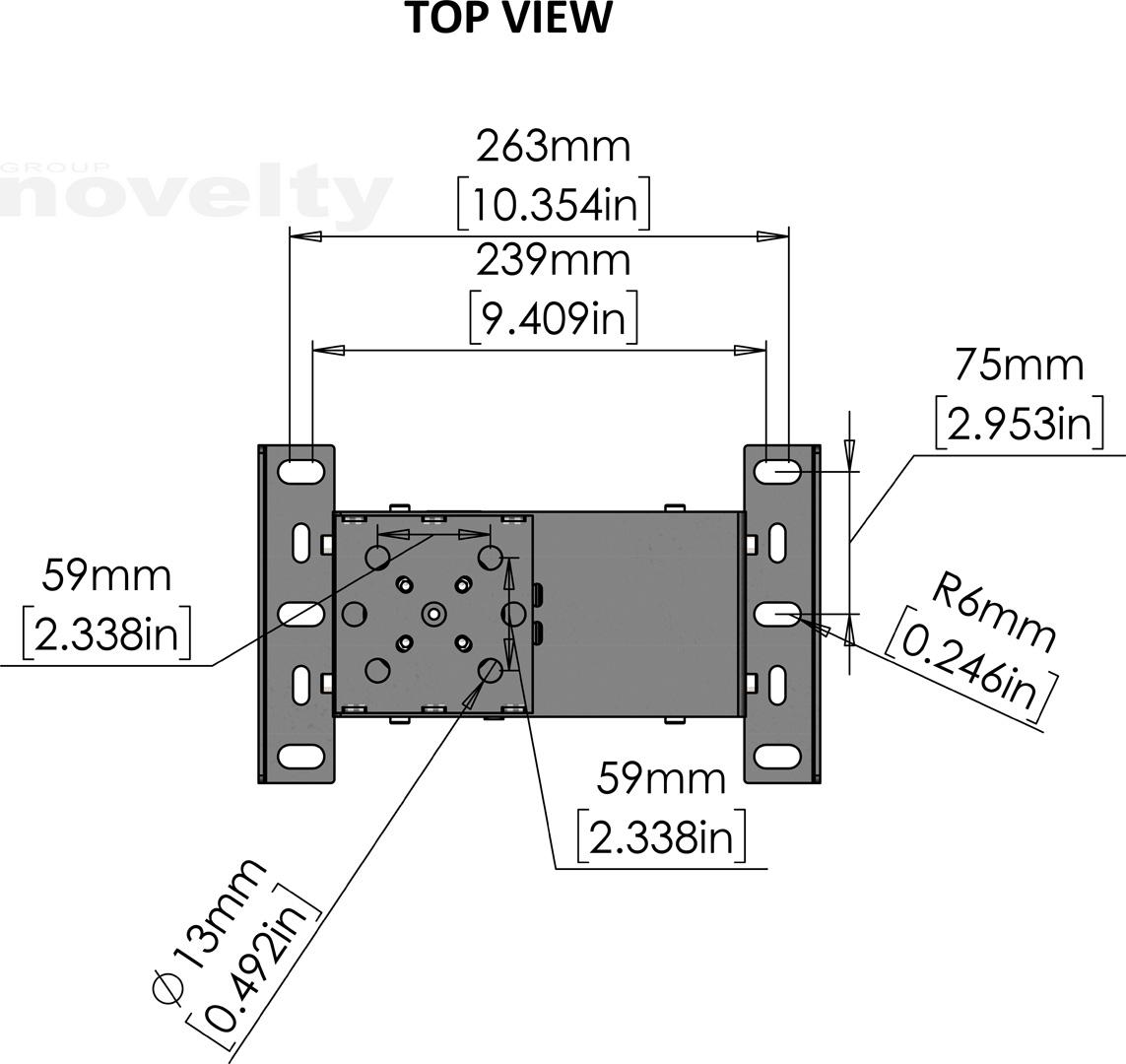

• Mounting clamp : 4 x M12 Screw holes
• Motor : 24 VDC
• Duty cycle : 10-30 % depending on load and speed
