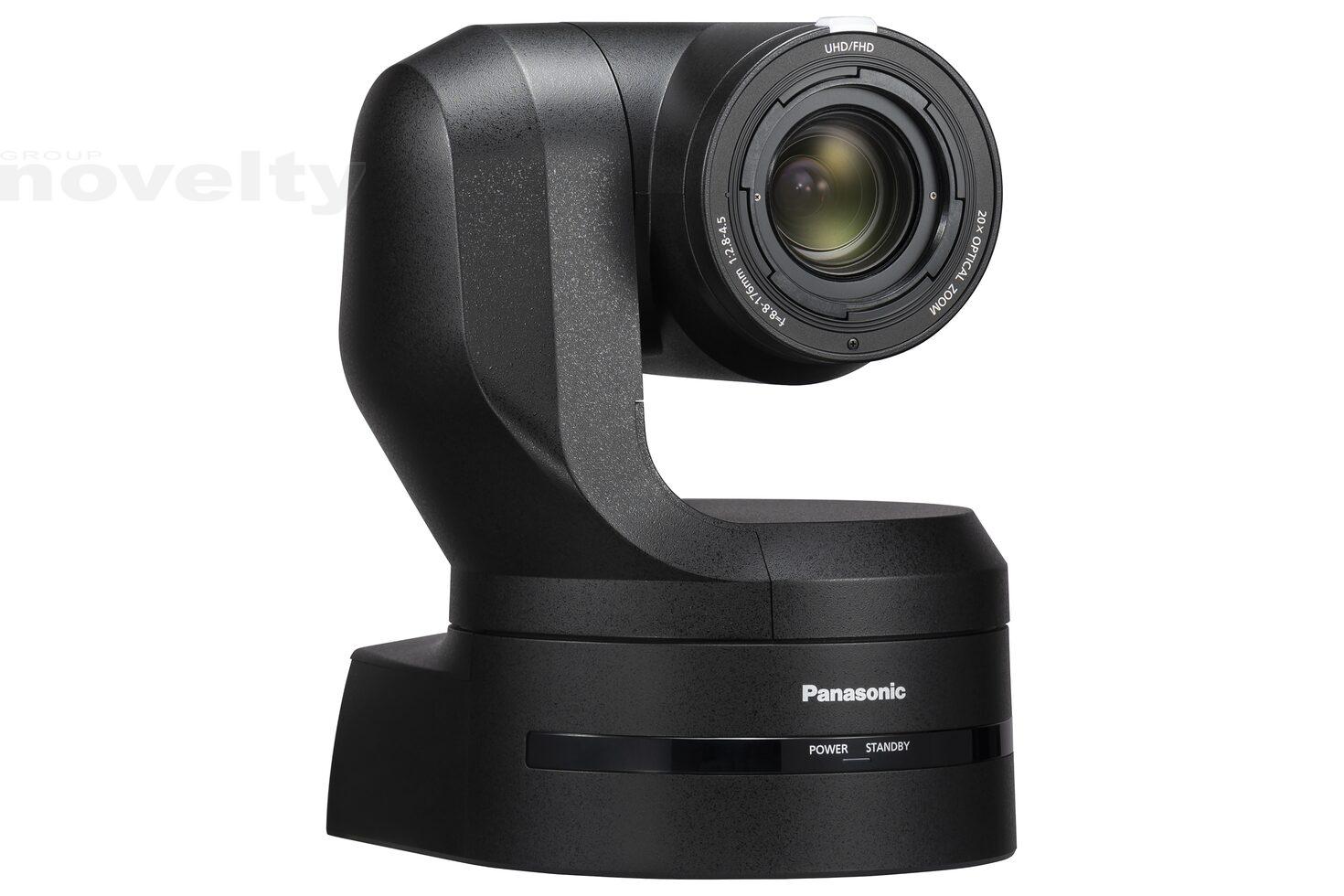

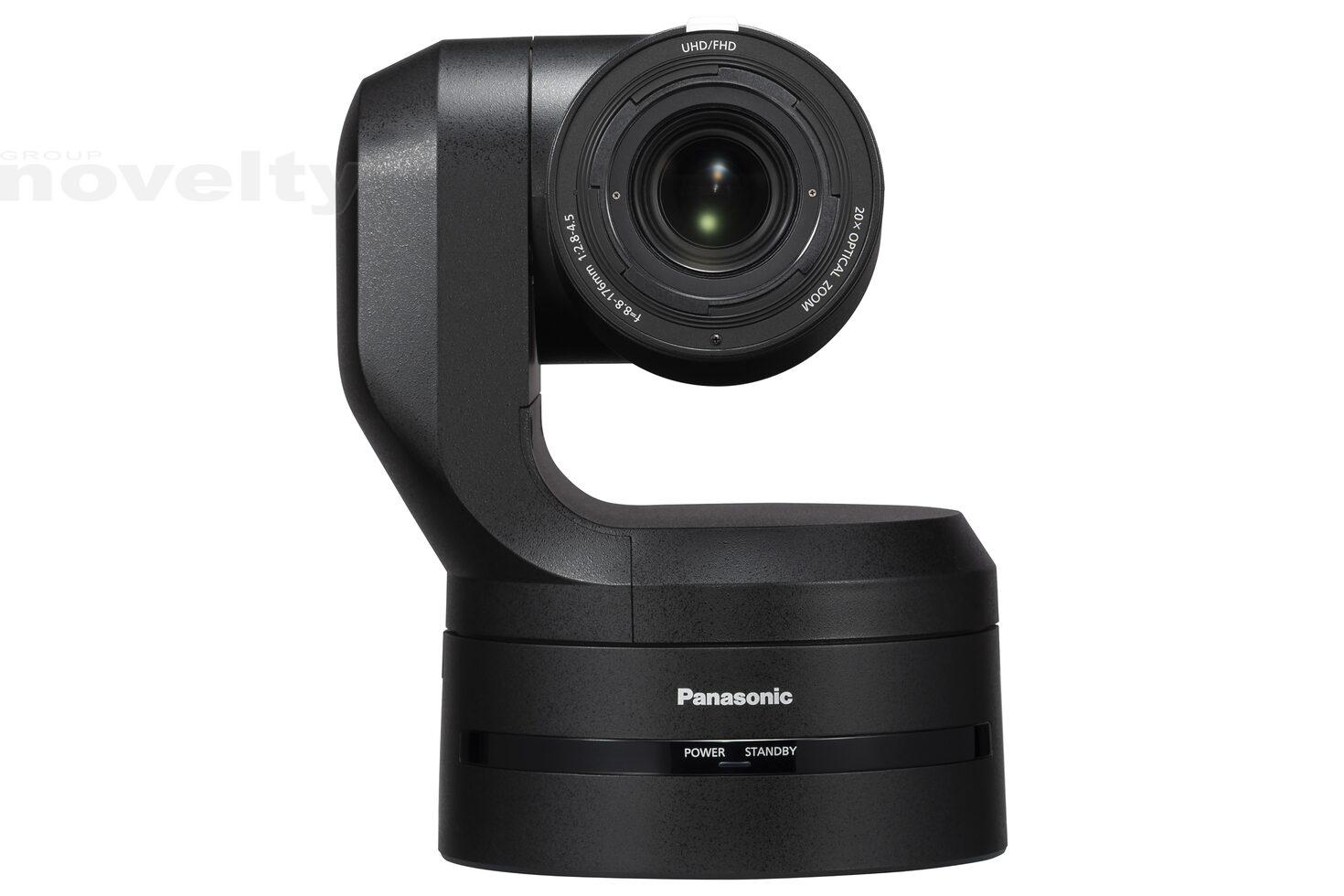

PANASONIC AW-HE145K

Descriptions détaillées

Specifications

General

• Power Requirements : 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
• Current Consumption : 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
• Ambient Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
• Ambient Operating Humidity : 20 % to 90 % (no condensation)
• Storage Temperature : -20 °C to 50 °C -4 °F to 122 °F)
• Mass Approx. : 4.1 kg (9.04 lb) (excluding mount bracket)
• Dimensions (l × H × P) : 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket)
• Controller Supported : AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*2

Camera Unit

• Imaging Sensors : 1-type Full-HD MOSx1
• Lens : Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6?15/16 inches); 35 mm (1?3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19?9/32 inches)]
• Zoom : • Optical zoom: 20x • i.Zoom: FHD 32x • Digital zoom: 10x
• Conversion Lens : Not supported
• Angle of View Range :
  • Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
  • Vertical angle of view: 46.7° (wide) to 2.3° (tele)
  • Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
• Optical Filter : Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
• Focus : Switching between auto and manual
• Focus Distance : Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft)
• Color Separation Optical System : 1MOS
• Standard Sensitivity : F9, 2000 lx (When normal mode is selected)
• Minimum Illumination : 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
• Horizontal Resolution : 1000 TV lines Typ (Center area)
• Gain Selection : Auto, 0 dB to 36 dB*3 Super Gain function equipped : +37 dB to 42 dB
• Electronic Shutter Speed : 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• Synchro Scan : 59.94p/59.94i: 60.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz
• Gamma : HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
• White Balance ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value)
• Chroma Amount Variability : OFF, -99 % to 99 %
• Scene File : Scene1, Scene2, Scene3, Scene4
• Output Format : 1080/59.94p, 1080/50p, 1080/29.97p*5, 1080/29.97PsF, 1080/25p*5, 1080/25PsF, 1080/23.98p*6, 1080/24p*5, 1080/23.98p*5, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
• Synchronization System : Internal/External synchronization (BBS/Tri-level sync)

Input

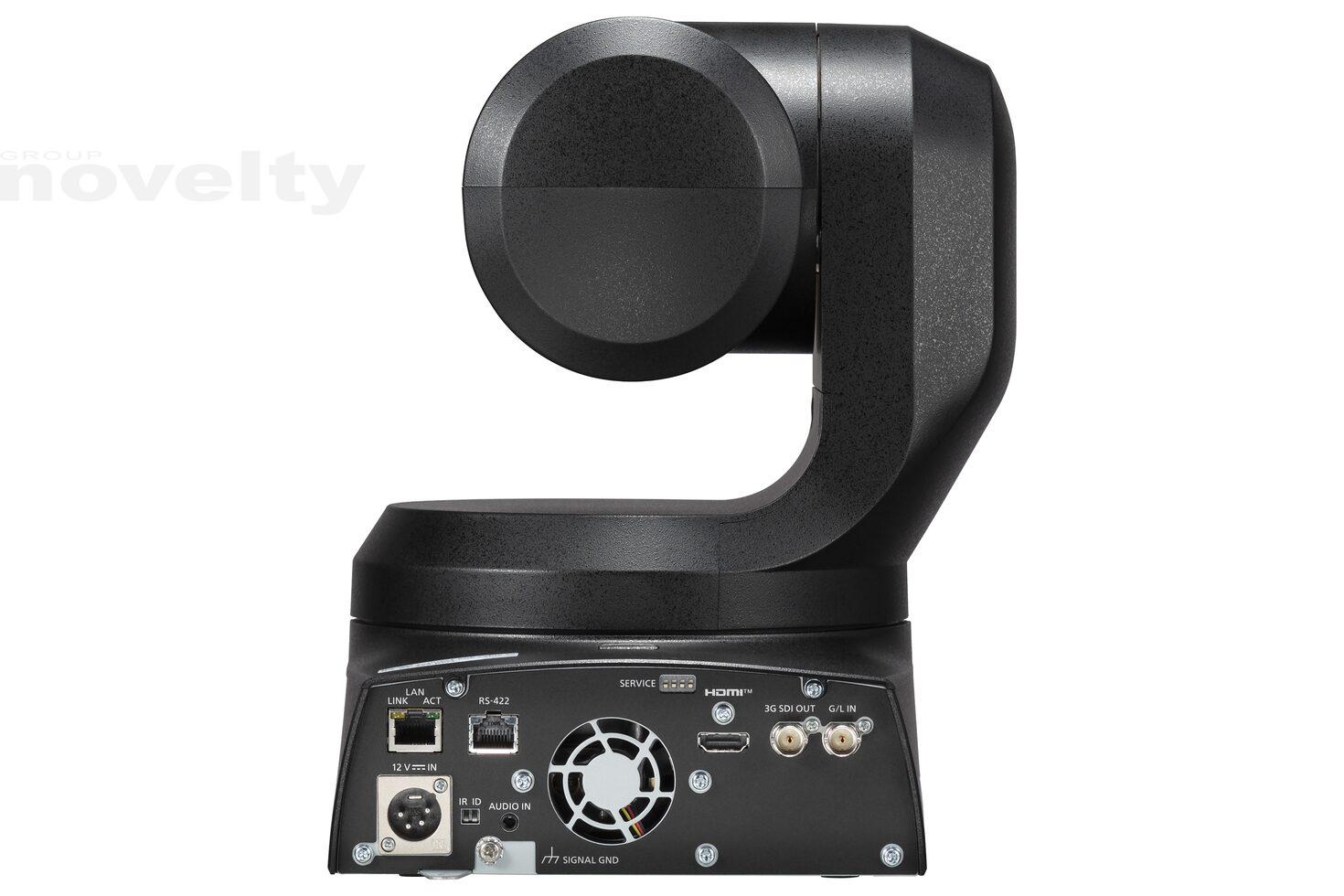

• Input Connector : DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported

Output

• Video Output : HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported

Input/Output

• Input/Output Connector LAN LAN connector for IP control (RJ?45) RS-422 CONTROL IN RS-422A (RJ?45) MIC/LINE input AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV

Pan-Tilt Head Unit

• Camera/Pan-Tilt Head Control : IP connecting cable: LAN cable*7: (category 5e or above, straight cable), max. 100 m (328 ft) AW protocol connecting cable: LAN cable*7: (category 5e or above, straight cable), max. 1000 m (3280 ft)

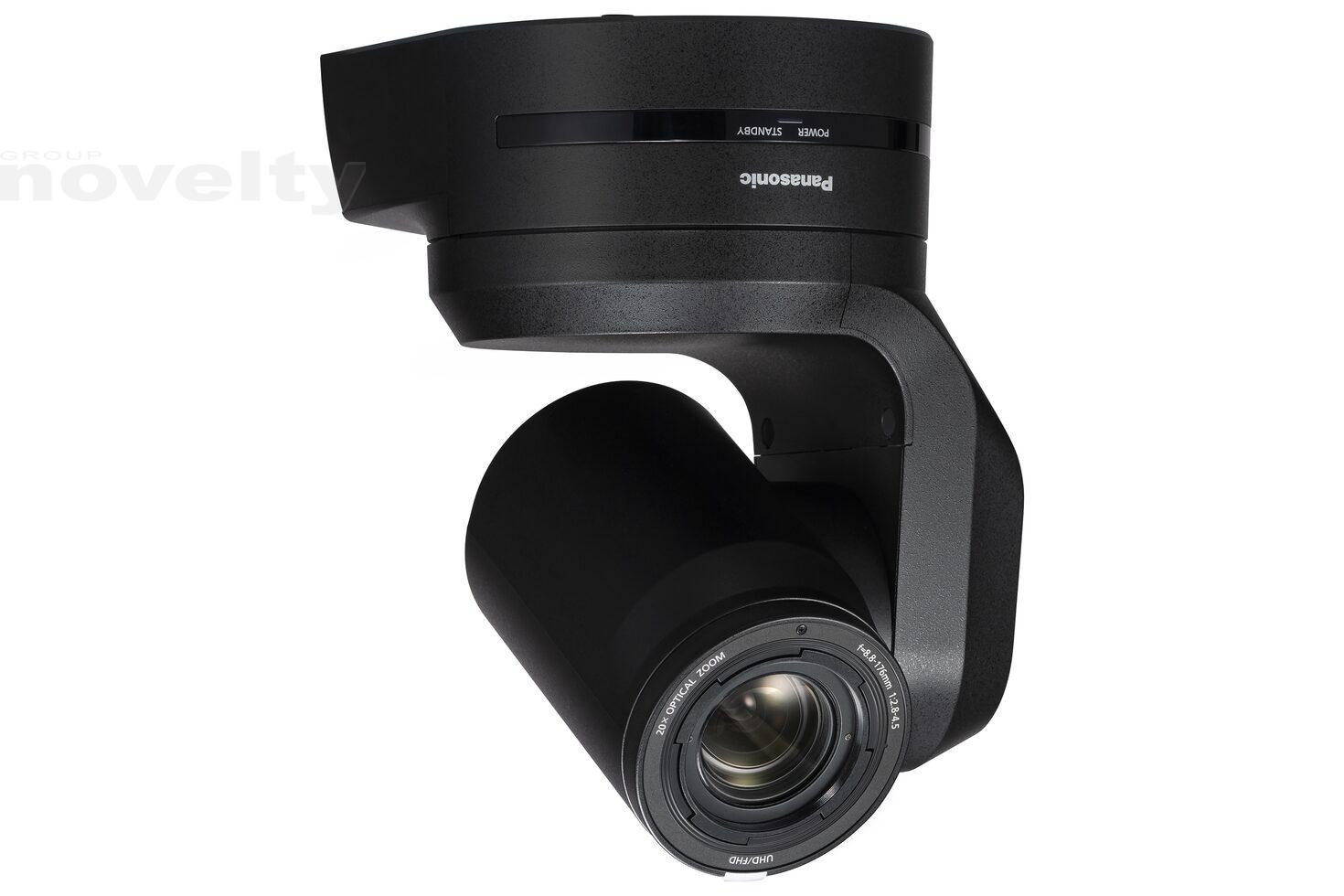

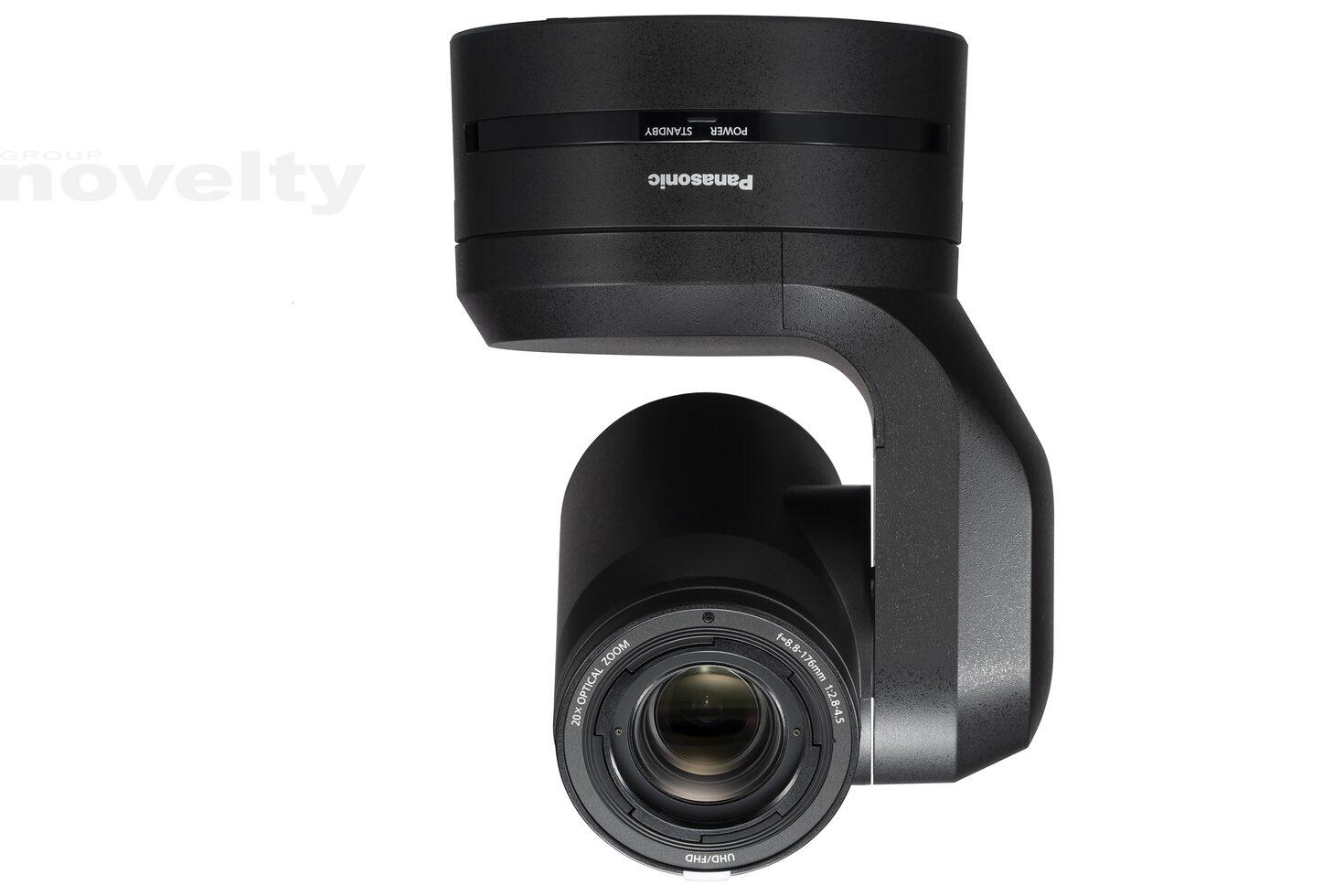

• Installation Method : Stand-alone (Desktop) or suspended (Hanging)*8
• Pan/Tilt Operation Speed : Minimum speed 0.08°/s Maximum speed 60°/s or higher*9 • Maximum speed is 180°/s in high-speed mode
• Panning Range : ±175°
• Tilting Range : -30° to 210°*10
• Quietness : NC35 or less
• Supported operating systems and web browsers : Windows Microsoft(R) Windows(R) 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac MacOS v11.0.1 / Safari 14.01 MacOS v11.0.1 / Google Chrome MacOS V10.15 / Google Chrome MacOS V10.14 / Google Chrome iPhone / iPad iOS Google Chrome

IP Streaming

• Image Streaming Mode : JPEG (MJPEG), H.264, H.265

Image Resolution

• Resolution: 1920x1080, 1280x720, 640x360, 320x180
• Image Transmission Setting : JPEG Frame Rate: Maximum 30 fps, Image quality (Fine / Normal) H.264 Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps H.265 Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps NDI®*1 HX Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps SRT H.264 Transmission Type: UDP Unicast Only Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps SRT H.265 Transimission Type: UDP Unicast Only Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps RTMP/RTMPS Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps

• Audio Compression Type : AAC-LC, 48 kHz / 16 bit / 2ch

• Supported Protocol IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, MLD, ICMP, ARP, RTSP/RTP IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP/RTP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, MPEG2-TS over UDP

Other Function

• Tally LED display color : red / green
