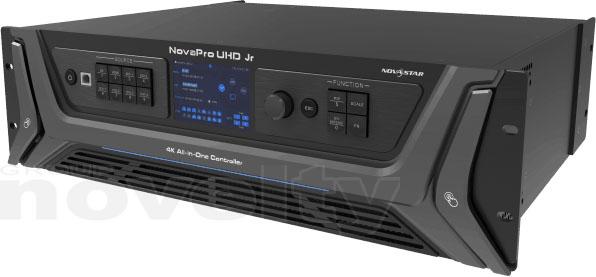

Novastar NovaPro UHD Jr

Descriptions détaillées

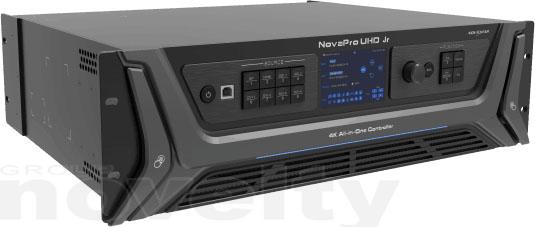

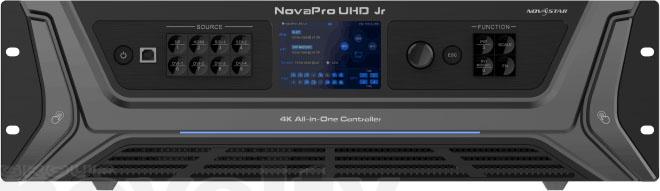

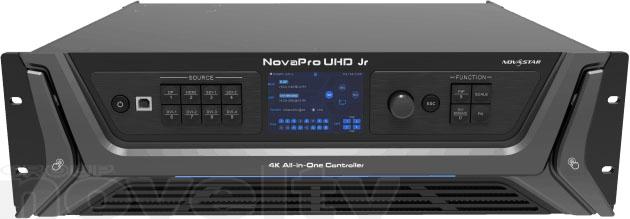

The NovaPro UHD Jr is a NovaStar’s new all-in-one controller that features excellentvideo processing capabilities, sending card functions and LED screen configurations.

The NovaPro UHD Jr provides a variety of video input connectors, supporting full HD 4K×2K@60Hz image processing and sending capabilities. Besides, NovaPro UHD Jr supports 8K×1K@60Hz ultra-high resolution settings.

With the help of smart control software V-Can from Novastar, the NovaPro UHD Jr can enable richer image mosaic effects and faster and easier operations.

The NovaPro UHD Jr can send the processed video to the LED screen via Neutrik Ethernet ports and optical fiber ports. Thanks to its powerful video processing capabilities and sending functions, the NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites and other high-end rental applications as well as fine-pitch LED displays.

Features :

• A variety of inputs and outputs?Provides 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output and 2 × 12G-SDI with loop output.
• More output connectors, larger loading capacity?Provides 16 × Neutrik Ethernet output and 4 × optical fiber output, with loading capacity up to 10,400,000 pixels.?The maximum width is 16K and maximum height is 8K.
• DVI mosaic?An input source can be made up of at most 4 DVI input sources.
• HDR output?Greatly enhances display image quality, providing more clear and vivid image.
• Decimal frame rates?The supported frame rates are 23.98, 29.97 and 59.94.
• Low-latency output?Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar Armor series receiving cards?(A8/A8s/A9s/A10s Plus).
• Customized BKG settings?Supports pure color and image BKGs.
• Personalized image scaling?Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom.
• Capture function?Captures input source image which can be used as a BKG image.
• Image mosaic?Up to 4 NovaPro UHD Jr units can load a super-large screen.
• V-Can (smart control software from NovaStar) supported?
• 10 presets?At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
• EDID management supported?Supports custom EDID and standard EDID.

SPECIFICATIONS

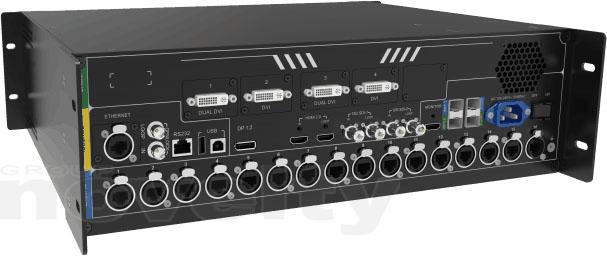

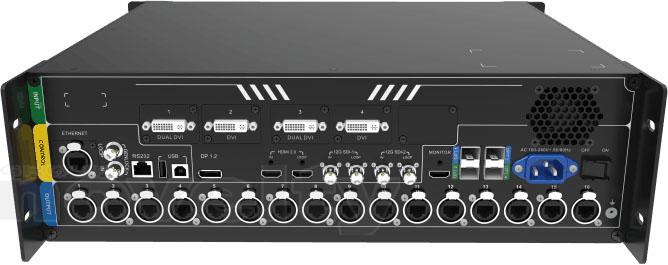

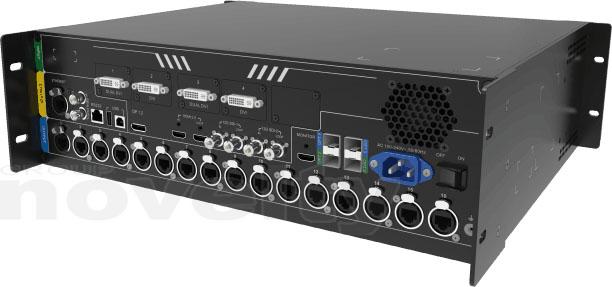

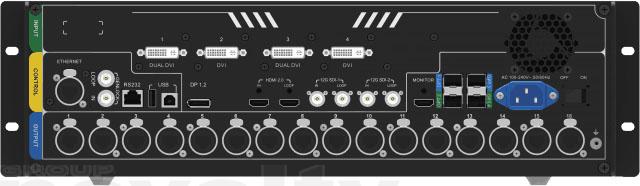

• Input
  • DVI : 4
    • Four DVIs are all single-link DVI connectors by default
      • 4 × DVI inputs
      • Each DVI: Input resolution up to 1920×1200@60Hz, downward compatible
      • 4 DVI input sources constitute 1 input source (DVI MOSAIC).
      • Standard resolutions supported
    • In dual-link mode
      • DVI 1 and DVI 3 are dual-link DVI connectors while DVI 2 and DVI 4 are unavailable.
      • DVI 1/DVI 3: Input resolution up to 3840×1080@60Hz, downward compatible
      • Standard resolutions supported
  • 12G-SDI : 2
    • Input resolution up to 4096×2160@60Hz, downward compatible
    • Standard resolutions unsupported
  • DP 1.2 : 1
    • Input resolution up to 3840×2160 @60Hz, downward compatible
    • HDCP 1.3 compliant
    • Standard resolutions supported
  • HDMI 2.0 : 1
    • Input resolution up to 3840×2160 @60Hz, downward compatible
    • HDCP 1.4
    • EDID management
    • Standard resolutions supported
• Output
  • Ethernet port : 16
    • 16 × Neutrik Gigabit Ethernet output connectors, allowing for a loading capacity of up to 10,400,000 pixels
    • Maximum loading capacity:
      • Max. width: 16K,
      • max. height: 8K
    • Maximum loading capacity of a single Ethernet port:
      • 8-bit input source: 650,000 pixels
      • 10-bit/12-bit input source: 320,000 pixels
  • OPT 1–4 : 4
    • 10G optical connectors
    • OPT 1 transmits data of Ethernet ports 1–8.
    • OPT 2 transmits data of Ethernet ports 9–16.
    • OPT 3 serves as the hot backup for OPT 1.
    • OPT 4 serves as the hot backup for OPT 2.
  • HDMI 2.0 LOOP : 1
    • HDMI loop output connector?Only 1 level of device cascading supported
    • HDCP 1.4
    • EDID management
  • 12G-SDI LOOP : 2
    • SDI loop output connectors
  • MONITOR : 1
    • HDMI connector for output monitoring
  • Resolution up to 1920×1080@60Hz
• Control
  • ETHERNET : 1
    • Connect to the PC for communication, or connect to the Web for device control.
  • USB (Type-B) : 1
    • Connect to the PC for device control.
    • Used as the input connector to connect a NovaPro UHD Jr unit for image mosaic
  • USB (Type-A) : 1
    • Used as the output connector to connect a NovaPro UHD Jr unit for image mosaic
  • GENLOCK IN- LOOP : 1
    • Connect to a synchronization signal to synchronize all the connected NovaPro UHD Jr units.
  • RS232 : 1
    • Connect to the control device.
