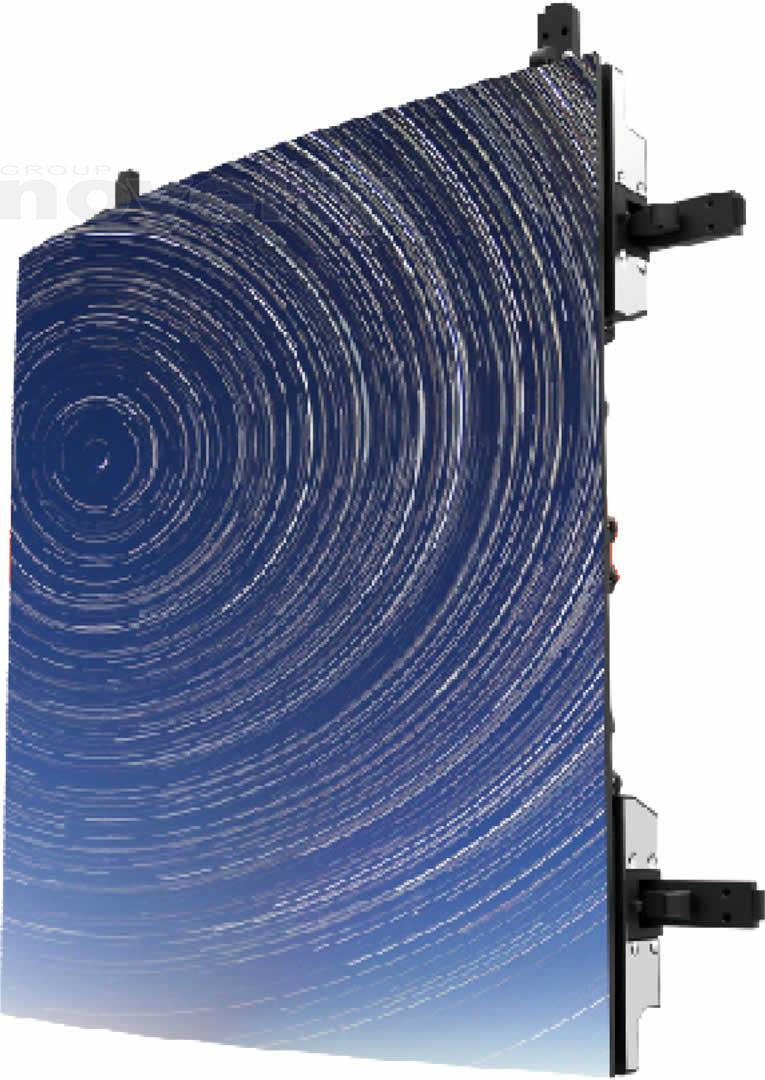

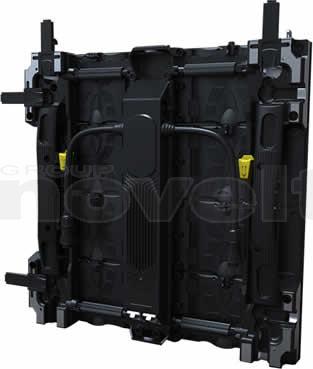

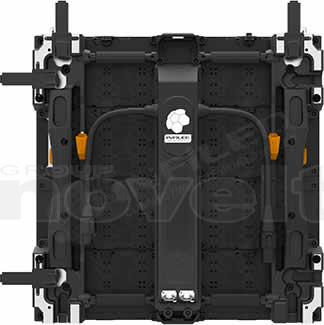

Infiled X3.9 Curve
Dalle LED, pitch 3,9 mm, modèle "curved" angle 0°, 10°, 20°, 128x128 px
Descriptions détaillées

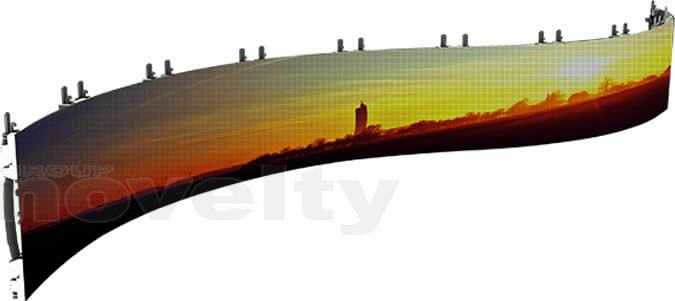

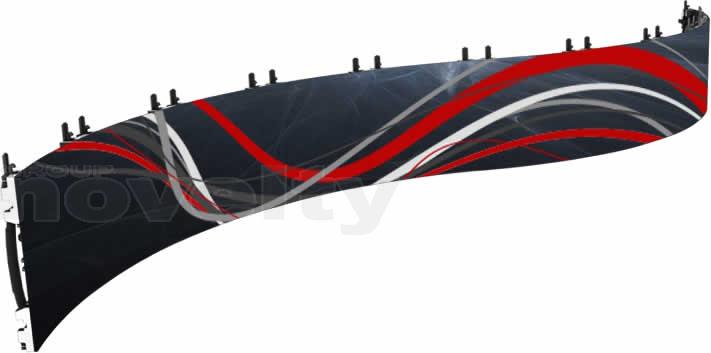

Perfect Wave Screen SolutionApplications :
- stage performance
- public square
- shopping mall
- stadium
- hotel…
- Faster and easier to build

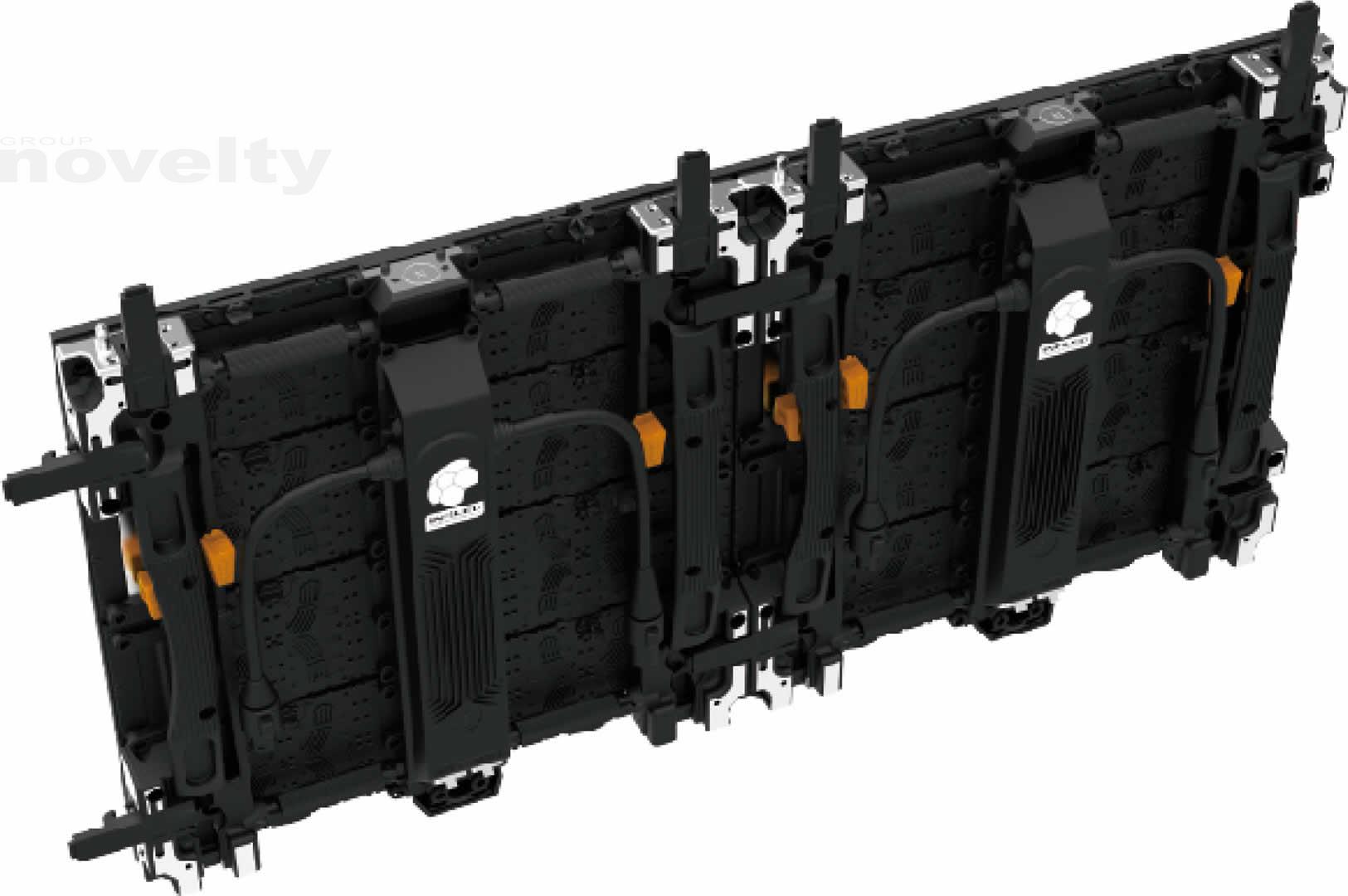

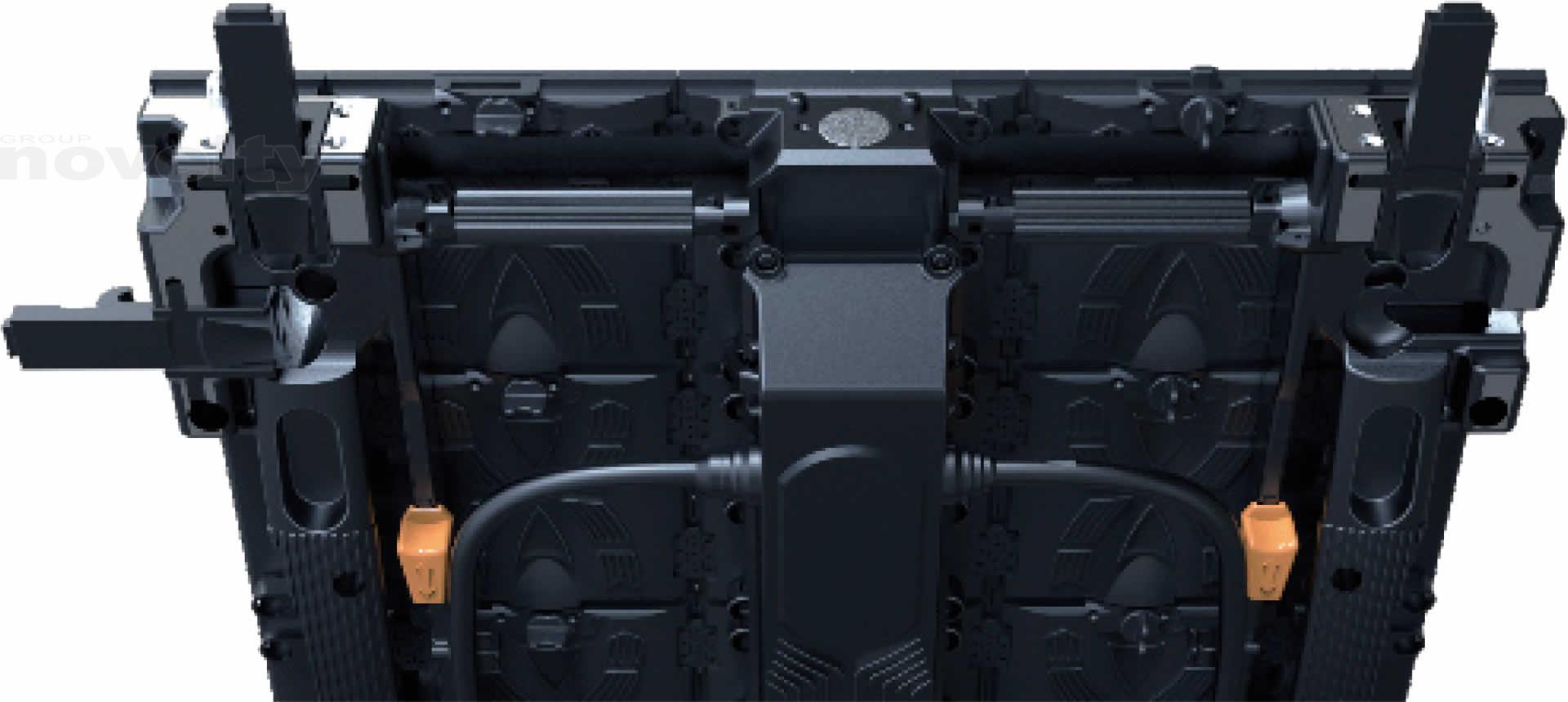

- Separate control unit

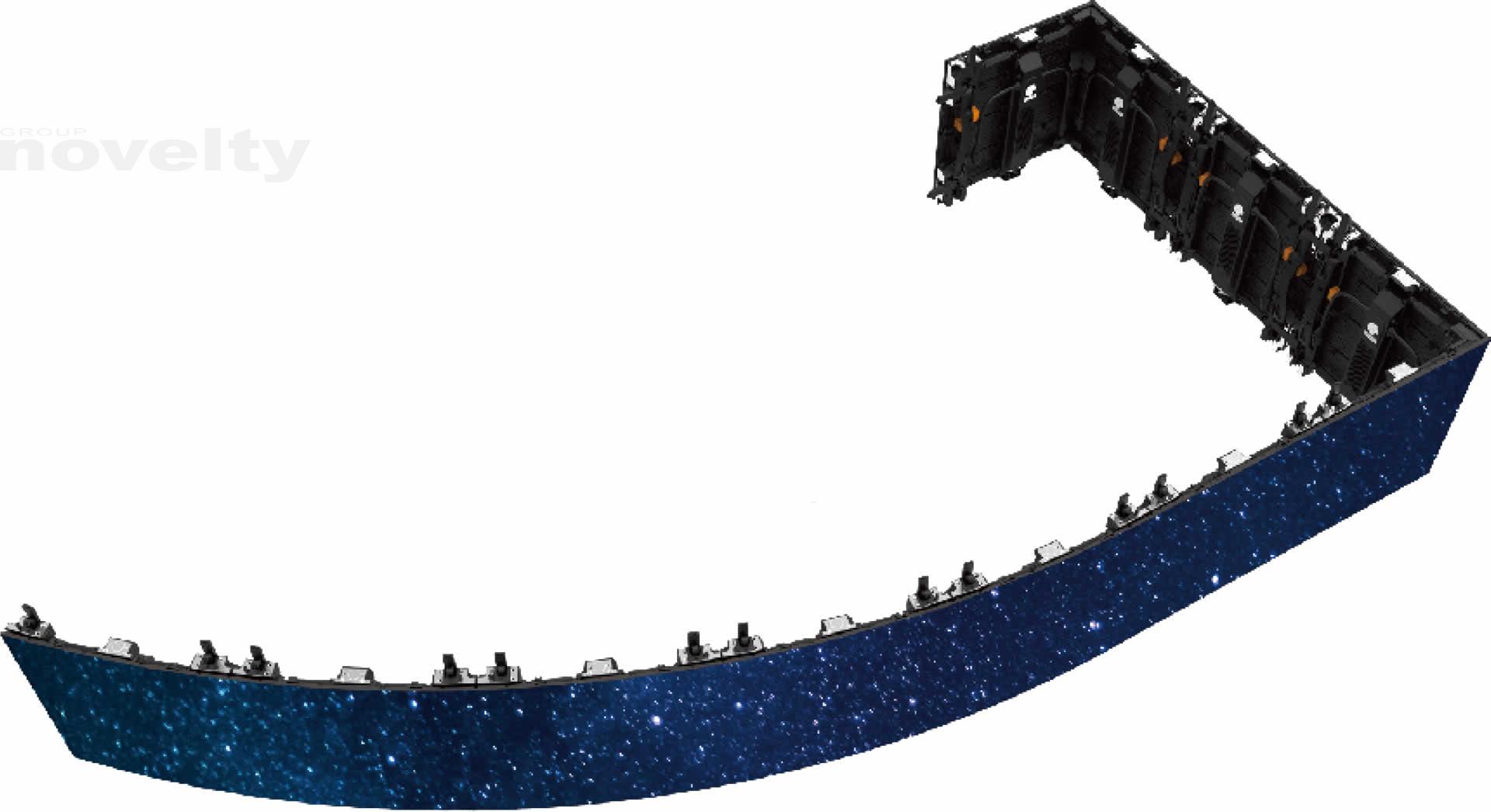

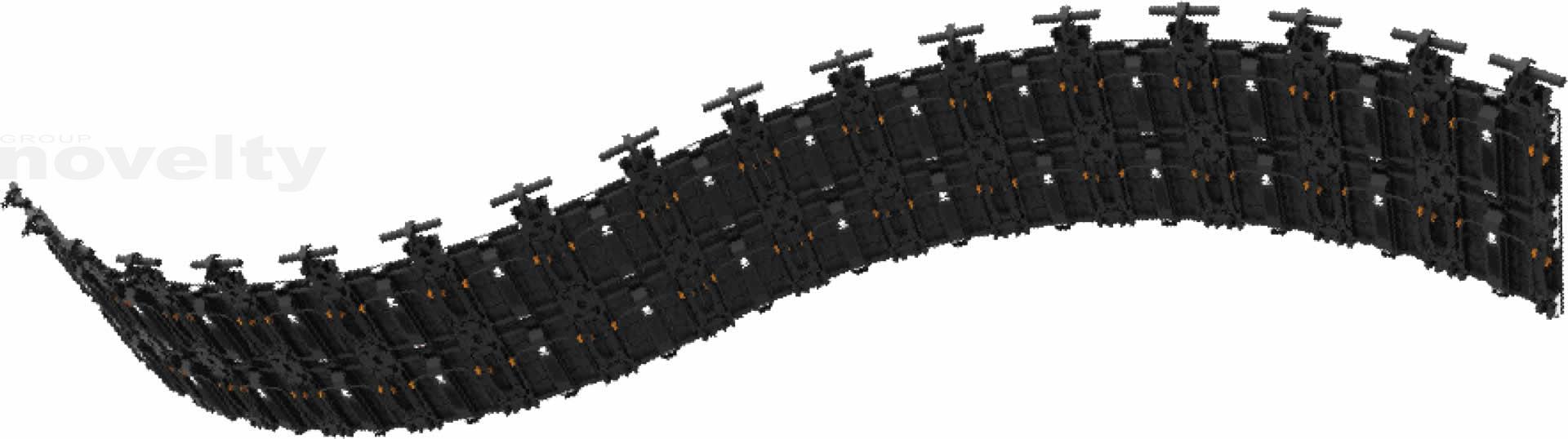

- Allow for perfect smooth curves

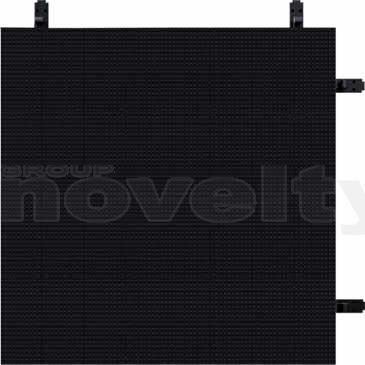

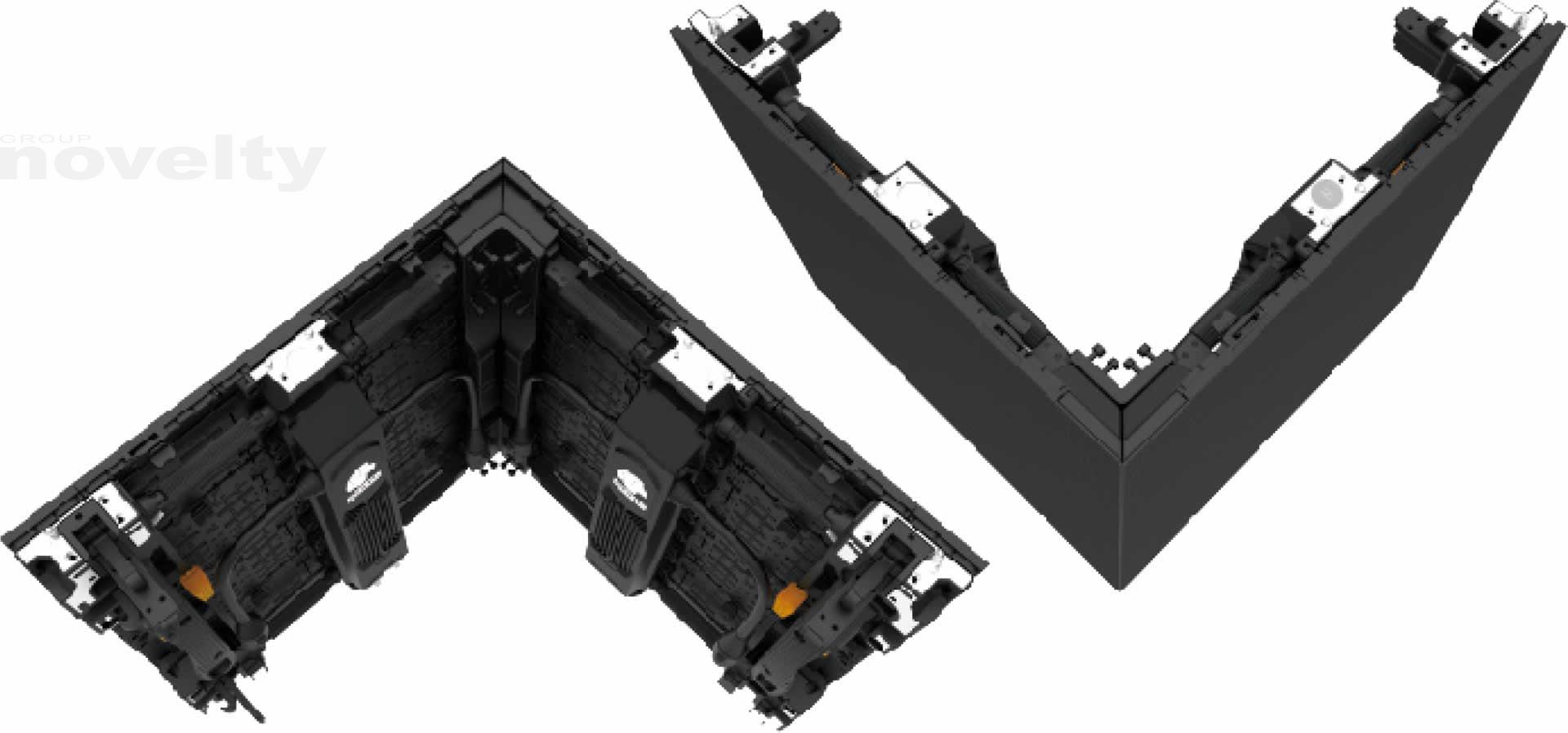

- Flat panel and corner panel optional
- Pixel Pitch : 3.9mm
- Physical Density : 65,536pixels/m2
- LED Arrangement : 2020 Black LED
- Module Resolution : 128×32pixels
- Module Dimension : 500×125mm
- Cabinet Resolution : 128×128pixels
- Brightness Level : 1,200~1,700nits
- Max Power Consumption : 200W/panel
- Ave Power Consumption : 66.7W/panel
- Viewing Angle : 140°/140°
- Operating Power Source : AC90-260V 50-60Hz
- Operating Temperature : -10~+45°C
- Refresh Rate : 1,000~2,400Hz (configurable)

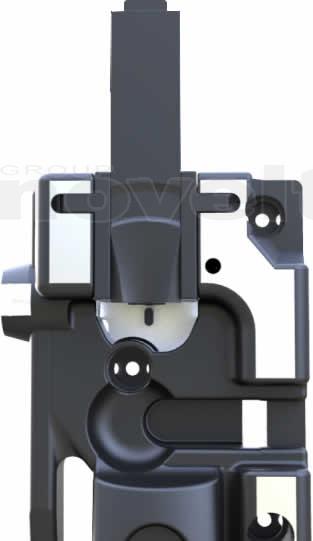

- Curvable Rate : 5 Levels(+20° ,+10°, 0°,-10°,-20°)
- Life Span : 100,000 Hours?
- MTBF : 5,000 Hours
- Protecting Rating : IP30
- Signal Input Source : Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD SDI
Informations
- Référence : X3.9 Curve
- Télécharger nos catalogues PDF
Propriétés techniques
- Consommation électrique : 200 W
- Dimensions en flight-case (X12) : … x … x … cm

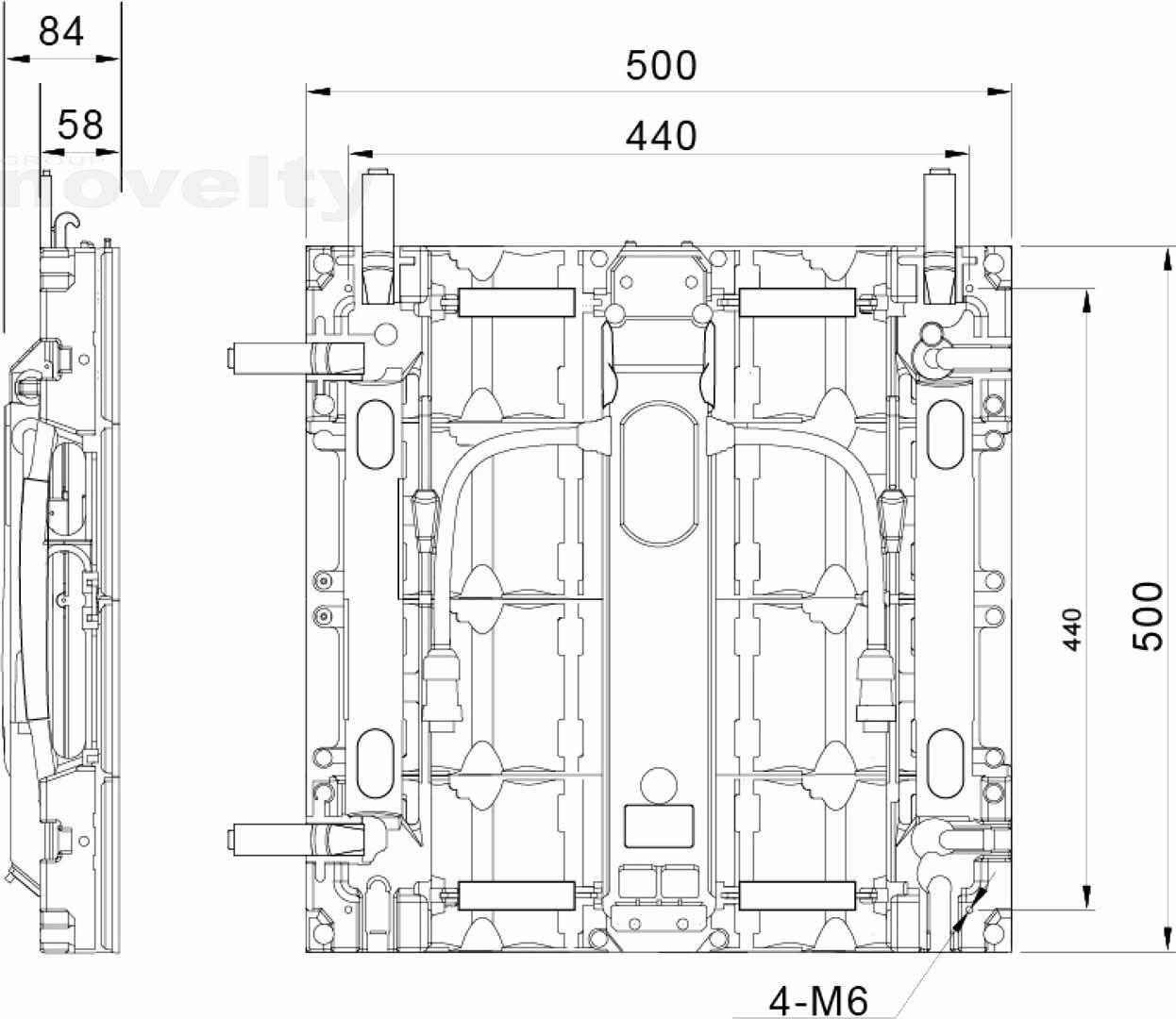

- Dimensions unitaires : 500 x 500 x 84 mm
- Poids en flight-case (x12) : … kg
- Poids unitaire : 8,9 kg
Documents à télécharger
Fiche technique : Infiled IRX3 - Fichiers : Infiled IRX3 Brochure
- Certificat de conformité : X3.9 (TUV CE)
- Certificat de conformité : X3.9 (TUV EMC)
