Decimator 12G-CROSS

Descriptions détaillées

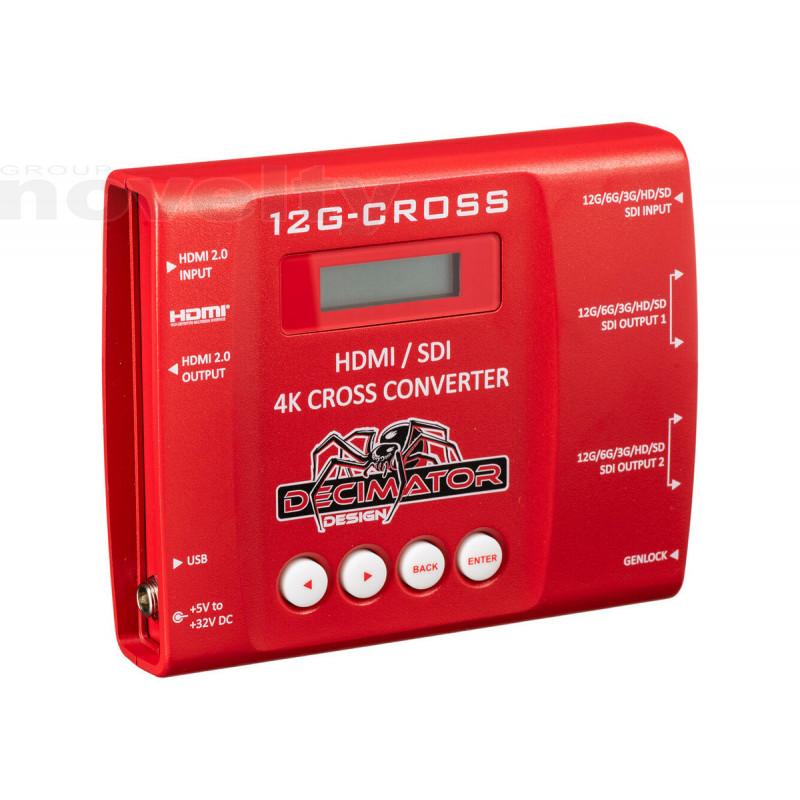

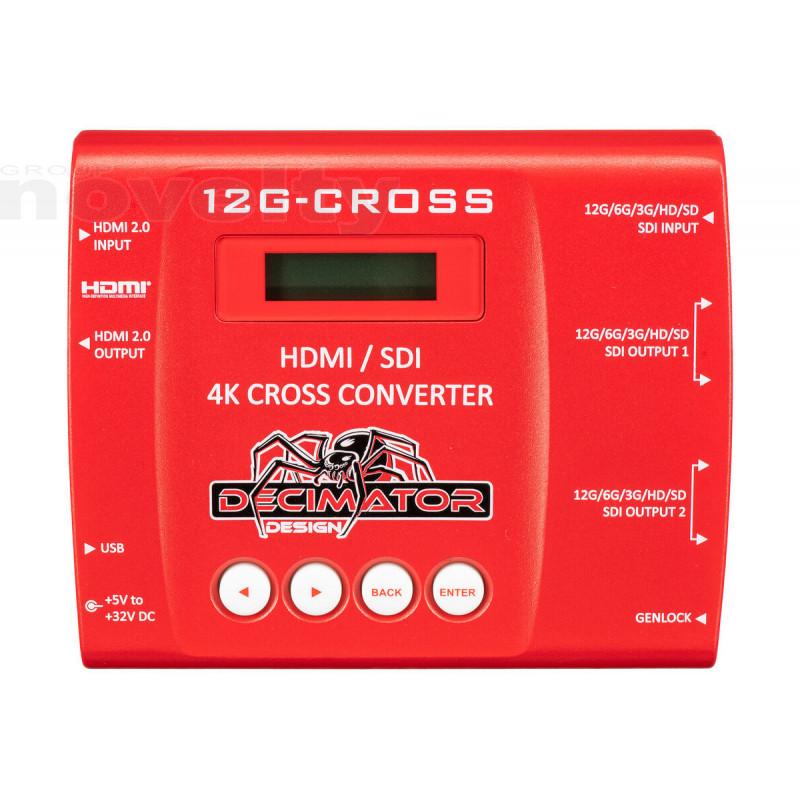

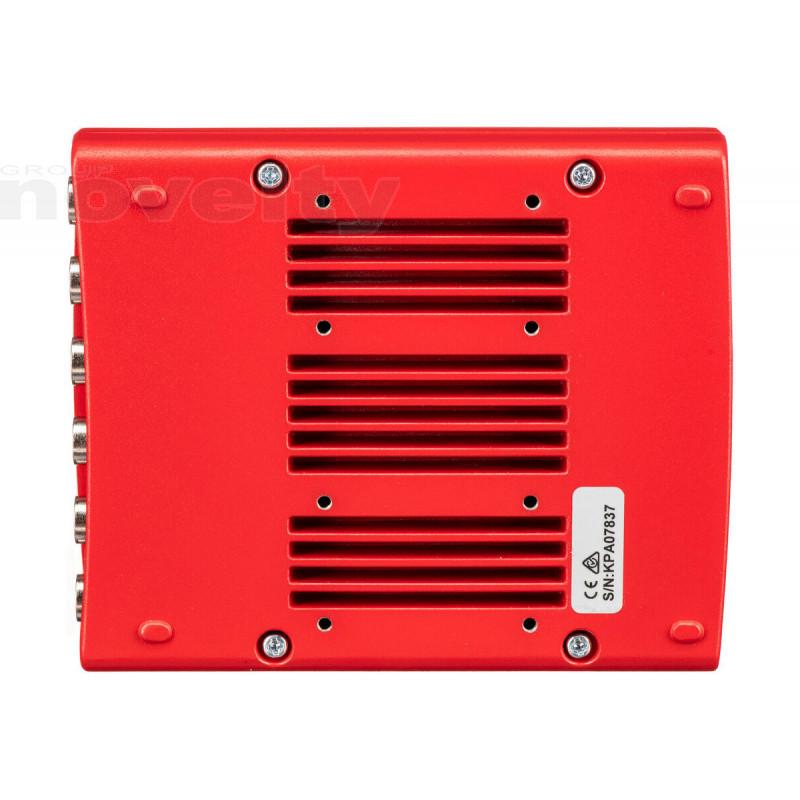

The 12G-CROSS is a small (4.2” x 5.1” x 1.2”) low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan.

Allowing it to be used in almost any environment.

Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine.
The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input.

Specifications

• The 4K scaling engine can scale and/or frame rate convert between any of the following 57 formats:
  • (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI ? (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
  • (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (A or B)
  • 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
  • (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
  • (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
  • 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
  • 1280 x 720p24/23.98 via HD-SDI
  • 720 x 480p59.94 or 720 x 576p50 via HDMI
  • 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI That is an amazing 3249 possible format conversions!

• The audio pairs in the SDI and HDMI outputs can be rearranged as required

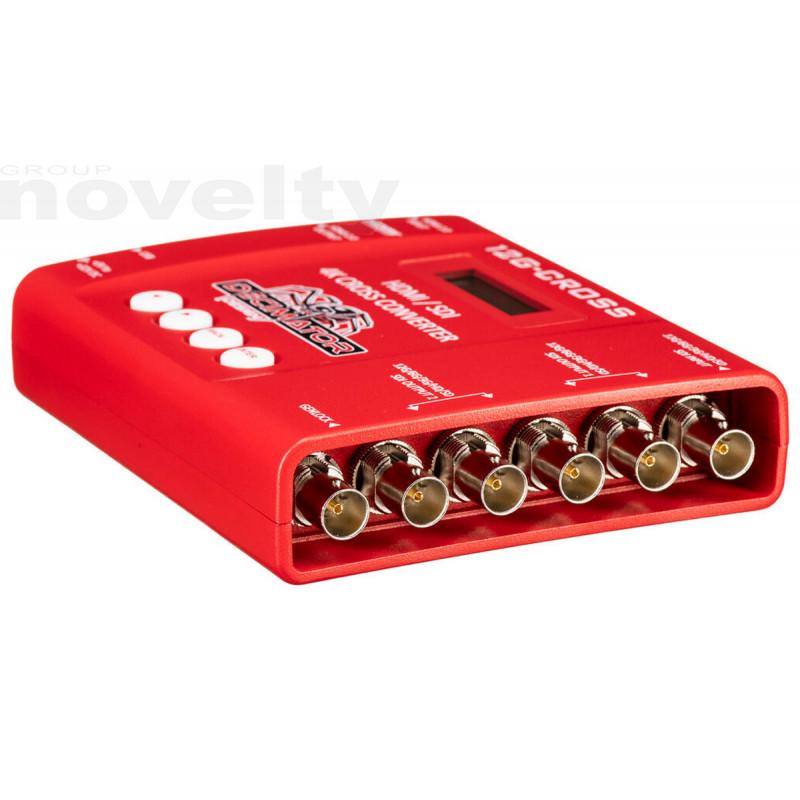

• Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier.
• The 12G-CROSS is a truly portable product that incorporates an
  • easy-to-use LCD screen and button control system. This gives
  • easy access to the outstanding features without using
  • complicated LED/button controls, dip switches, or having to
  • carry around a computer to change a simple setting.

• This unit also includes:
  • USB port for control and firmware updates
  • Metal Thread Locking DC Power Socket
  • Power Supply and USB Cable

SDI Formats

• 12G:SMPTE 2048-1/[email protected] and 11.868Gb/s
  • (3840 or 4096) x 2160p@60/59.94/50Hz
• 6G: SMPTE 2048-1/[email protected] and 5.934Gb/s
  • (3840 or 4096) x 2160p@30/29.97/25/24/23.98Hz
• 3G-A or 3G-B: SMPTE [email protected] and 2.967Gb/s
  • (1920 or 2048) x 1080p@60/59.94/50Hz
• HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s
  • 1920 x 1080i@60/59.94/50Hz
  • (1920 or 2048) x 1080p/psf@30/29.97/25/24/23.98Hz
  • 1280 x 720p@60/59.94/50/30/29.97/25/24/23.98Hz
• SD:SMPTE 259M@270Mb/s
  • 720 x 576 (PAL)
  • 720 x 480i59.94 (NTSC)

LCD / BUTTON MENU OPTIONS

• SDI output source from HDMI IN, SDI IN or Scaler
  HDMI output type and source from HDMI IN, SDI IN or Scaler
• Scaler source, reference, format and Aspect Controls
• Audio pair routing for HDMI and SDI output
• LCD backlight off time
• Back to Status time

HDMI FORMATS

• (4096 or 3840) x 2160p@60/59.94/50/30/29.97/25/24/23.98Hz
• 1920 x1080p@60/59.94/50/30/29.97/25/24/23.98Hz
• 1920 x1080i@60/59.94/50Hz
• 1280 x720p@60/59.94/50/30/29.97/25
• 720 x 480p59.94 or 720 x 576p50
• 720 x 480i59.94 (NTSC) or 720 x 576 (PAL)

INPUTS

• 1 x HDMI Type A
• 1 x (12G/6G/3G/HD/SD)-SDI
• 1 x Genlock

OUTPUTS

• 1 x HDMI Type A
• 2 x (12G/6G/3G/HD/SD)-SDI Re-clocked Loop-through
• 2 x (12G/6G/3G/HD/SD)-SDI

POWER

• +5V to +32V DC
• Positive Centre Pin

DIMENSIONS

• 106mm x 130mm x 31mm (4.2” x 5.1” x 1.2”)
