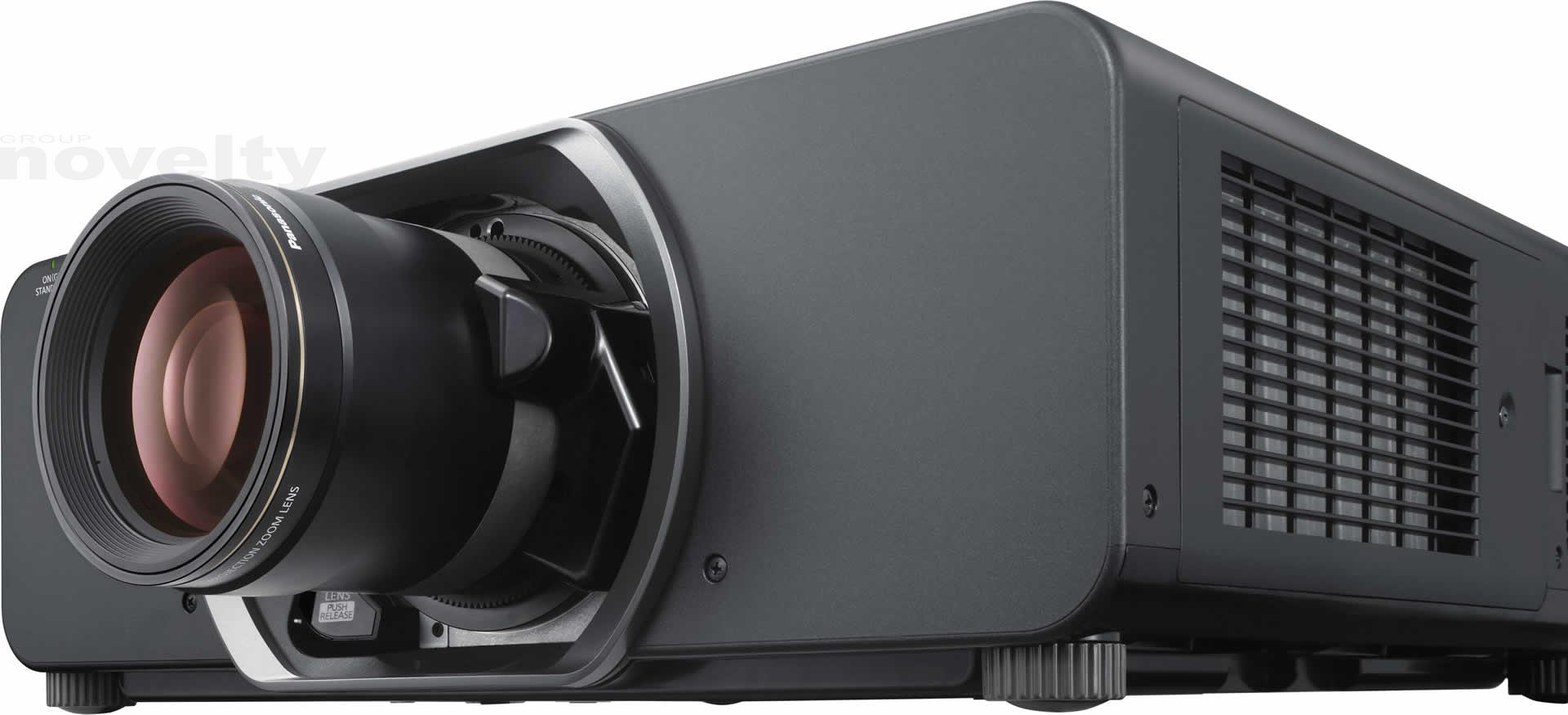

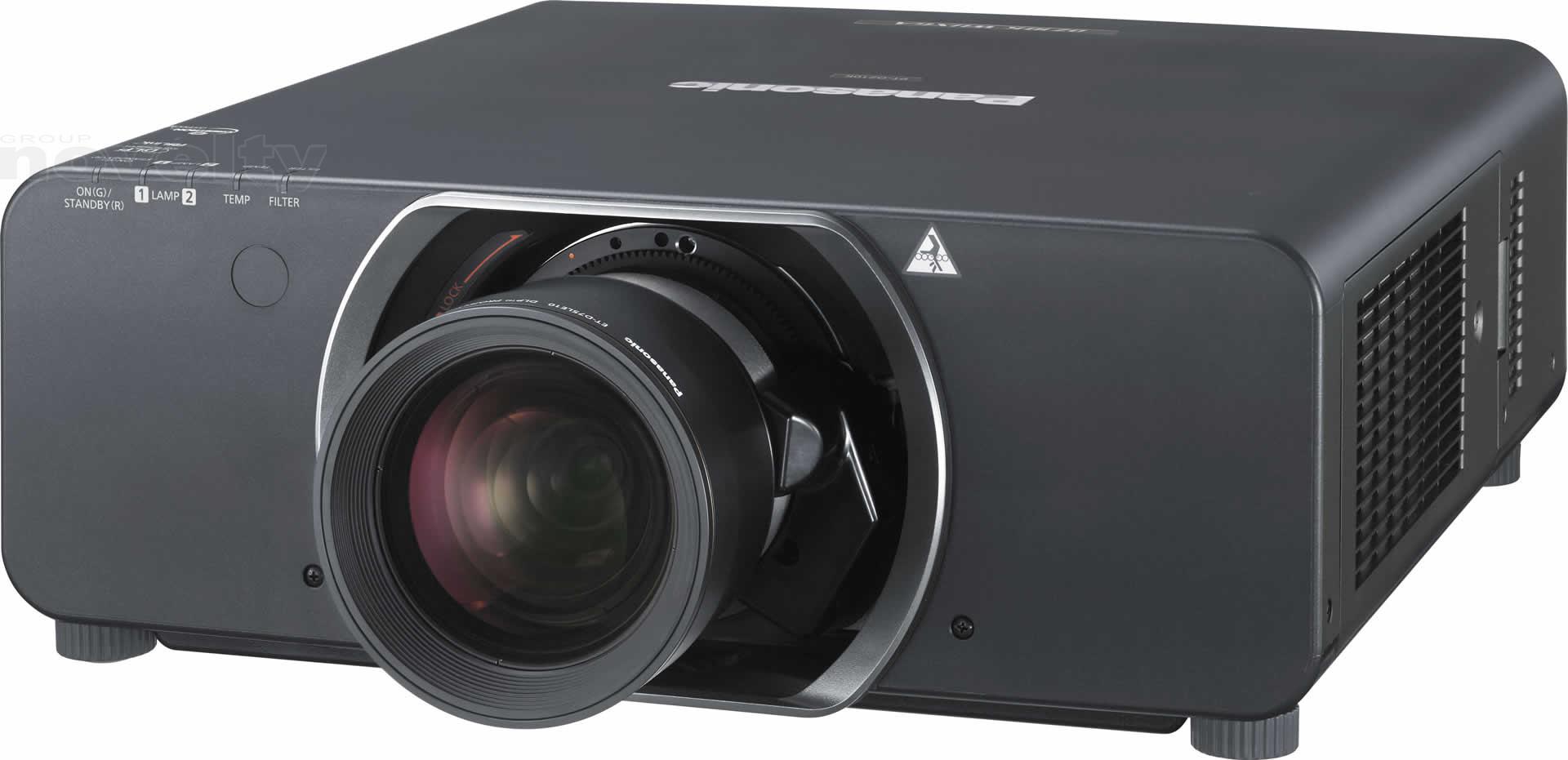

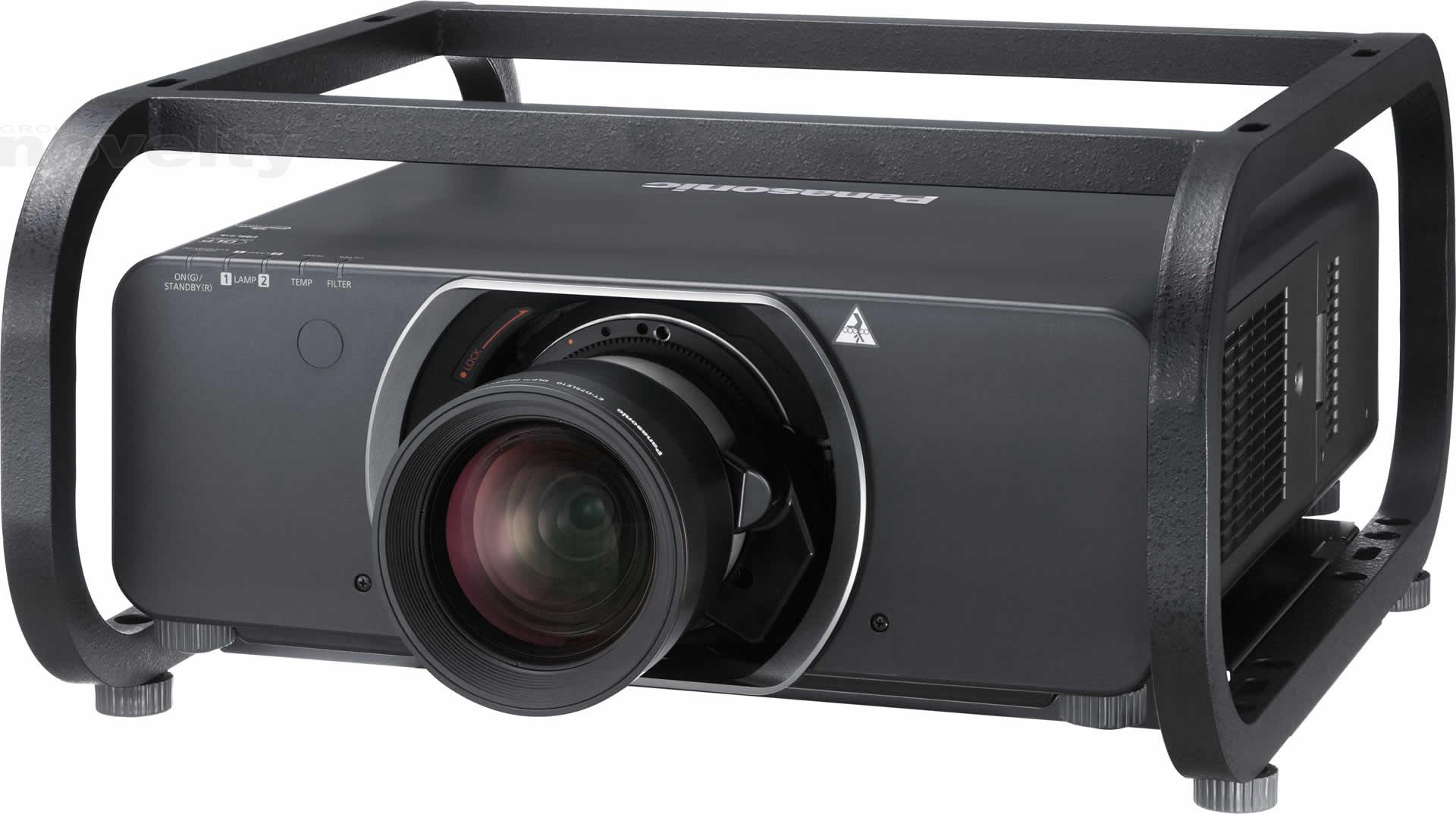

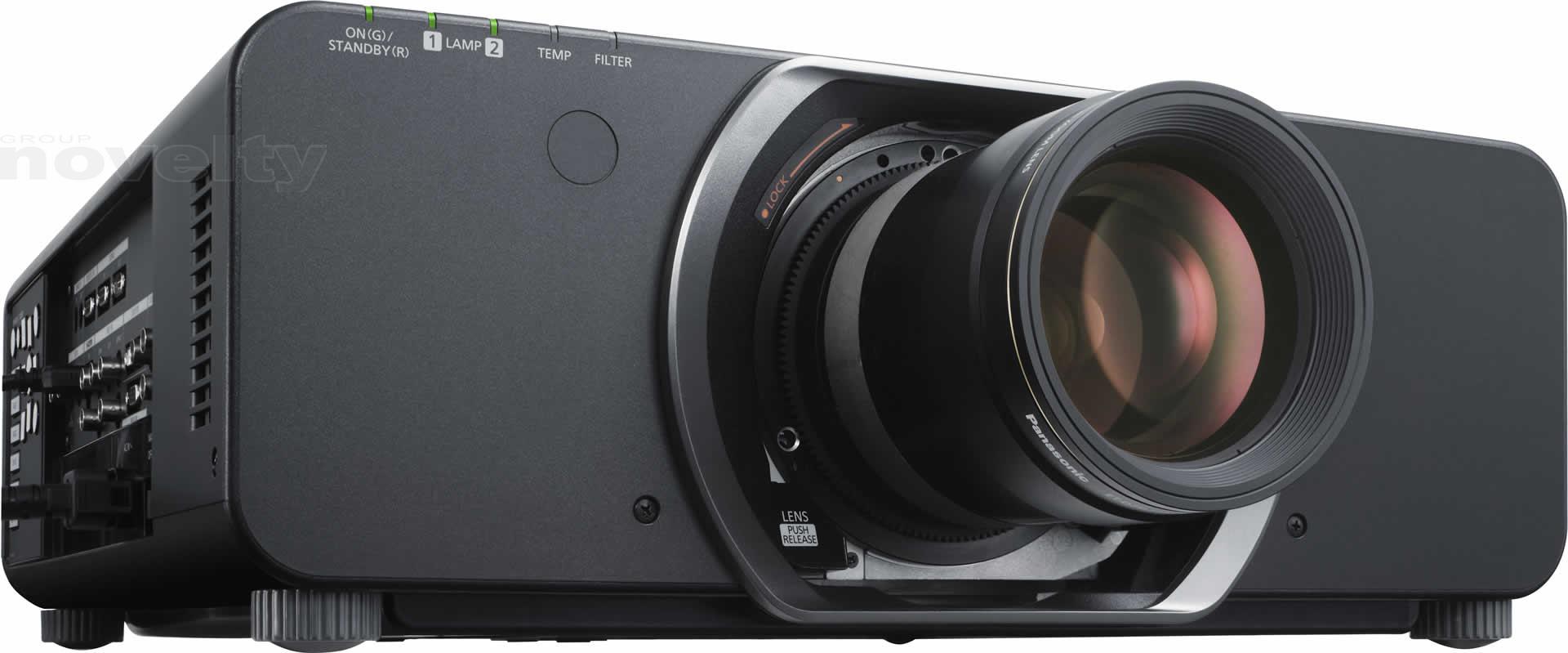

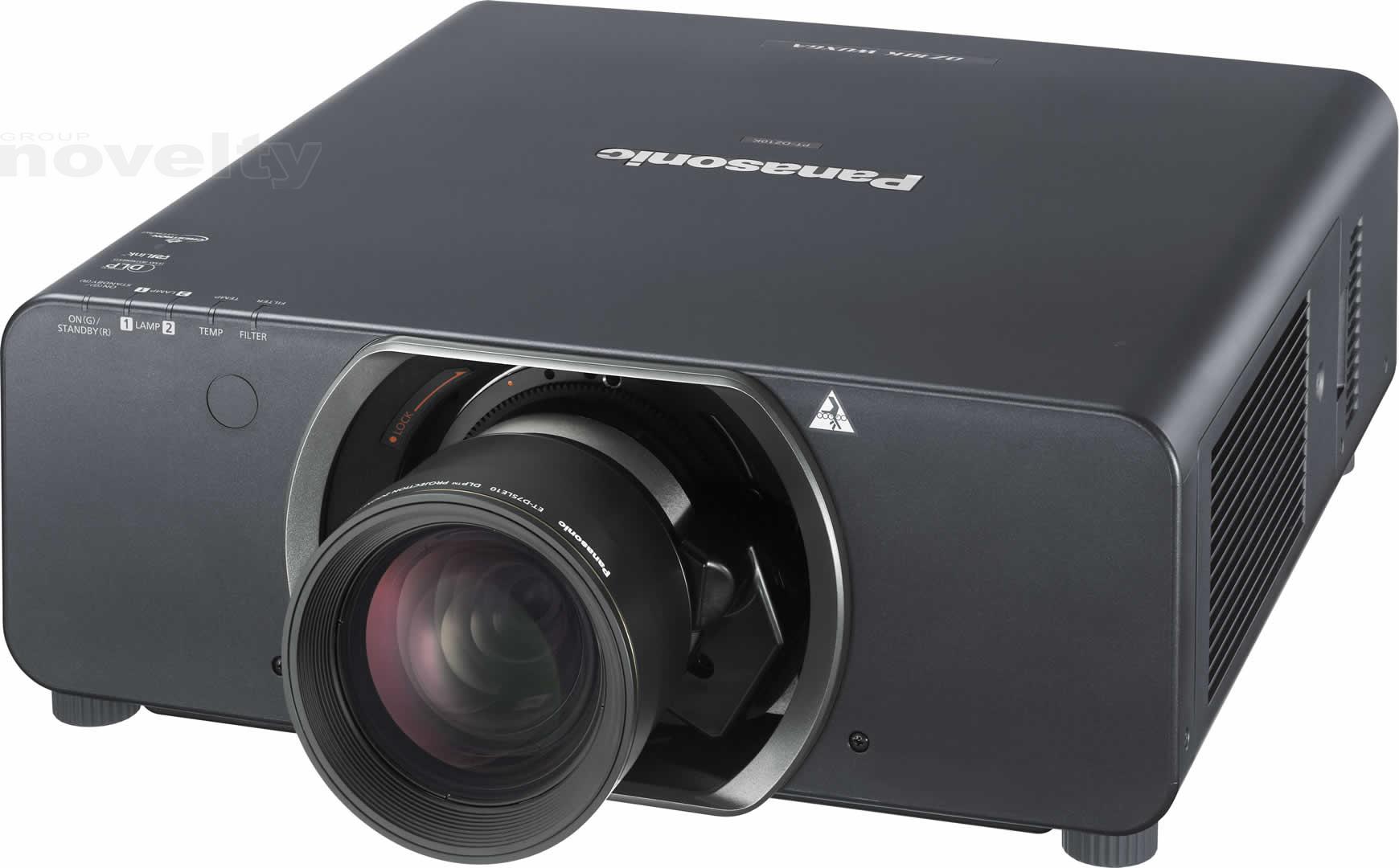

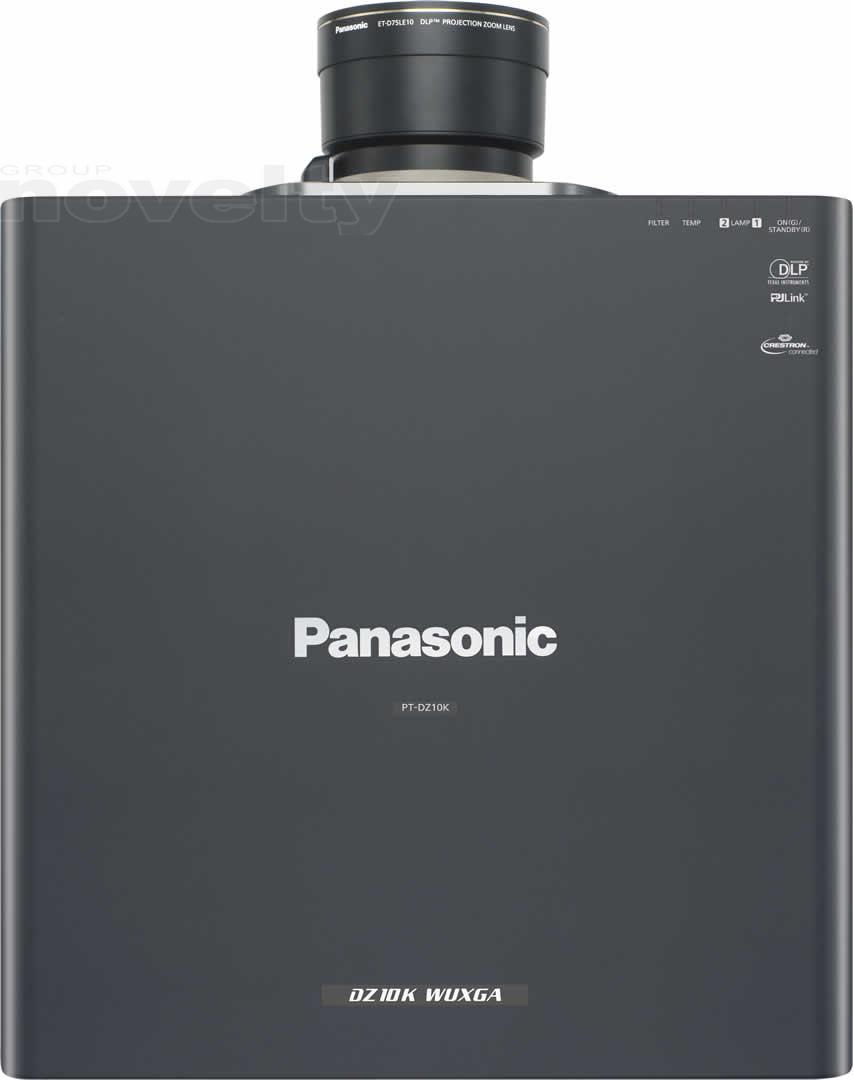

PANASONIC PT-DZ10KE

Descriptions détaillées

DLP™ chip

• Panel size : 24.4 mm (0.96") diagonal, 16:10 aspect ratio
• Display method : DLP™ chip x 3 (R, G, B), DLP™ projection system
• Pixels : 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels

Specifications

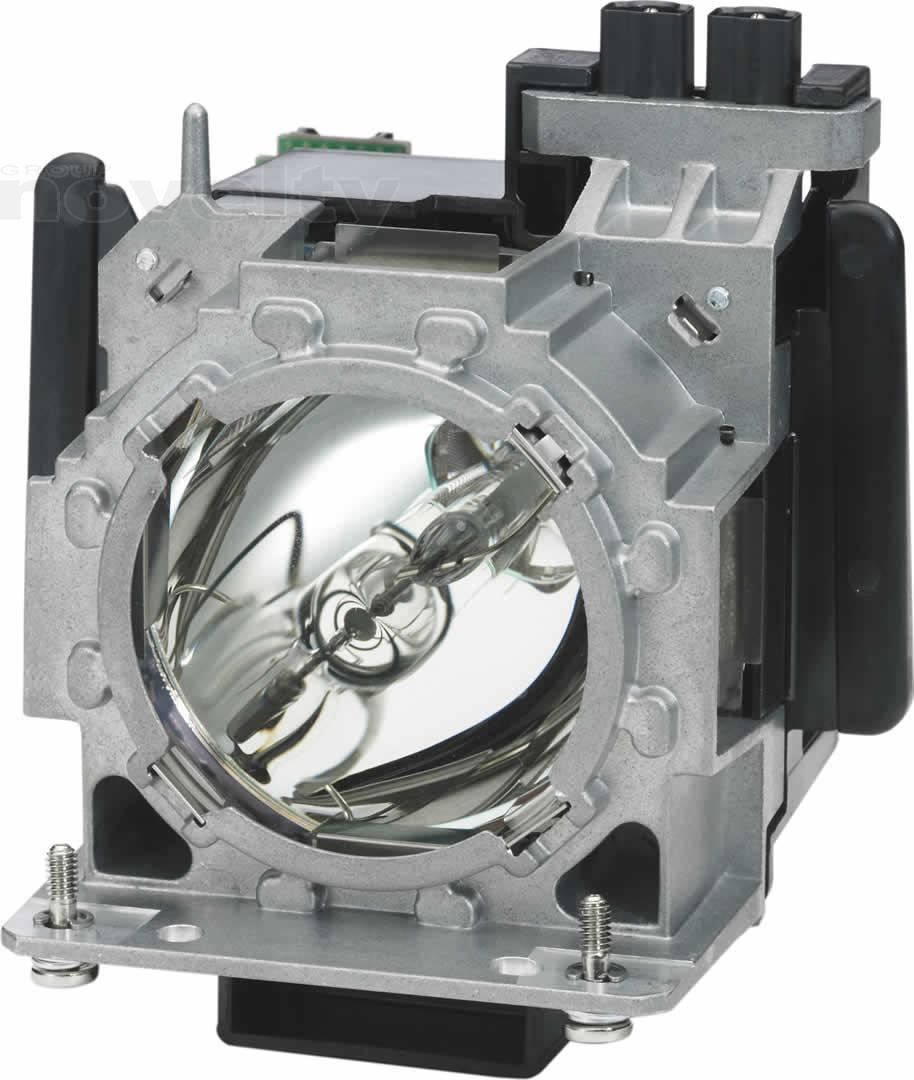

• Lamp : 355 W UHM lamp x 2 (dual lamp system)
• Brightness*1 : 10,600 lumens (dual lamp, high mode)
• Contrast ratio*1 : 10,000:1 (full on/full off, in Dynamic iris mode 3)
• Resolution : 1,920 x 1,200 pixels
• Lens : Optional powered zoom/focus lenses

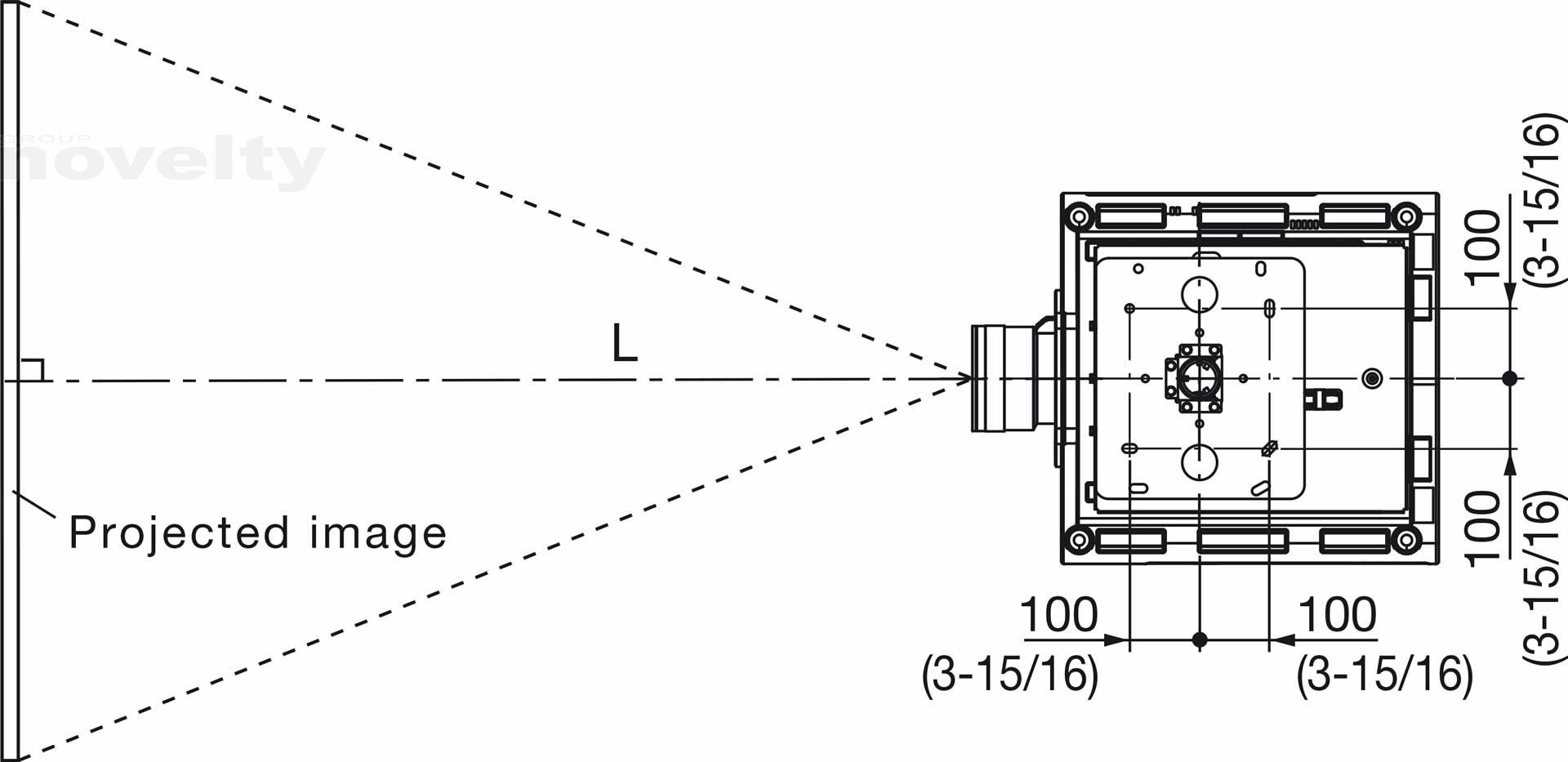

• Screen size : 1.78–25.4 m (70–1,000 inches) (1.78–15.24 m (70–600 inches) with the ET-D75LE8), 16:10 aspect ratio
• Optical axis shift : Vertical: ±55% (±44% with the ET-D75LE6) from center of screen, powered, Horizontal: ±20% (±15% with the ET-D75LE6) from center of screen, powered

Scanning frequency

• SDI :
  • 3G-SDI signal (RGB 4:4:4 12-bit/10-bit): SMPTE ST 424 compliant: 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p
  • 3G-SDI signal (YPBPR 4:2:2 10-bit): SMPTE ST 424 compliant: 1125(1080)/60p, 1125(1080)/50p
  • HD-SDI signal (YPBPR 4:2:2 10-bit): SMPTE ST 292 compliant: 750(720)/60p, 750(720)/50p, 1125(1035)/60i, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p
  • SD-SDI signal (YCBCR 4:2:2 10-bit): SMPTE ST 259 compliant: 525i(480i), 625i(576i)
• HDMI/DVI-D/RGB : Horizontal: 15 -100 kHz, vertical: 24 - 120 Hz, dot clock: 162 MHz or lower
• YPBPR (YCBCR) : 525i (480i)=fH 15.75 kHz; fV 60 Hz / 625i (576i)=fH 15.63 kHz; fV 50 Hz / 525p (480p)=fH 31.50 kHz; fV 60 Hz / 625p (576p)=fH 31.25 kHz; fV 50 Hz, 750 (720)/60p=fH 5.00 kHz; fV 60 Hz : 750 (720)/50p : fH 37.50 kHz; fV 50 Hz / 1035/60i : fH 33.75 kHz; fV 60 Hz / 1125 (1080)/60i : fH 33.75 kHz; fV 60 Hz / 1125 (1080)/50i : fH 28.13 kHz; fV 50 Hz / 1080/25p : fH 28.13 kHz; fV 25 Hz / 1080/24p : fH 27.00 kHz; fV 24 Hz / 1080/24sF : fH 27.00 kHz; fV 48 Hz / 1080/30p : fH 33.75 kHz; fV 30 Hz / 1080/60p : fH 67.50 kHz; fV 60 Hz / 1080/50p : fH 56.25 kHz; fV 50 Hz
• S-Video/Video : Horizontal: 15.75/15.63 kHz, vertical: 50/60 Hz (NTSC, NTSC4.43, PAL, PAL60, PAL-N, PAL-M, SECAM)

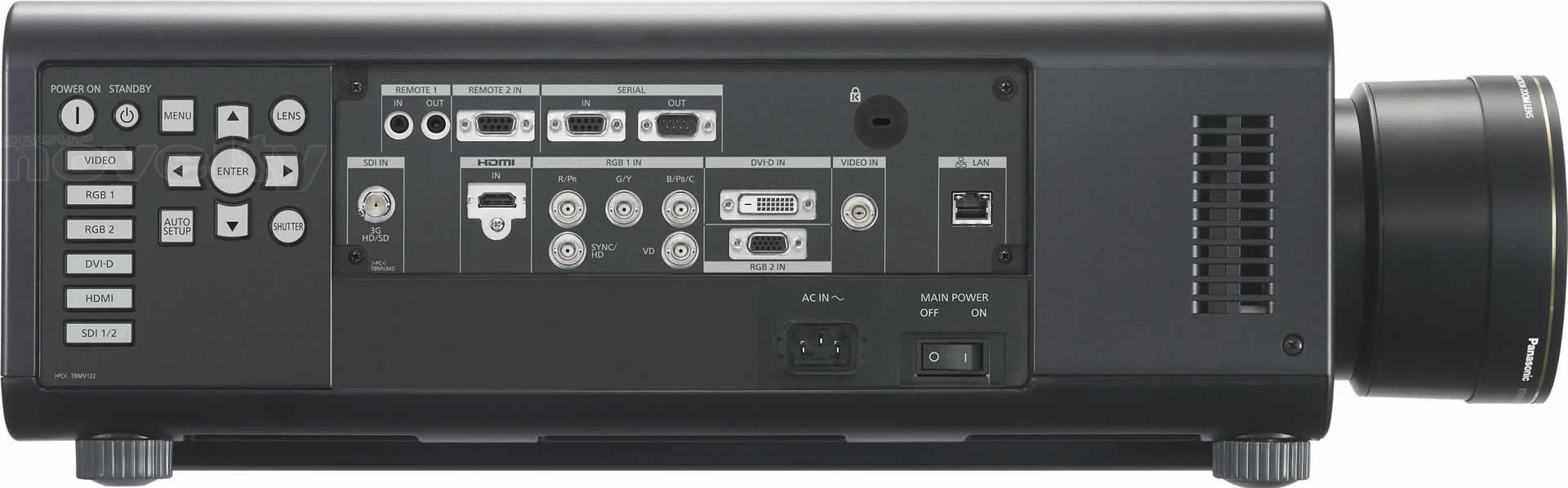

Terminals

• SDI IN : BNC x 1 / 3G-SDI signal: SMPTE ST 424 compliant / HD-SDI signal: SMPTE ST 292 compliant / SD-SDI signal: SMPTE ST 259 compliant
• HDMI IN : HDMI 19-pin x 1 / Deep Color, compatible with HDCP, 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p (non-interlaced signals only), VGA (640 x 480)-WUXGA*3 (1,920 x 1,200), dot clock: 25 -162 MHz
• DVI-D IN : DVI-D 24-pin x 1 / DVI 1.0 compliant, compatible with HDCP, compatible with single link only, 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA*3 (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25 - 162 MHz
• RGB 1 IN : BNC x 5 (RGB/YPBPR/YCBCR x 1)
• RGB 2 IN : D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
• VIDEO IN : BNC x 1 (composite video)
• S-VIDEO IN : Mini DIN 4-pin x 1 (S-Video)
• SERIAL IN : D-sub 9-pin (female) x 1 (for external control, RS-232C compliant)
• SERIAL OUT : D-sub 9-pin (male) x 1 (for link control, RS-232C compliant)
• REMOTE 1 IN : M3 jack x 1 (for wired remote control)
• REMOTE 1 OUT : M3 jack x 1 (for link control)
• REMOTE 2 IN : D-sub 9-pin (female) x 1 (for external control, contact control)
• LAN : RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)

Others

• Keystone correction range : Vertical: ±40° (±22° with the ET-D75LE5, ±28° with the ET-D75LE6)*4, horizontal: ±15° (±10° with the ET-D75LE6)*4

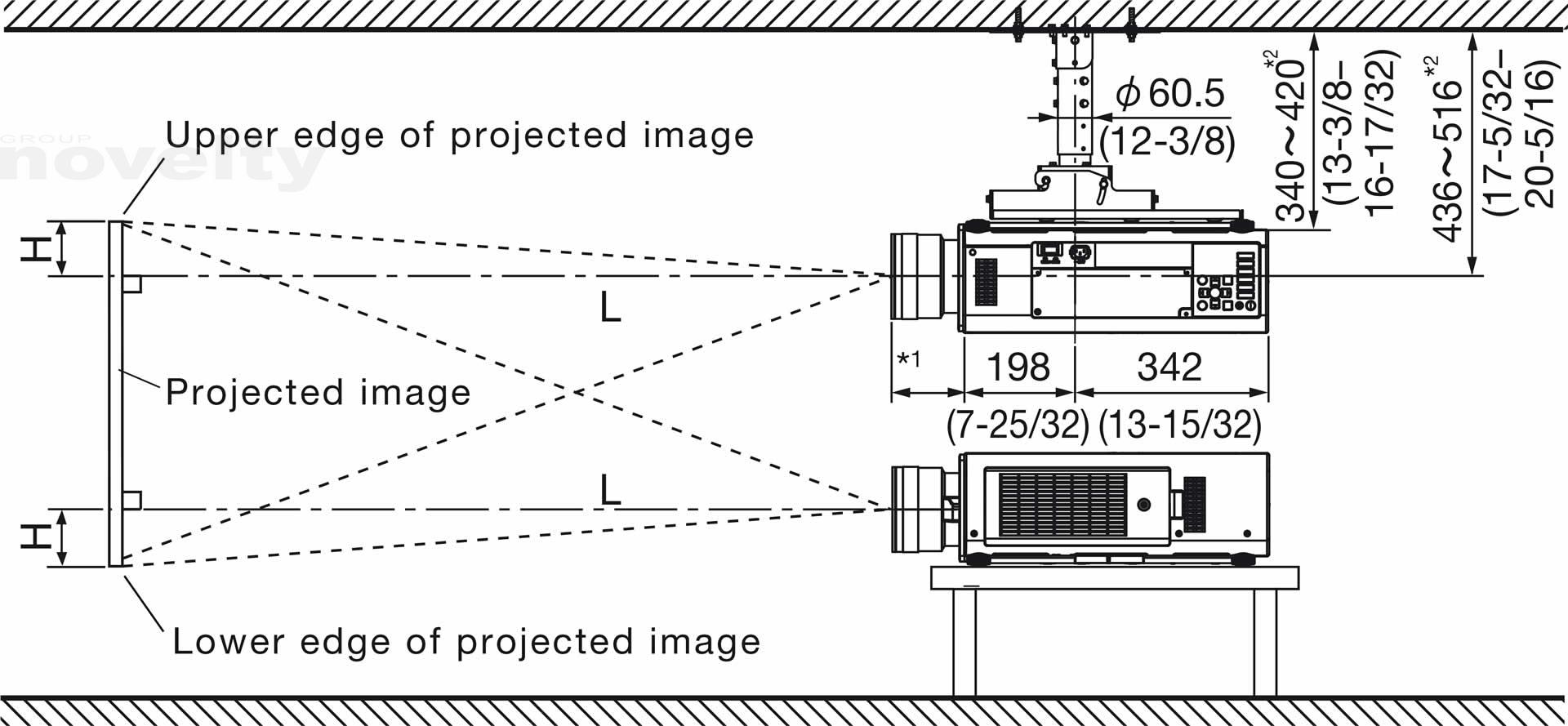

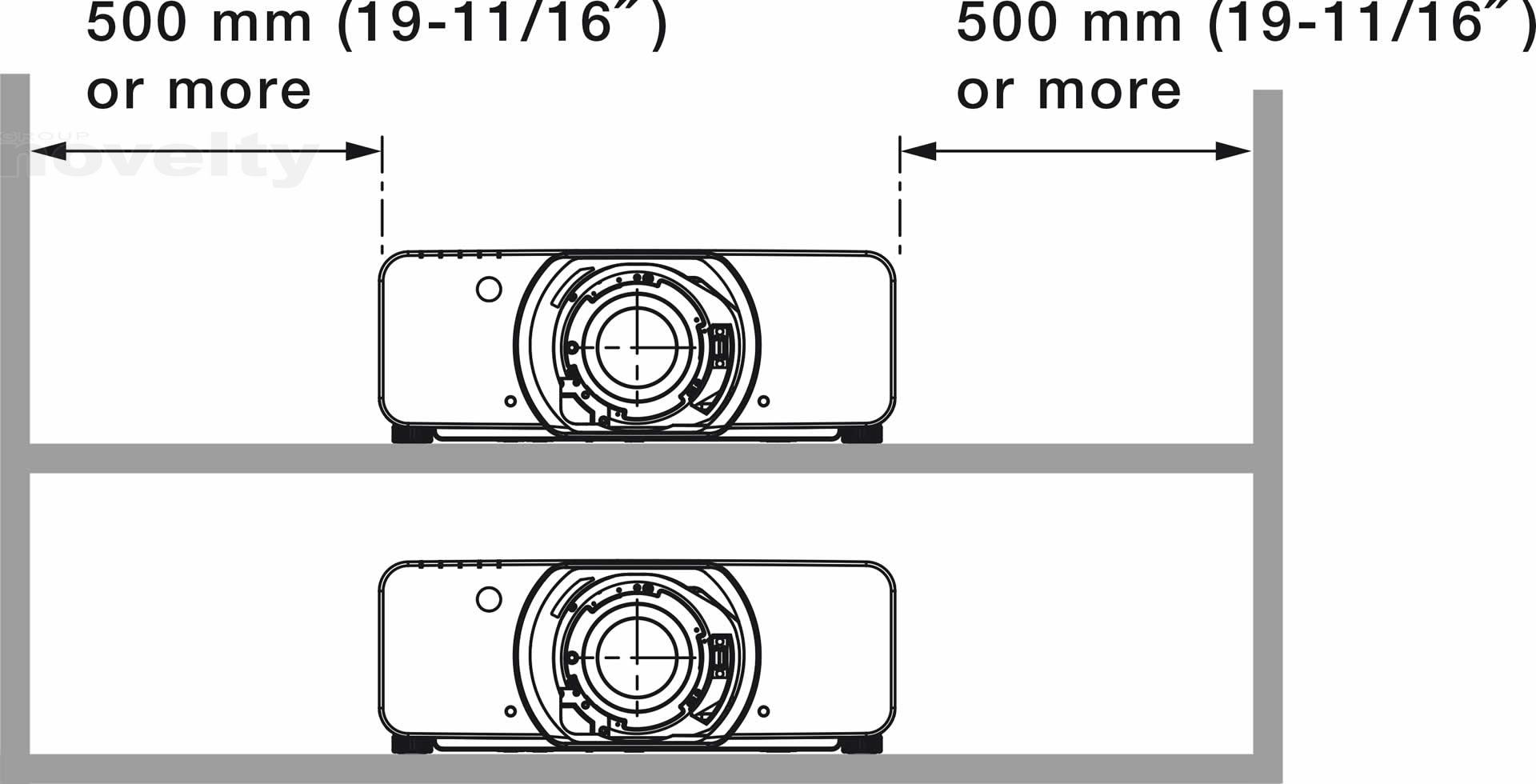

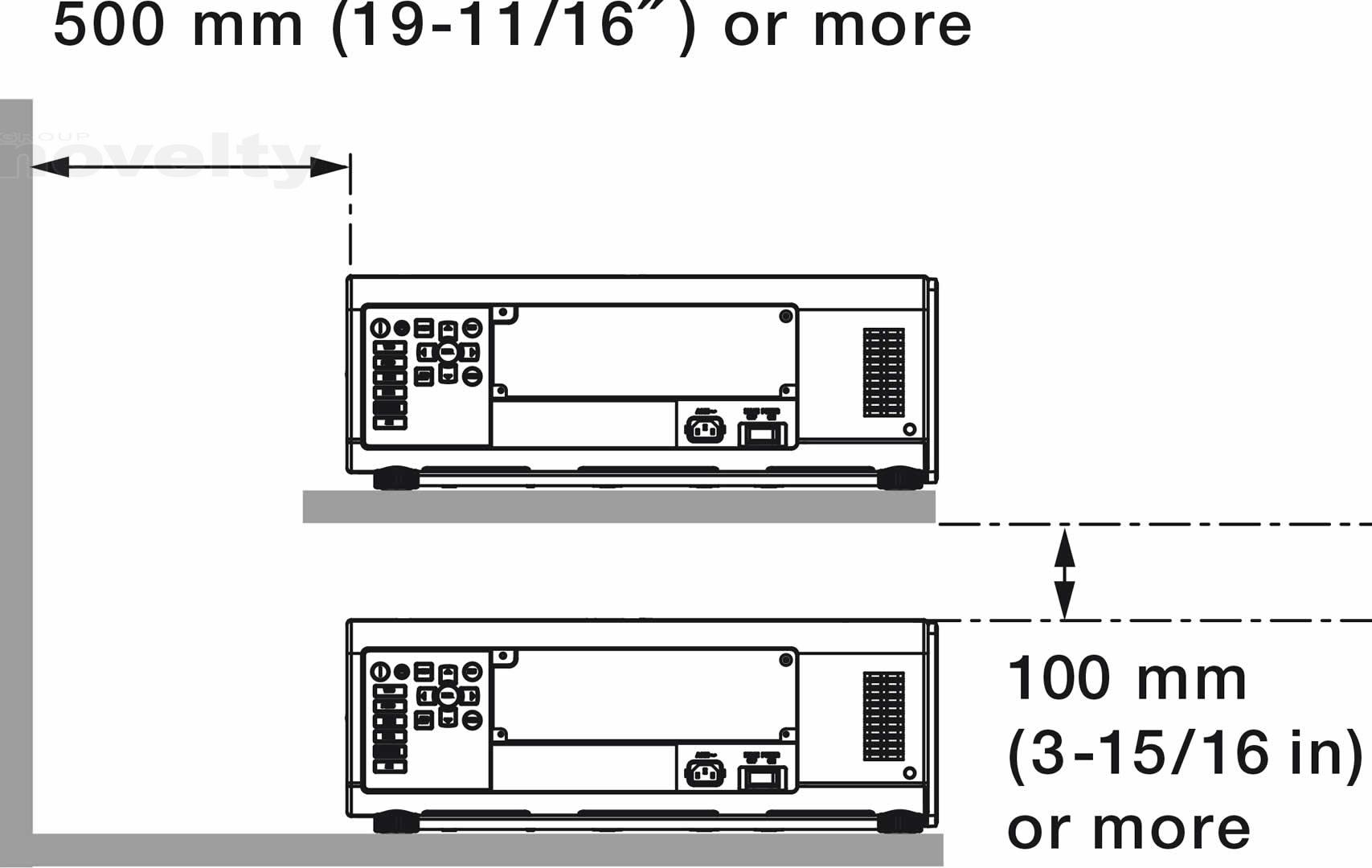

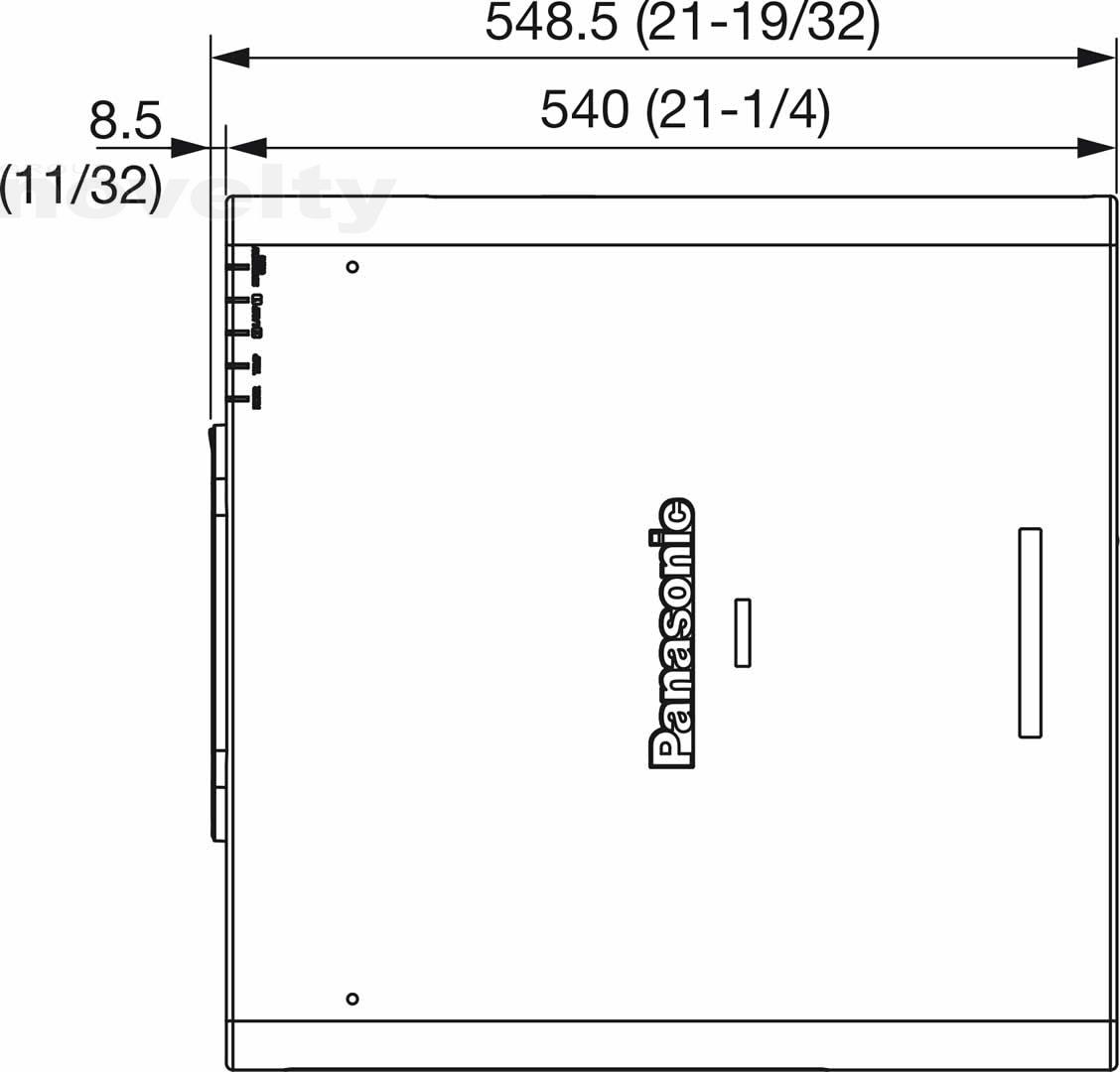

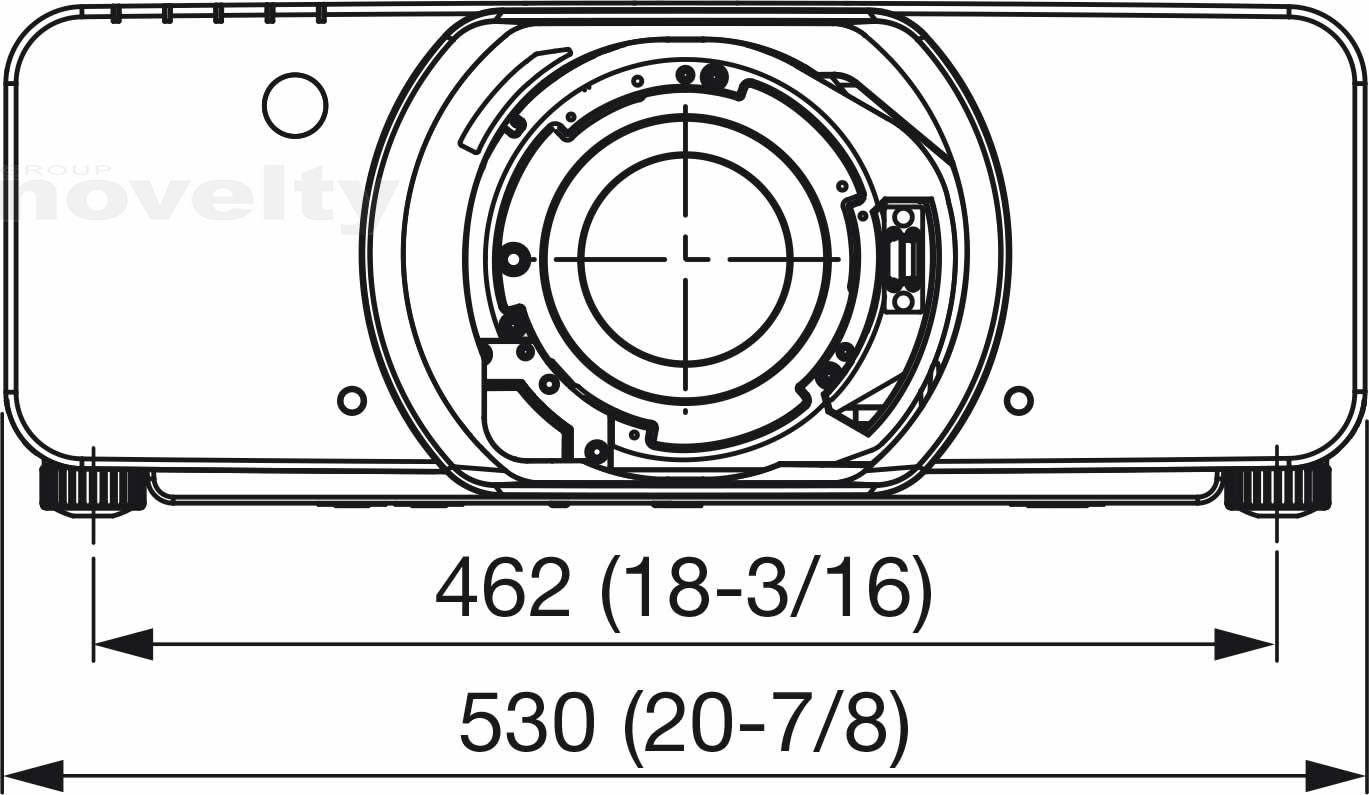

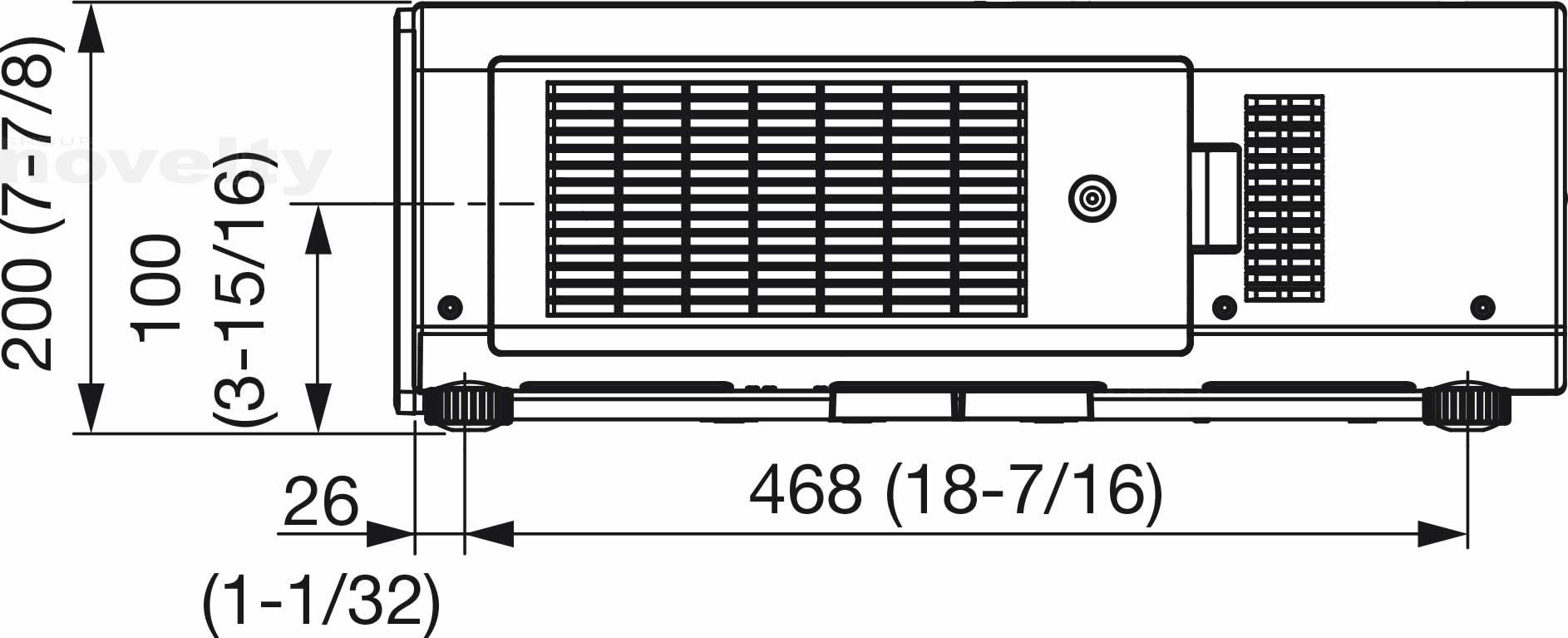

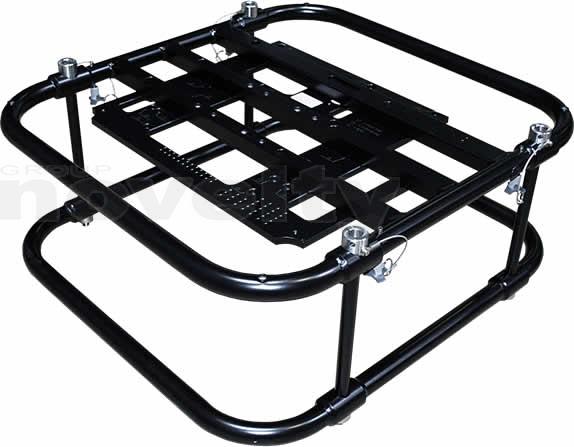

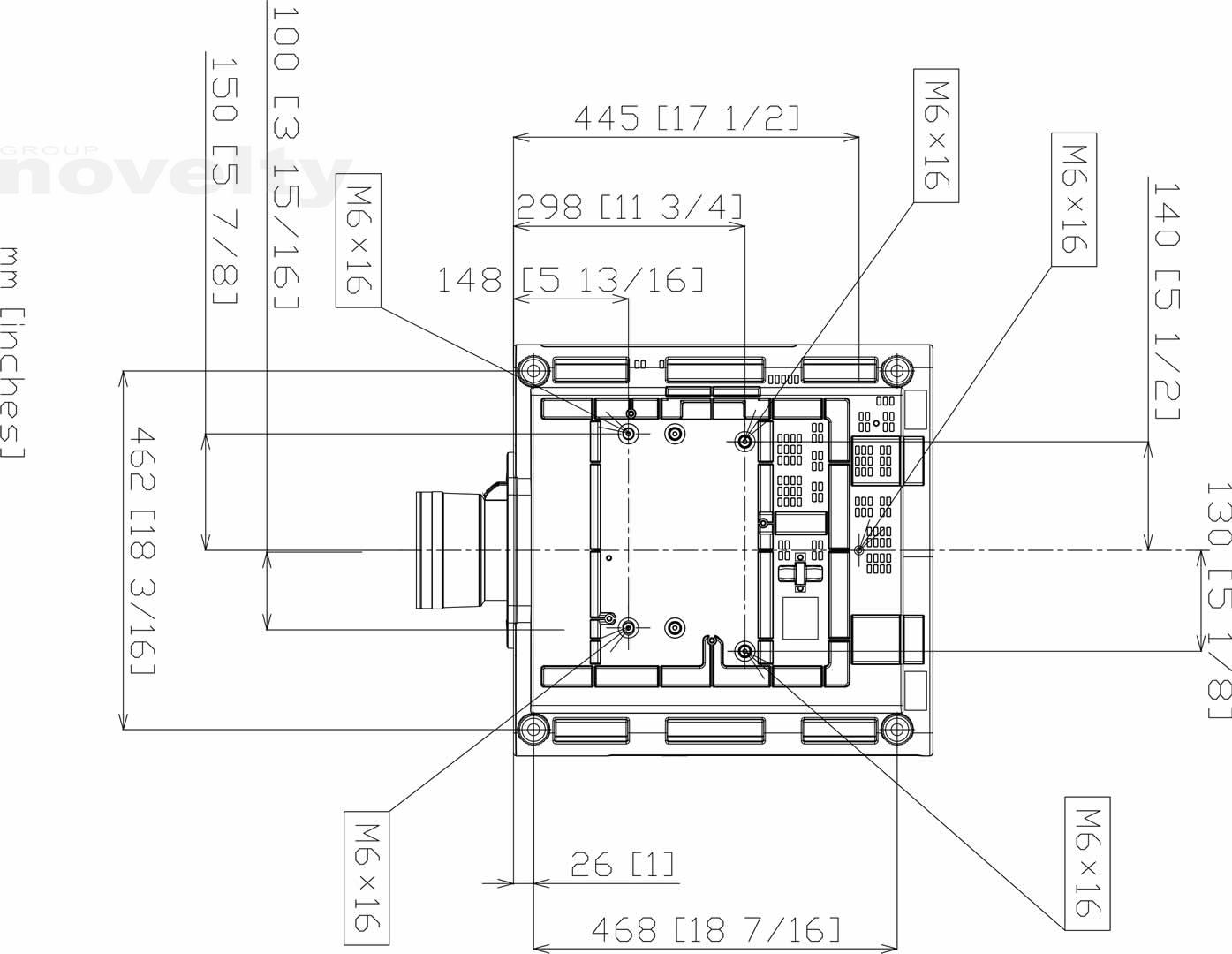

• Installation : Ceiling/floor, front/rear
• Power cord length : 3.0 m (9 ft 10 in)
• Power supply : 220-240 V AC, 5.0 A, 50/60 Hz
• Power consumption : 900 W (980 VA) (0.3 W with standby mode set to eco.*1 9 W with standby mode set to normal. Both with fan stopped.)
• Operating temperature : 0°C-45°C (32°F-113°F)
• Operating humidity : 10%-80% (no condensation)

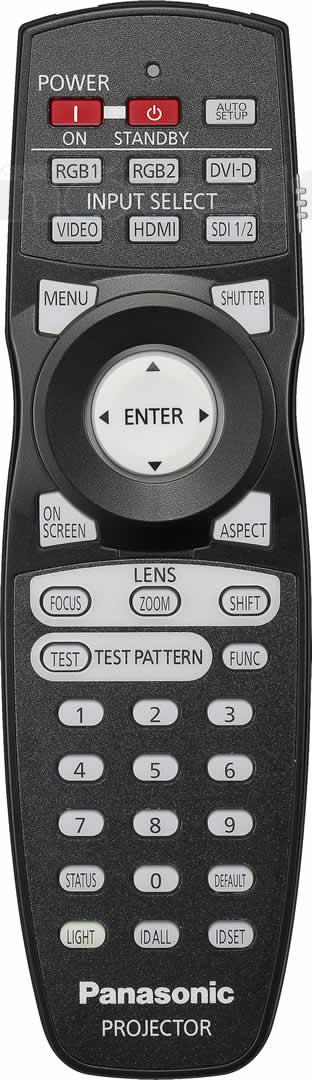

• Supplied accessories : Power cord with security lock, wireless/wired remote control unit, batteries for remote control (AA type for North America, R6/LR6 type for Europe and Asia)x 2, safety wire rope

*1: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

*2: 1.78-7.62 m (70-300 inches) with the ET-D75LE5.

*3: WUXGA resolution is supported only when the signals are compliant with VESA CV T-RB (Coordinated Video Timing-Reduced Blanking).

*4: When using only the KEYSTONE correction. When using both the KEYSTONE and ARC corrections of the Geometric Adjustment function: vertical ±5°, horizontal ±5° (vertical ±10° and horizontal ±15° with the ET-D75LE4/D75LE8).

*5: With the standby mode set to ECO. When the standby mode is set to ECO, network functions such as power on over the LAN network will not operate, and the serial output terminal cannot be used. Also, only cer tain commands can be received for external control using the serial terminal.

*6:The operating temperature range is 0°C (32°F) to 40°C (104°F) when used in High-Altitude mode (1,400 m (4,593 ft) to 2,700 m (8,858 ft)).
