AJA Ki Pro Ultra 12G

Descriptions détaillées

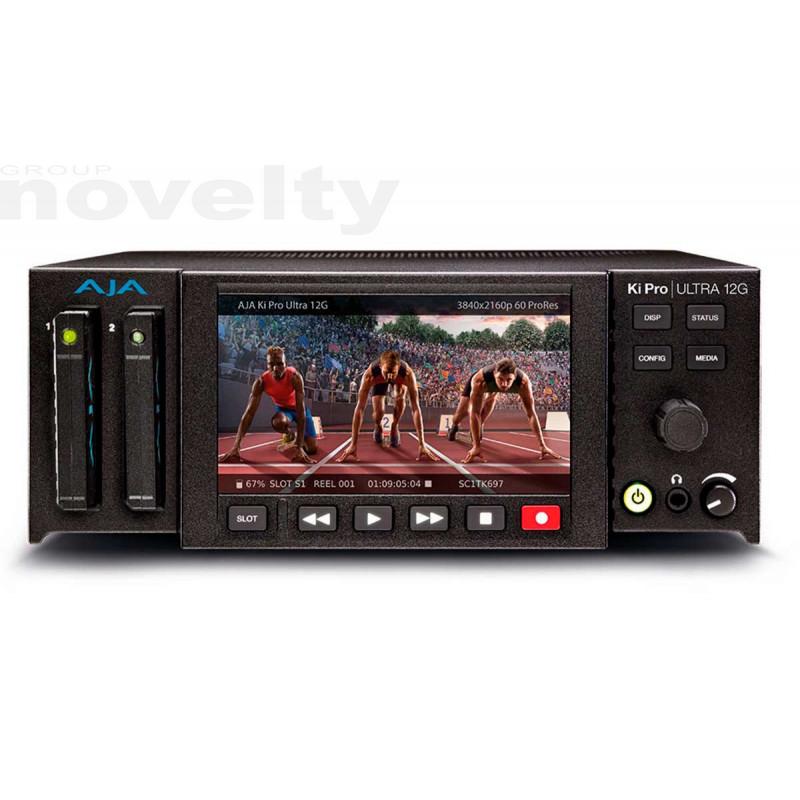

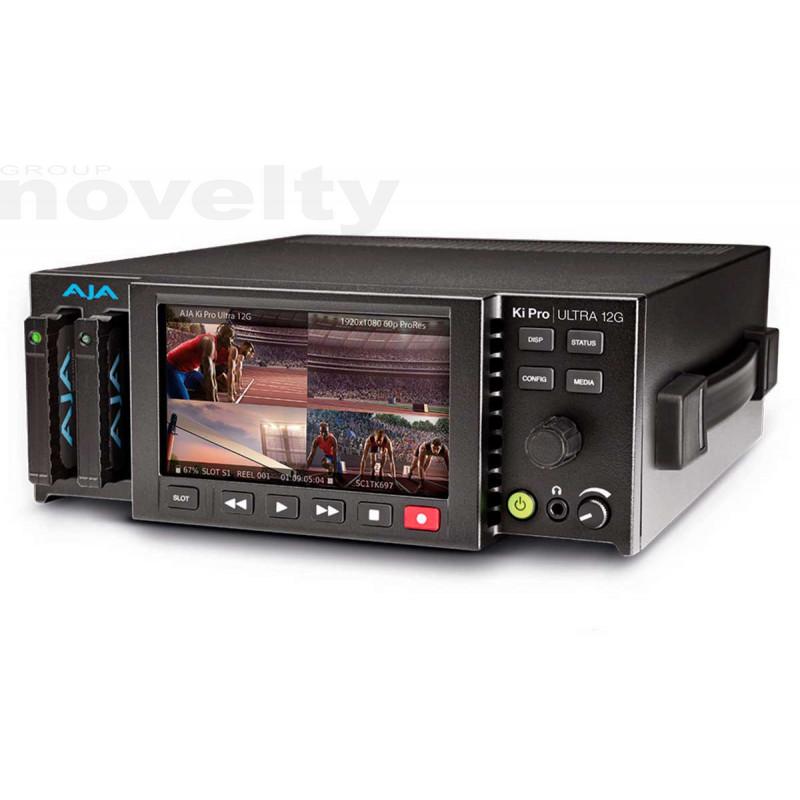

Ki Pro Ultra 12G is a multi-channel Apple ProRes® recorder offering up to 4-Channels of simultaneous HD recording, or in Single-Channel mode, a 4K/UltraHD/2K/HD Apple ProRes or Avid DNxHR® recorder and player. Avid DNxHD® MXF is also supported up to HD formats in Single-Channel mode.

Ki Pro Ultra 12G offers 12G-SDI single cable simplicity for large rasters up to full 4K, (the 4x 3G-SDI inputs/outputs can be used for Quad Link operations as required) and HDMI 2.0 digital video connectivity with HDR support for both recording and playback.

A wealth of analog and digital audio connectivity answers any project’s demand for efficient, powerful and flexible workflows. For distance and remote needs, 12G and 3G Fiber SFP+ options are available. New v2.0 firmware adds the ability to record genlock free sources with frame sync support on inputs.

Designed to be either portable or rackmountable with half rack wide, 2RU high dimensions, Ki Pro Ultra 12G is well suited for use in any environment.


Specifications

Video Formats

• Single Channel Mode :
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97*
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97*
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080i 25, 29.97, 30
  • (HD) 1080PsF 23.98, 24, 25**, 29.97**
  • (HD) 720p 50, 59.94, 60
• Multi-Channel Mode :
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080i 25, 29.97, 30
  • (HD) 1080PsF 23.98, 24, 25**, 29.97**
  • (HD) 720p 50, 59.94, 60

*Only 4x 1.5G-SDI, 10-bit 4:2:2 YCbCr, Square Division
**25 and 29.97 requires Record Type>PsF selection

Codec Support

• Single Channel Mode :
  • Apple ProRes 4444 XQ, up to 2K/60 fps
  • Apple ProRes 4444, up to 30 fps
  • Apple ProRes 422 (HQ)
  • Apple ProRes 422Apple ProRes 422 (LT)
  • Apple ProRes 422 (Proxy)
  • Avid DNxHD HQX (220x)*
  • Avid DNxHD SQ (145)*
  • Avid DNxHD LB (36)**
  • Avid DNxHR HQX up to 4K/29.97 fps
  • Avid DNxHR SQ up to 4K/29.97 fps
  • Avid DNxHR LB up to 4K/29.97 fps
• Multi-Channel Mode :
  • Apple ProRes 4444, up to 30 fps
  • Apple ProRes 422 (HQ)
  • Apple ProRes 422
  • Apple ProRes 422 (LT)
  • Apple ProRes 422 (Proxy)

*Avid DNxHD only supported for 1080 and 720 resolutions
**Avid DNxHD 36 only supported for 1080p

Codec Container

• Apple ProRes .MOV
• AVID DNX .MXF or .MOV

Removable Storage

• 2x slots, AJA SSD media PAK2000, PAK1000, PAK512, PAK256

File System Support

• HFS+, exFAT

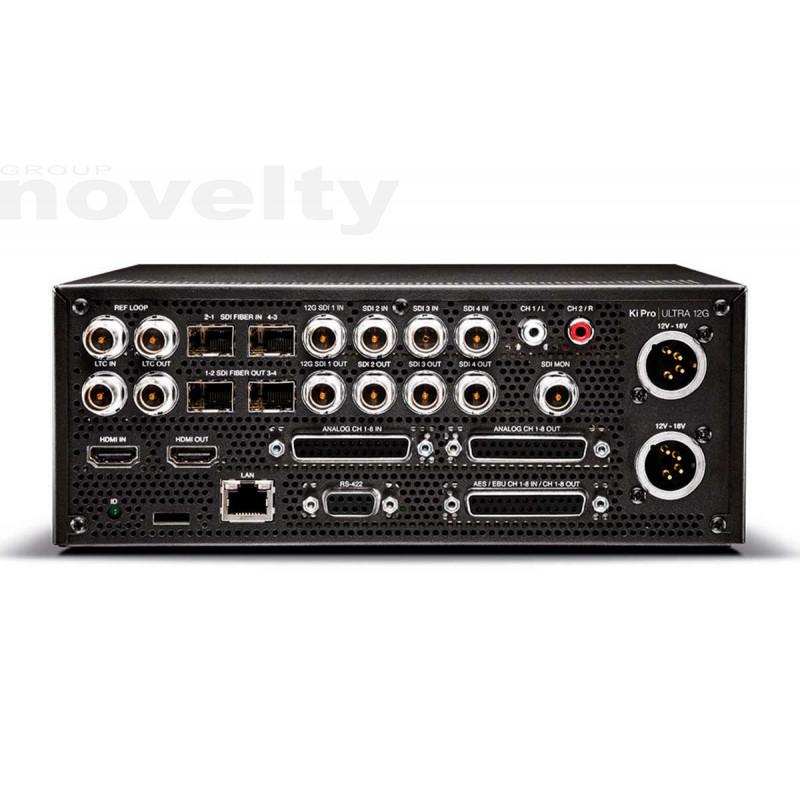

Video Input Digital

• 1x 12G-SDI, SMPTE-292/372/424/2081/2082
• 3x 3G-SDI, SMPTE-292/372/424
• 1x Fiber or HD-BNC 12G-SDI, SMPTE-297 (optional SFP modules)
• 3x Fiber or HD-BNC, 3G-SDI, SMPTE-297 (optional SFP modules)
• 4K/UltraHD 4:2:2 10bit & 4:4:4 10/12bit (BNC or Fiber)
• Dual Link 4:2:2 10bit & 4:4:4 10/12bit (BNC or Fiber)
• Single Link 4:2:2 10bit & 4:4:4 10/12bit (BNC or Fiber)
• 1x HDMI standard type A connector
• HDMI v2.0
  • 4:4:4 RGB 8/10/12-bit (deep color)
  • 4:2:2 YCbCr 8/10/12-bit
  • 4:2:0 YCbCr 8-bit

Video Output Digital

• 1x 12G-SDI, SMPTE-292/372/424/2081/2082
• 3x 3G-SDI, SMPTE-292/372/424
• 1x Fiber or HD-BNC 12G-SDI, SMPTE-297 (optional SFP modules)
• 3x Fiber or HD-BNC, 3G-SDI, SMPTE-297 (optional SFP modules)
• 4K/UltraHD 4:2:2 10bit & 4:4:4 10/12bit (BNC or Fiber)
• Dual Link 4:2:2 10bit & 4:4:4 10/12bit (BNC or Fiber)
• Single Link 4:2:2 10bit & 4:4:4 10/12bit (BNC or Fiber)
• 1x HDMI standard type A connector
• HDMI v2.0
  • 4:4:4 RGB 8/10/12-bit (deep color)
  • 4:2:2 YCbCr 8/10/12-bit
  • 4:2:0 YCbCr 8-bit

Audio Input Digital

• 16-channel, 24-bit SDI/Fiber embedded audio, 48 kHz sample rate, synchronous
• 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
• 8-channel, AES/EBU via (1x DB-25 TASCAM pinout)

Audio Input Analog

• 8-channel, mappable, 24-bit A/D analog audio, 48 kHz sample rate (1x DB-25 TASCAM Pinout)
• +24 dBu full scale digital
• +/- 0.2 dB 20 Hz to 20 kHz frequency response

Audio Output Digital

• 16-channel, 24-bit SDI/Fiber embedded audio, 48 kHz sample rate, synchronous
• 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
• 8-channel, AES/EBU via (1x DB-25 TASCAM pinout)

Audio Output Analog

• Stereo unbalanced headphone jack (1x 3.5mm jack) with volume control
• 8-channel, 24-bit D/A analog audio, 48 kHz sample rate (1x DB-25 TASCAM pinout)
• 2-channel unbalanced 2x RCA connectors

Recording Mode

• Multi-channel HD Apple ProRes recording (PAK2000, PAK1000, PAK512 (R1/X2 and above), PAK256 (R1/X2 and above))
• Single channel 4K/UltraHD/2K/HD recording

Playback Mode

• One channel of 4K/UltraHD/2K/HD at a time

Timecode

• SDI RP188/SMPTE 12M via SDI BNC
• LTC input (1x BNC)
• LTC output (1x BNC)
• TC Super Out

Reference Input

• External, 2x BNC
• Looping, nonterminating
• Blackburst or tri-level sync
  • 720p 59.94
  • 720p 50
  • 1080i 59.94
  • 1080i 50
  • 1080p 23.98
  • 1080PsF 23.98
  • 1080p 24
  • 1080PsF 24
  • 1080p 25
  • 1080PsF 25
  • 1080p 29.97
  • 1080PsF 29.97
• (SD) Analog composite
  • 525i 59.94
  • 625i 50

Network Interface

• 1x LAN connector (RJ-45 connector, 10/100/1000)
• Embedded web server for remote control
• Configuration and Transport Control via Web Interface
• Video Confidence Monitor via Web Interface
• Clip upload/download via Web Interface in DATA-LAN mode
• Remote control via REST

Machine Control

• RS-422, 1x DB-9 female connector, Sony 9-pin protocol
• 9-pin D-connector pinout is as follows :
  • 1 : GND
  • 2 : TX-
  • 3 : RX+
  • 4 : GND
  • 5 : No Connection
  • 6 : GND
  • 7 : TX+
  • 8 : RX-
  • 9 : GND
  • Shell : GND

User Interface

• Rotary selector knob
• Dedicated, backlit transport controls and menu buttons
• Large 1280x720 TFT LCD display with Video Monitor and Menu/Status Overlays

Closed Captioning Support

• CEA-708, CEA-608

Size (w x d x h)

• 8.64" x 10.59" x 3.31" (219.46 x 268.9 x 84.08 mm)

Weight

• 5.6 lbs (2.6 kg)

Power

• Dual, redundant, 5.4A max, 35W-60W typical-65W Max
  • 100-240 VAC 50/60 Hz (adapter)
  • 12-18Vdc 4-pin XLR (chassis)

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
